NSN 4730-01-364-1546 34021G06, 7D0030W06, 01-364-1546
Product Details | TUBE COUPLING
4730-01-364-1546 A straight fitting 12 inches (304 mm) long or under having the same or different type of connection of the same size on both ends. It is designed to join a tube or tube fitting to another tube or tube fitting. Excludes fittings with threaded external connections on both ends. Excludes NIPPLE, PIPE.
Part Alternates: 34021G06, 7D0030W06, 4730-01-364-1546, 01-364-1546, 4730013641546, 013641546
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 12 SEP 1992 | 01-364-1546 | 06078 ( COUPLING, TUBE ) |
Drawings & Photos | NSN 4730-01-364-1546
Demand History | NSN 4730-01-364-1546
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-364-1546 | 2014-10-281 | 19 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-364-1546
Related Products | NSN 4730-01-364-1546
Technical Data | NSN 4730-01-364-1546
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 7075 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/9 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | AIR SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 450.0 DEG FAHRENHEIT SINGLE RESPONSE |

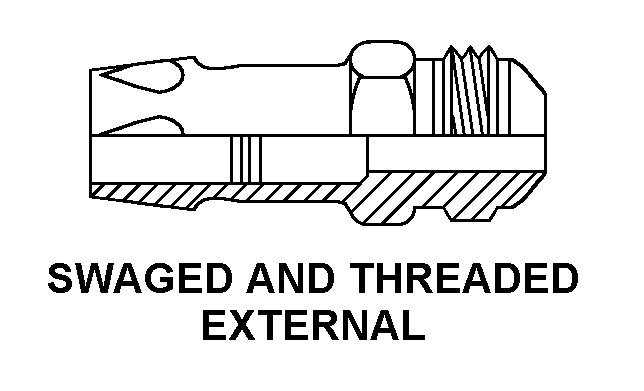

| STYLE DESIGNATOR | A32 SWAGED AND THREADED EXTERNAL |
| CONNECTION TYPE | UNTHREADED INTERNAL TUBE 1ST END THREADED EXTERNAL TUBE 2ND END |
| CONNECTION STYLE | B48 SWAGED W/GROOVES 1ST END B64 FLARED 2ND END |
| SEAT ANGLE | 37.0 DEGREES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJF 2ND END |
| NOMINAL THREAD SIZE | 0.562 INCHES 2ND END |
| THREAD CLASS | 3A 2ND END |
| NOMINAL OVERALL LENGTH | 1.096 INCHES |
| III END ITEM IDENTIFICATION | USED ON C-17A ACFT |
