NSN 4730-01-362-1694 412533L2424CR, 412533L24-24CR, 01-362-1694
Product Details | FLANGE TO HOSE ELBOW
4730-01-362-1694 A fitting that forms an angle of less than 180 degrees (3.141 radians) from the straight flow. It has a flange connection on one end designed to connect with another flange connection, or a compression type mounting pad. The other end has standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed toaccommodate a hose. It may have side and/or heel inlet(s).
Part Alternates: 412533L2424CR, 412533L24-24CR, 4730-01-362-1694, 01-362-1694, 4730013621694, 013621694
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 AUG 1992 | 01-362-1694 | 29666 ( ELBOW, FLANGE TO HOSE ) |

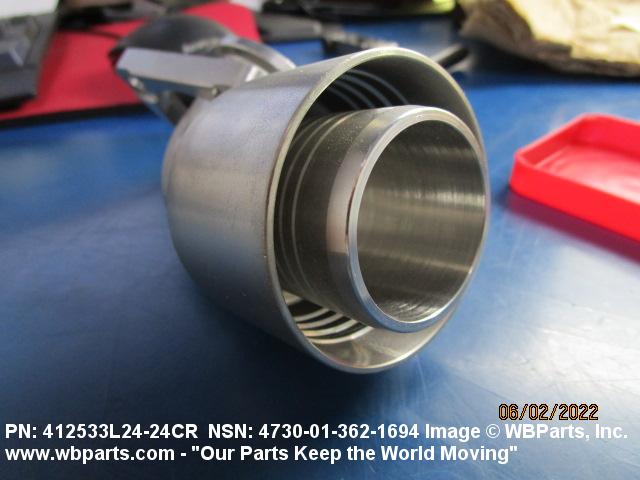

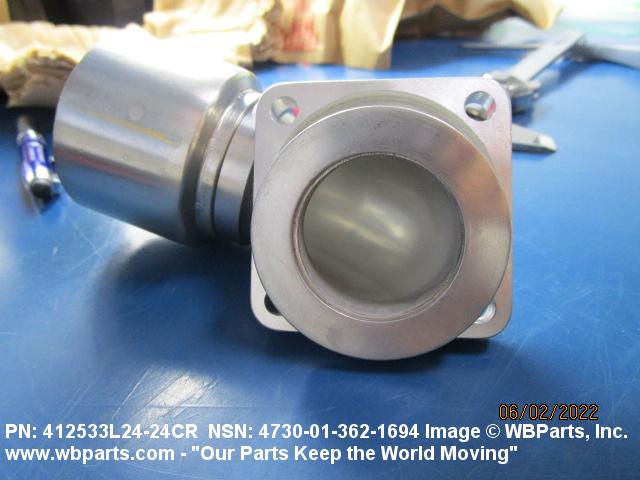

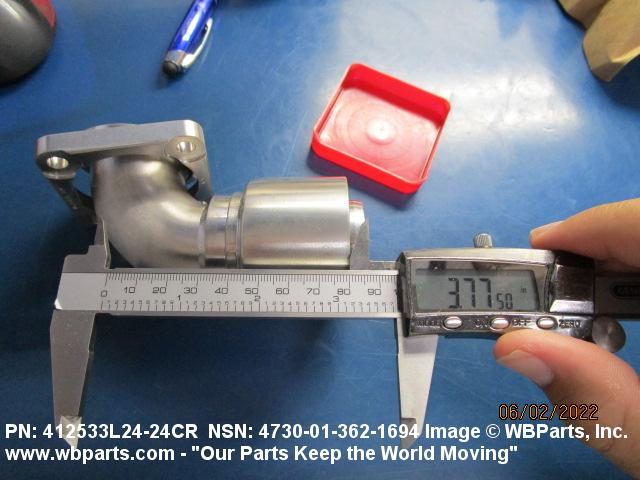

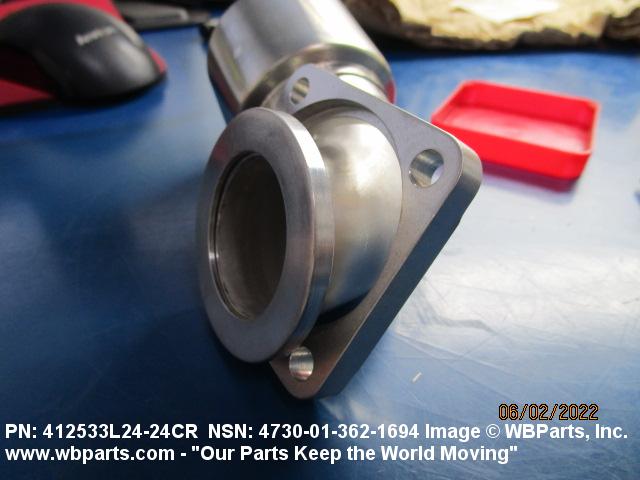

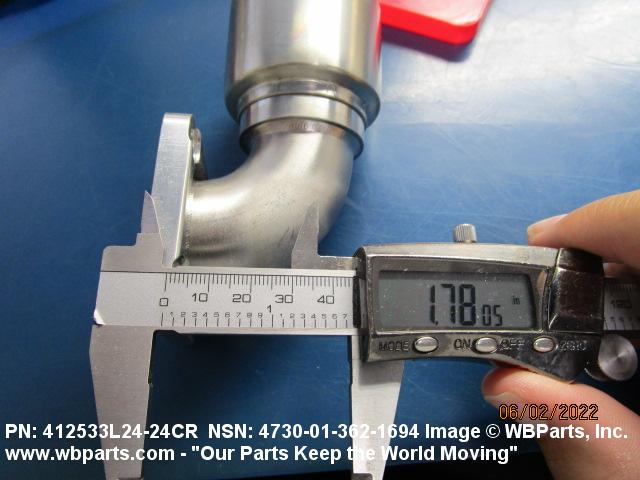

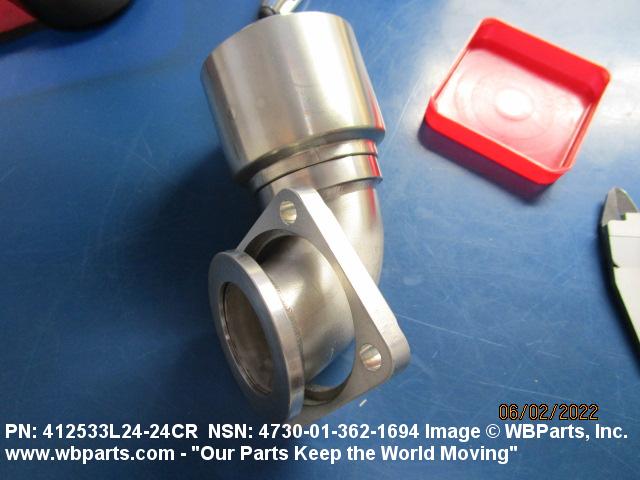

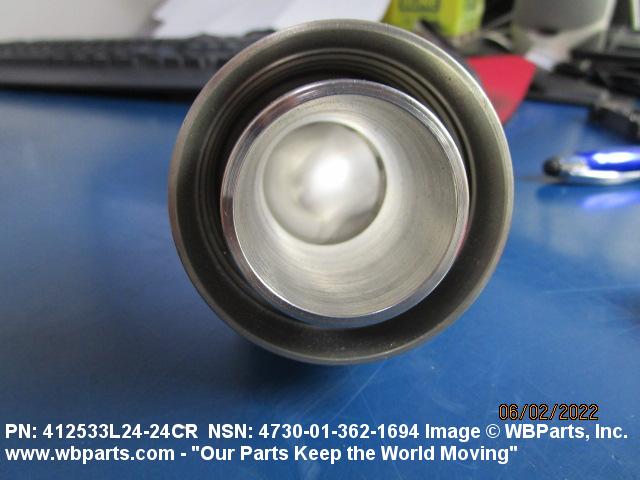

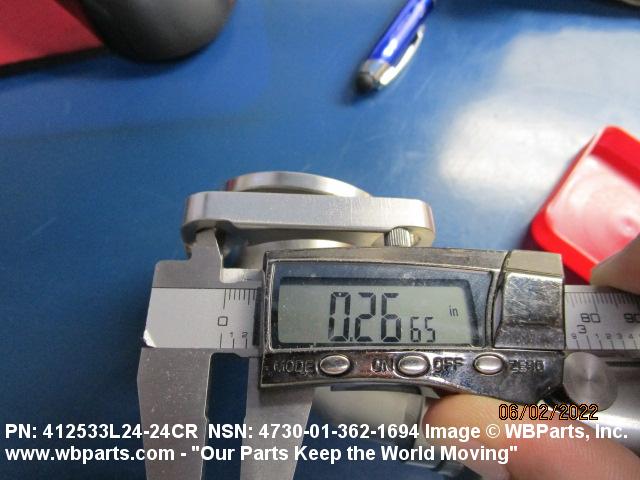

Drawings & Photos | NSN 4730-01-362-1694
Demand History | NSN 4730-01-362-1694
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 412533L24-24CR | 2024-10-298 | 6 | DIBBS |
| 412533L24-24CR | 2024-04-95 | 3 | DIBBS |
| 4730-01-362-1694 | 2024-03-80 | 1 | DIBBS |
| 4730-01-362-1694 | 2024-03-80 | 2 | DIBBS |
| 013621694 | 2024-03-71 | 90 | United States |
| 412533L24-24CR | 2024-03-65 | 1 | DIBBS |
| 412533L24-24CR | 2022-06-172 | 1 | DIBBS |
| 412533L24-24CR | 2022-06-159 | 1 | DIBBS |
| 4730-01-362-1694 | 2022-05-133 | 2 | United States |
| 412533L24-24CR | 2022-04-118 | 4 | DIBBS |
| 412533L24-24CR | 2022-04-107 | 4 | DIBBS |
| 4730-01-362-1694 | 2017-03-87 | 1 | DIBBS |
| 4730-01-362-1694 | 2016-03-70 | 1 | DIBBS |
Cross Reference | NSN 4730-01-362-1694
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 412533L24-24CR | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
