NSN 4730-01-355-0516 1234645270, 123-4645270, 123-4645270 ITEM 12
Product Details | FLUID PASSAGE BOLT
4730-01-355-0516 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 1234645270, 123-4645270, 123-4645270 ITEM 12, 1234645270ITEM12, 4730-01-355-0516, 01-355-0516, 4730013550516, 013550516
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 11 MAR 1992 | 01-355-0516 | 18683 ( BOLT, FLUID PASSAGE ) |

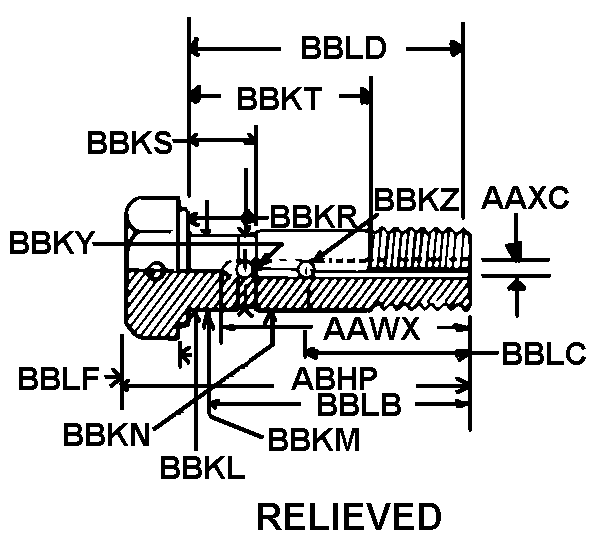

Drawings & Photos | NSN 4730-01-355-0516
