NSN 4730-01-353-3222 AS198606, AS1986-06, SP76006

Product Details | TUBE TO BOSS STRAIGHT ADAPTER

4730-01-353-3222 An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. It is designed to join a tube or tube fitting to a boss or boss fitting in a straight line on items such as tanks, housings, valve fittings, and the like. See also COUPLING, TUBE and NIPPLE, TUBE.

Part Alternates: AS198606, AS1986-06, SP76006, SP760-06 , 07370438006, 073-70438-006, 4730-01-353-3222, 01-353-3222, 4730013533222, 013533222

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	09 FEB 1992	01-353-3222	22675 ( ADAPTER, STRAIGHT, TUBE TO BOSS )

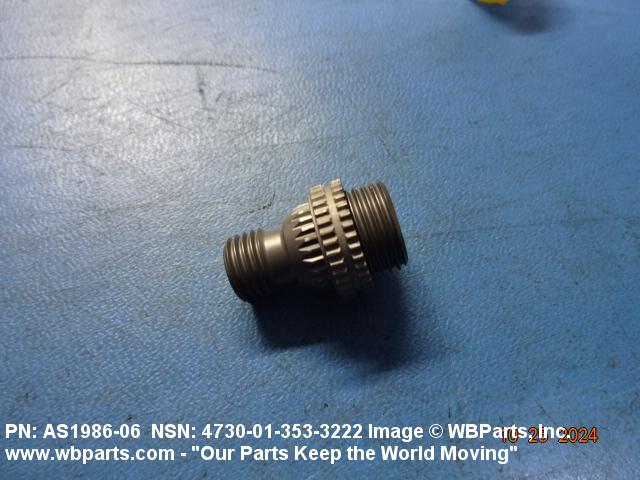

Drawings & Photos | NSN 4730-01-353-3222

Part Number	Request Date	QTY	Origin
AS198606	2024-11-324	1	United States
4730-01-353-3222	2024-10-289	6	United States
AS198606	2023-11-306	12	United States
AS198606	2023-06-153	50	US
AS198606	2021-06-181	50	US
AS198606	2020-10-280	30	US
4730-01-353-3222	2018-07-205	41	DIBBS
AS198606	2017-11-319	50	KR
AS198606	2017-09-244	4	United States
AS198606	2014-06-157	50	AT
AS198606	2014-03-90	30	US
AS198606	2014-03-64	2	US
4730-01-353-3222	2013-08-219	4	US
AS1986-06	2012-06-158	4
AS1986-06	2012-05-126	4
AS198606	2011-09-244	18	United States
AS198606	2009-08-230	4	United States
AS198606	2009-07-197	10	United States
AS198606	2009-02-56	150	US
AS198606	2008-12-336	10	United States

Cross Reference | NSN 4730-01-353-3222

Part Number	Cage Code	Manufacturer
073-70438-006	94697	MOOG, INC.
AS1986-06	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
SP760-06	99643	EATON CORPORATION DBA EATON AEROSPACE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-353-3222

Compare

Related Products | NSN 4730-01-353-3222

4730-01-353-3223, 4730-01-353-3740, 4730-01-353-3741, 4730-01-353-3892, 4730-01-353-3901

Technical Data | NSN 4730-01-353-3222

Characteristic	Specifications
MATERIAL	TITANIUM OVERALL
III FSC APPLICATION DATA	PACER DAWN
MANUFACTURERS CODE	81343
DESIGN CONTROL REFERENCE	AS1986-06

Restrictions/Controls & Freight Information | NSN 4730-01-353-3222

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	051420	CONDUITS,O/T EARTHEN:PIPE FITTINGS
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	736	unknown
Originating Activity Code	TD	Aerospace Integration Corp 5555 John Givens Rd. Crestview, FL 32539-7019
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-01-353-3222

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
