NSN 4730-01-353-2896 M24135/1A-2000-32, M241351A200032, CMC455023232
Product Details | TUBE TO HOSE STRAIGHT ADAPTER
4730-01-353-2896 An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed to accommodate a hose. It is designed to join a tube or tube fitting to a hose or hose fitting.
Part Alternates: M24135/1A-2000-32, M241351A200032, CMC455023232, CMC-4-5502-32-32, MILF24787, MIL-F-24787, MIL-F-24787/2 GRI TYA, MILF247872GRITYA, MILH24135, MIL-H-24135, 302333232B6, 30233-32-32B6, 4472132, 4-4721-32, 4730-01-353-2896, 01-353-2896, 4730013532896, 013532896
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 08 FEB 1992 | 01-353-2896 | 03777 ( ADAPTER, STRAIGHT, TUBE TO HOSE ) |

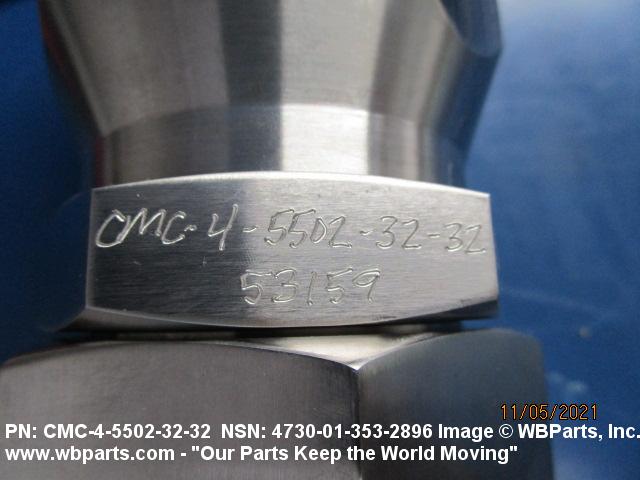

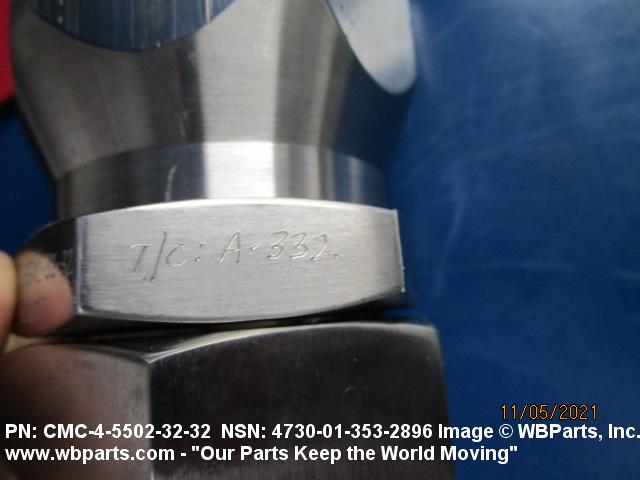

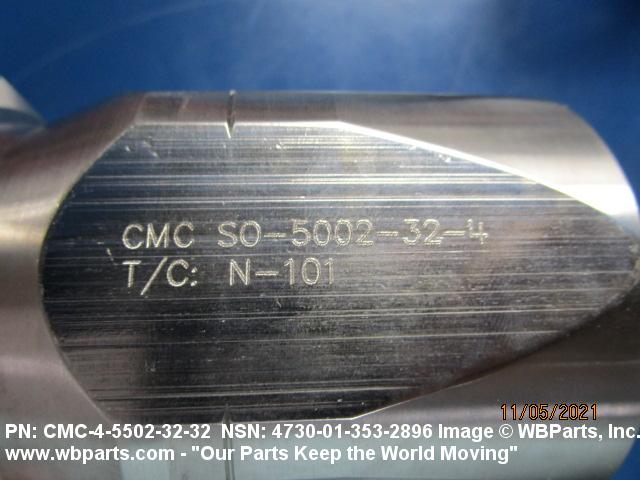

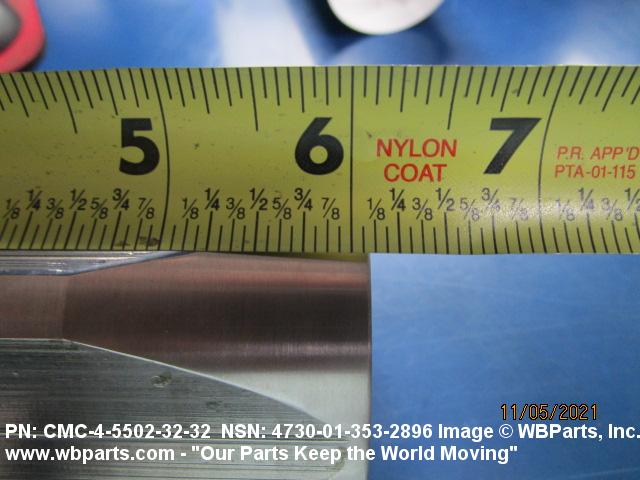

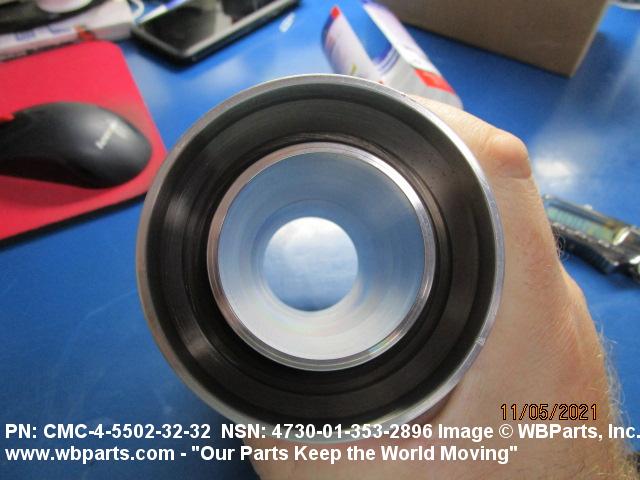

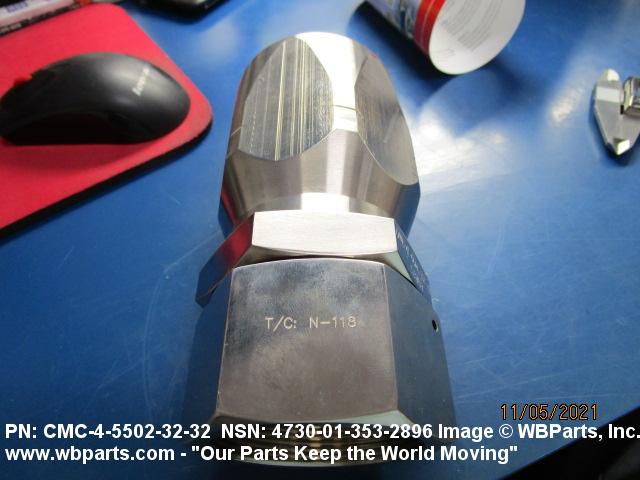

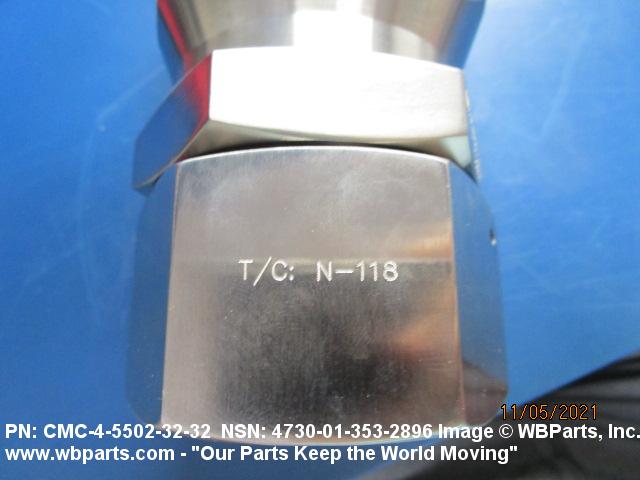

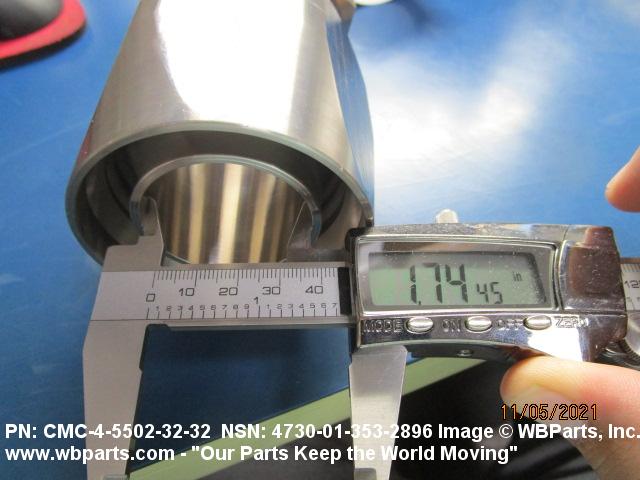

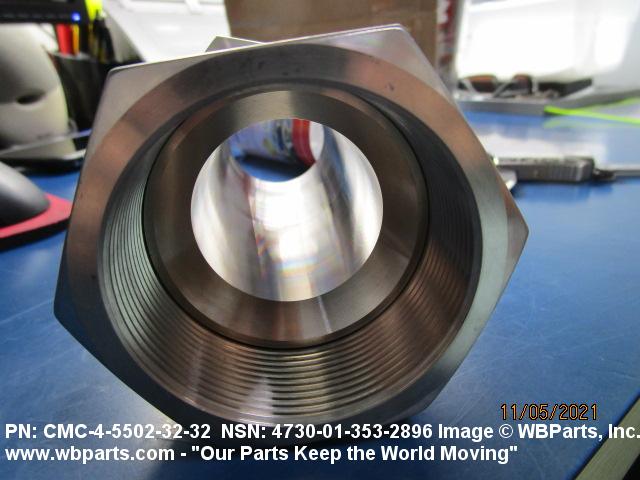

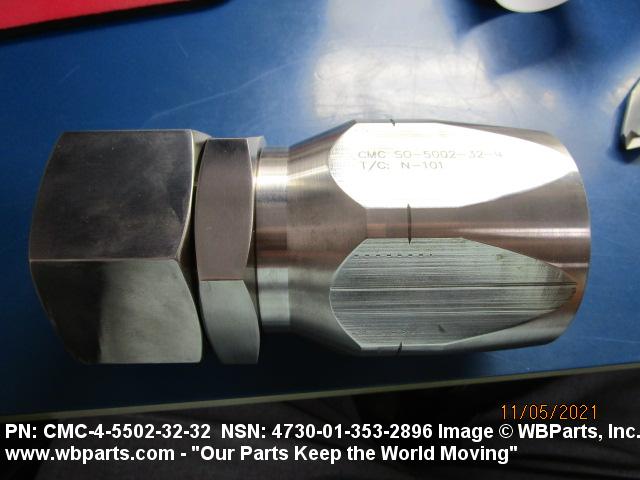

Drawings & Photos | NSN 4730-01-353-2896
Demand History | NSN 4730-01-353-2896
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-353-2896 | 2023-08-233 | 2 | DIBBS |
| 4730-01-353-2896 | 2023-08-222 | 2 | DIBBS |
| 4730-01-353-2896 | 2023-05-124 | 4 | DIBBS |
| 4730-01-353-2896 | 2021-12-341 | 4 | DIBBS |
| 4730-01-353-2896 | 2021-12-339 | 3 | DIBBS |
| 4730-01-353-2896 | 2021-07-210 | 2 | DIBBS |
| 4730-01-353-2896 | 2021-05-139 | 35 | United States |
| 4730-01-353-2896 | 2020-08-243 | 2 | DIBBS |
| 4730-01-353-2896 | 2019-04-108 | 3 | DIBBS |
| 4730-01-353-2896 | 2018-07-208 | 2 | DIBBS |
| 4730-01-353-2896 | 2018-07-196 | 2 | DIBBS |
| 4730-01-353-2896 | 2014-12-356 | 2 | DIBBS |
| 4730-01-353-2896 | 2014-12-339 | 2 | DIBBS |
Cross Reference | NSN 4730-01-353-2896
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 30233-32-32B6 | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| 4-4721-32 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| CMC-4-5502-32-32 | 53159 | CUSTOM HYDRAULIC & MACHINE, INC. DBA CUSTOM MACHINE |
| M24135/1A-2000-32 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-F-24787 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-F-24787/2 GRI TYA | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-H-24135 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-353-2896
Technical Data | NSN 4730-01-353-2896
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY OVERALL |
| MAXIMUM OPERATING PRESSURE | 1250.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 300.0 DEG FAHRENHEIT SINGLE RESPONSE |
| CONNECTION TYPE | THREADED INTERNAL TUBE 1ST END THREADED EXTERNAL HOSE GRIPPING 2ND END |
| CONNECTION STYLE | B3 SWIVEL NUT, FLARE 1ST END B61 GRIPPING NIPPLE 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |
| NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED | 2.000 INCHES 2ND END |

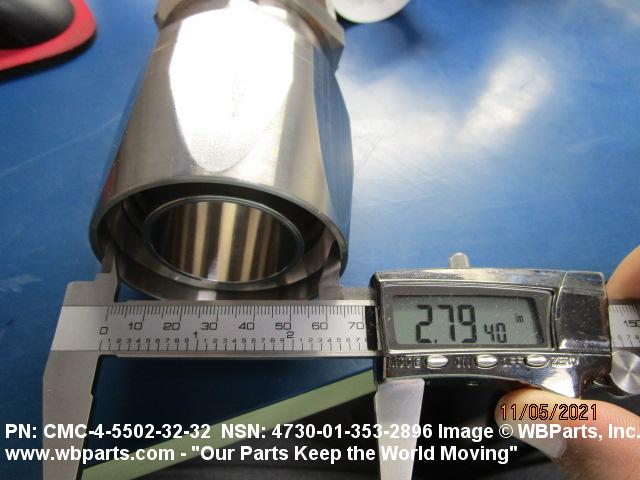

| NOMINAL OUTSIDE DIAMETER HOSE ACCOMMODATED | 2.750 INCHES 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 2.000 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UN 1ST END |
| NOMINAL THREAD SIZE | 2.500 INCHES 1ST END |

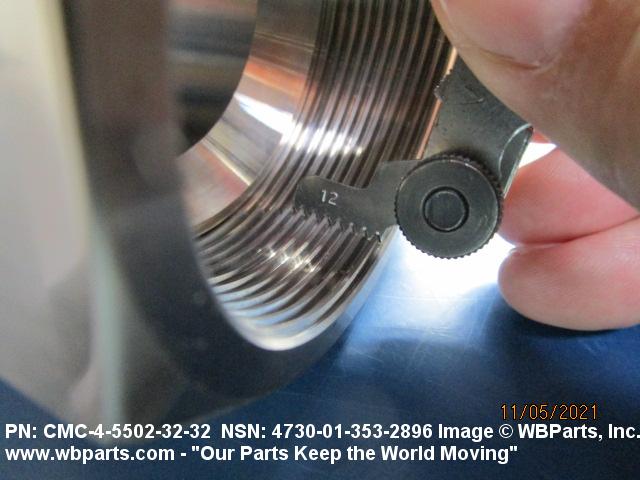

| THREAD QUANTITY PER INCH | 12 1ST END |
| THREAD CLASS | 2B 1ST END |
| NOMINAL OVERALL LENGTH | 5.900 INCHES |
| SPECIFICATION/STANDARD DATA | 81349-MIL-H-24135 GOVERNMENT SPECIFICATION |
| NONDEFINITIVE SPEC/STD DATA | A TYPE |
| III END ITEM IDENTIFICATION | FGN CVN 68 CLASS REACTOR FILL AUXILIARY SYSTEM |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-24787 |
Restrictions/Controls & Freight Information | NSN 4730-01-353-2896
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051450 | PIPE FITTINGS CUPRO NICKEL/COPPER |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-353-2896
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
