NSN 4730-01-352-6192 W70164TE, W701-64TE, 12J7164TE
Product Details | FLEXIBLE TUBE COUPLING ASSEMBLY
4730-01-352-6192 A multipiece gasket sealed item specifically designed for joining plain end ferruled tubing or beaded end tubing that will accommodate angular misalignment, axial motion and permits expansion and contraction of the tubing. It may be disconnected for seal replacement without disturbing the rest of the line. The seals are not normally furnished with the item. For rigid type items see COUPLING, TUBE; and UNION, TUBE.
Part Alternates: W70164TE, W701-64TE, 12J7164TE, 12J71-64TE, 4730-01-352-6192, 01-352-6192, 4730013526192, 013526192
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 29 JAN 1992 | 01-352-6192 | 32834 ( COUPLING ASSEMBLY, TUBE, FLEXIBLE ) |

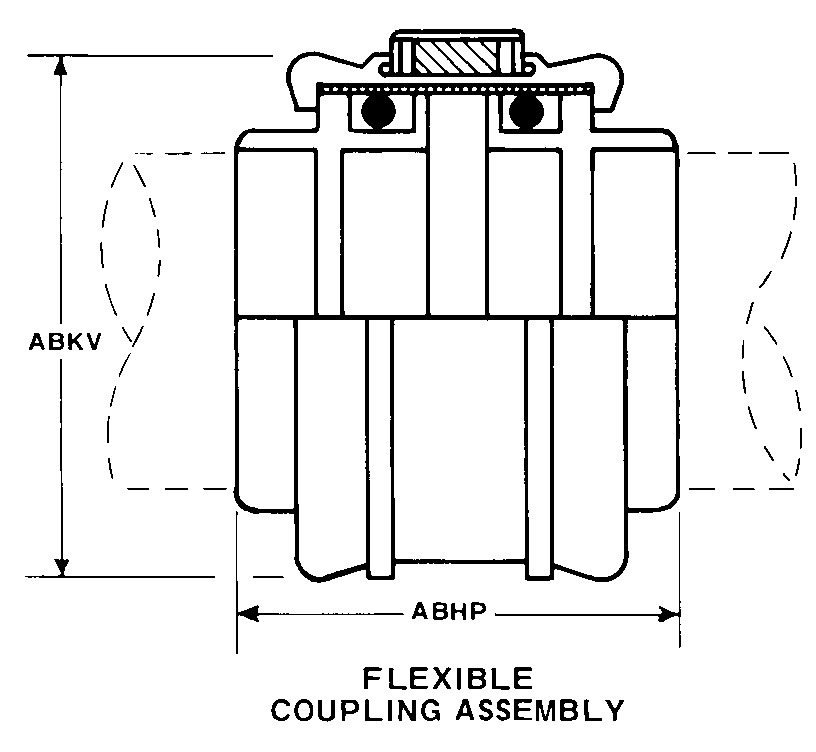

Drawings & Photos | NSN 4730-01-352-6192
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-352-6192
Technical Data | NSN 4730-01-352-6192
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY |
| SURFACE TREATMENT | ANODIZED |
| STYLE DESIGNATOR | U1 FLEXIBLE COUPLING ASSEMBLY |
| OVERALL LENGTH | 1.602 INCHES NOMINAL |
| OUTSIDE DIAMETER | 4.900 INCHES NOMINAL |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 4.000 INCHES NOMINAL |
| WORKING PRESSURE AND SERVICE TYPE | 125.0 POUNDS PER SQUARE INCH NOMINAL ANY ACCEPTABLE |
| WORKING TEMP AND SERVICE TYPE | 250.0 DEG FAHRENHEIT NOMINAL ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 4730-01-352-6192
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4730-01-352-6192
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
