NSN 4730-01-345-5778 SY080010ER30M, SY080010ER30ML1, 01-345-5778
Product Details | SEDIMENT STRAINER
4730-01-345-5778 A strainer having inlet and outlet connections and designed to be connected in a pipe, tube or hose line.
Part Alternates: SY080010ER30M, SY080010ER30ML1, 4730-01-345-5778, 01-345-5778, 4730013455778, 013455778
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 21 SEP 1991 | 01-345-5778 | 04200 ( STRAINER, SEDIMENT ) |
Drawings & Photos | NSN 4730-01-345-5778
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-345-5778
Related Products | NSN 4730-01-345-5778
Technical Data | NSN 4730-01-345-5778
| Characteristic | Specifications |
|---|---|

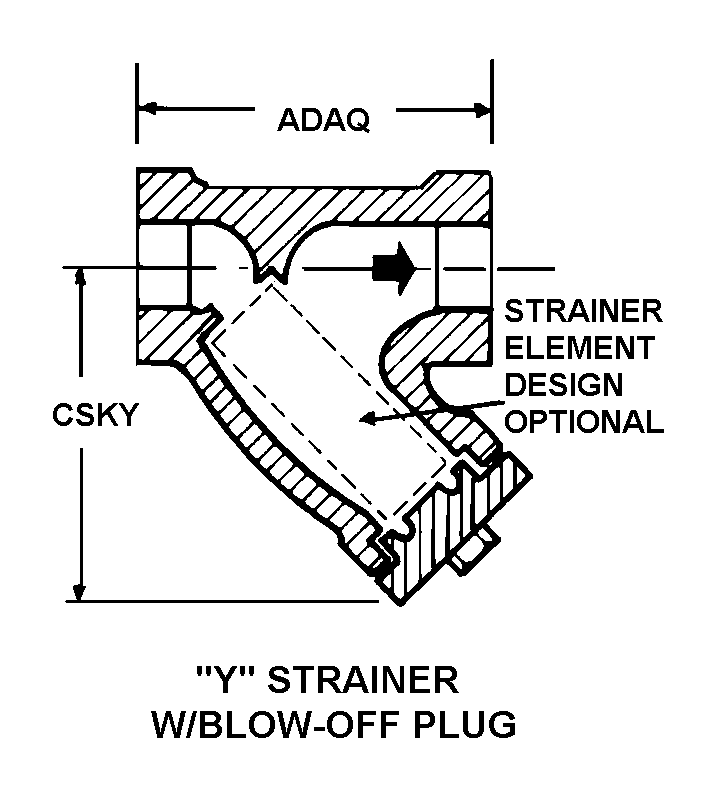

| STYLE DESIGNATOR | C1 Y STRAINER W/BLOW-OFF PLUG |
| BODY LENGTH | 7.380 INCHES NOMINAL |
| DISTANCE FROM BOTTOM OF BODY TO CENTER OF INLET | 4.880 INCHES NOMINAL |
| MATERIAL | STEEL BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A216 ASSN STD SINGLE MATERIAL RESPONSE BODY |
| FILTERING MEDIA DESIGN | ANY ACCEPTABLE SINGLE FILTERING MEDIA RESPONSE |
| MEDIA FOR WHICH DESIGNED | ANY ACCEPTABLE |
| MAXIMUM OPERATING PRESSURE | 600.0 POUNDS PER SQUARE INCH |
| TEMP RATING | NOT RATED |
| FIRST INTAKE CONNECTION TYPE | RAISED FACE FLANGE SIDE |
| FIRST INTAKE FLANGE SHAPE STYLE | 2 ROUND W/UNTHREADED BOLT HOLES |
| FIRST INTAKE FLANGE OUTSIDE DIAMETER | 4.880 INCHES NOMINAL |
| FIRST INTAKE FLANGE THICKNESS | 0.690 INCHES NOMINAL |
| FIRST INTAKE FLANGE FACE STYLE | 4 RAISED |
| FIRST INTAKE FLANGE RAISED FACE HEIGHT | 0.250 INCHES NOMINAL |
| FIRST INTAKE FLANGE RAISED FACE DIAMETER | 2.000 INCHES NOMINAL |
| FIRST DISCHARGE CONNECTION RELATIONSHIP TO INTAKE CONNECTION | IDENTICAL TO FIRST INTAKE CONNECTION |
| MOUNTING TYPE | UNTHREADED HOLE SIDE |
| MOUNTING HOLE QUANTITY | 2 |
| MOUNTING HOLE DIAMETER | 0.750 INCHES NOMINAL |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | QUALITY CONTROL IN ACCORDANCE WITH NAVSHIPS 0948-045-7010 MATERIAL IDENTIFICATION AND CONTROL INSTRUCTION FOR LEVEL 1 ITEMS |
| CRITICALITY CODE JUSTIFICATION | ZZZY |
| MANUFACTURERS CODE | 73124 |
| DESIGN CONTROL REFERENCE | SY080010ER30M |
Restrictions/Controls & Freight Information | NSN 4730-01-345-5778
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | S | The item is a non-aviation Critical Safety Item (CSI) whose failure will result in serious damage to equipment or serious injury or death to personnel. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052440 | STRAINERS PIPE LINE I/S BODY |
| Less than car load rating | S | 60 |
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-345-5778
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | L1 | An items that supports either a SUBSAFE or Level 1 system that has undergone the extreme material control and quality assurance techniques that provide objective exidence of its acceptance for its appropriate application. Each item has certification papers (or special markings that provide traceability to the certification) that pedigree its material and physical properties, provide traceability, to manufacturer, contract list and lot, and document the quality assurance system and test requirements applied to the item. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
