NSN 4730-01-340-1321 AS247467, AS27467, 01-340-1321
Product Details | TUBE COUPLING
4730-01-340-1321 A straight fitting 12 inches (304 mm) long or under having the same or different type of connection of the same size on both ends. It is designed to join a tube or tube fitting to another tube or tube fitting. Excludes fittings with threaded external connections on both ends. Excludes NIPPLE, PIPE.
Part Alternates: AS247467, AS27467, 4730-01-340-1321, 01-340-1321, 4730013401321, 013401321
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 10 JUN 1991 | 01-340-1321 | 06078 ( COUPLING, TUBE ) |

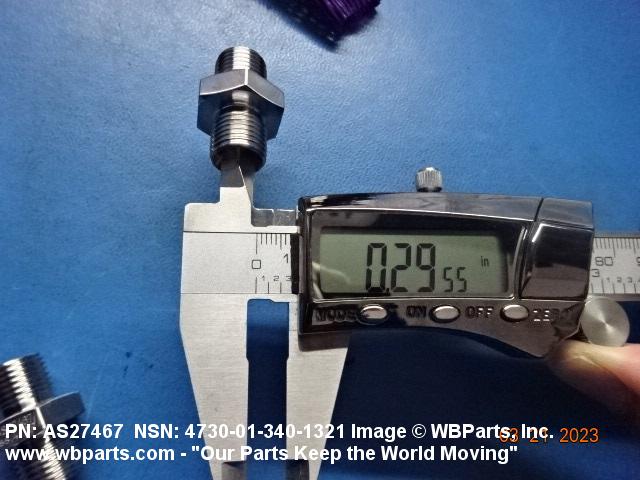

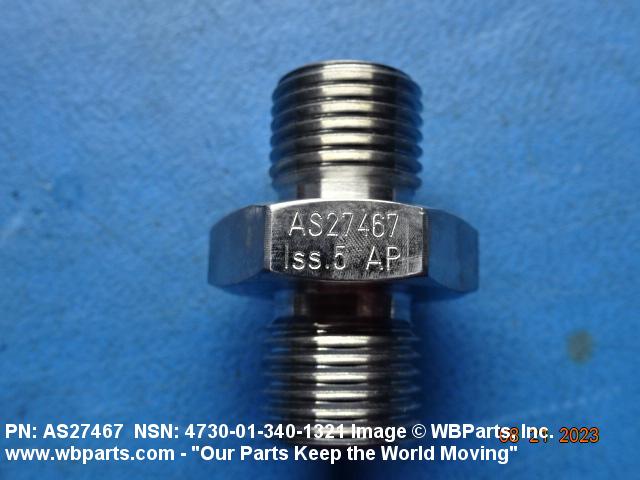

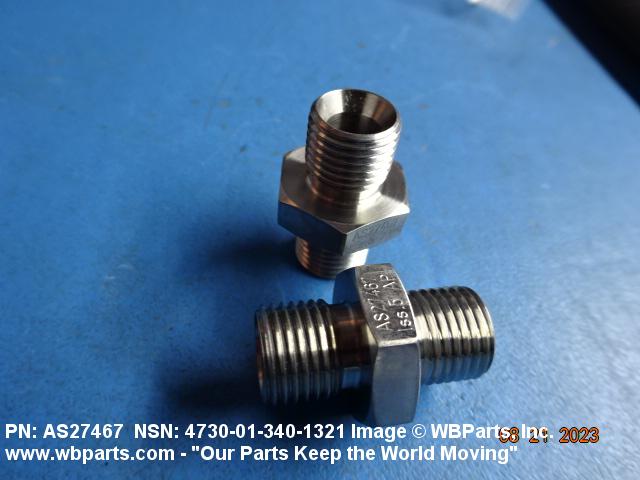

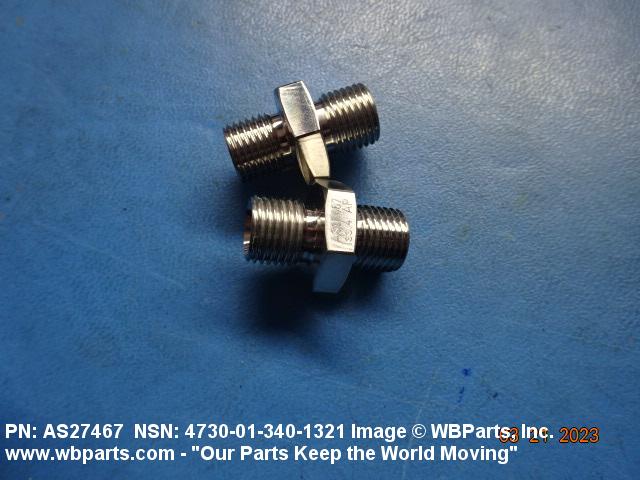

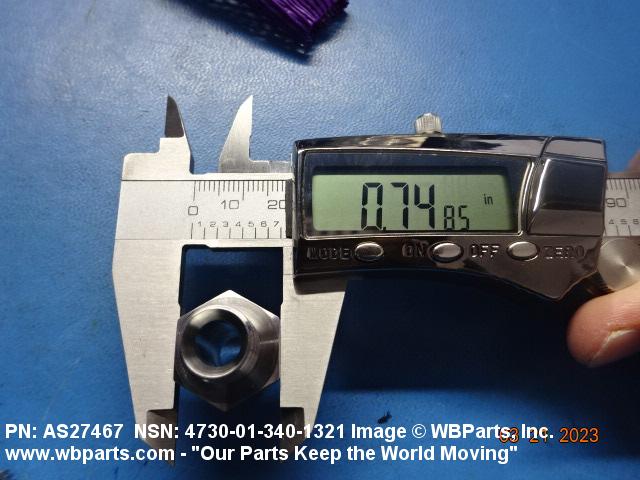

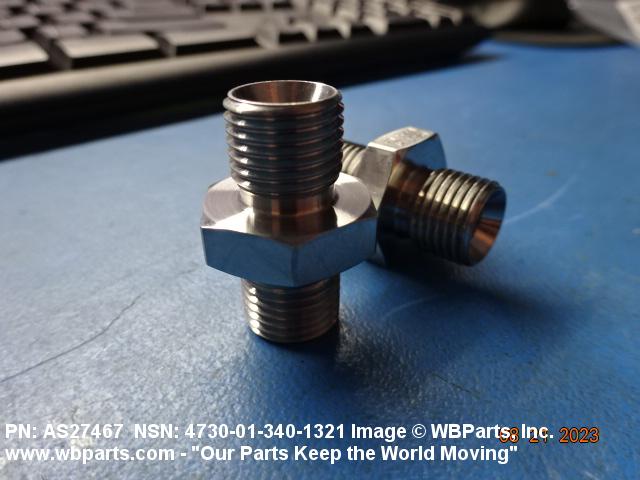

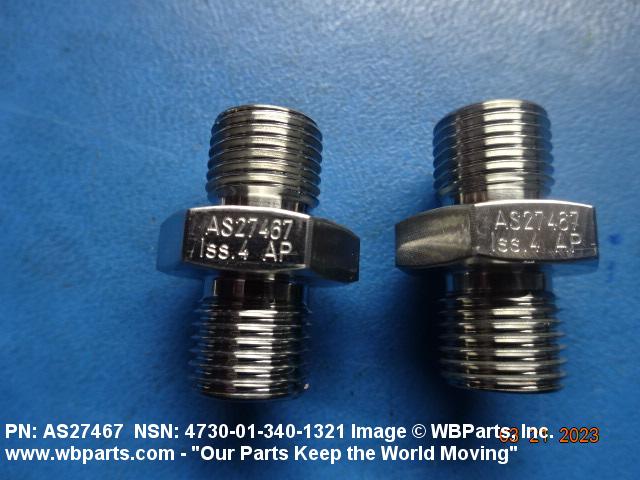

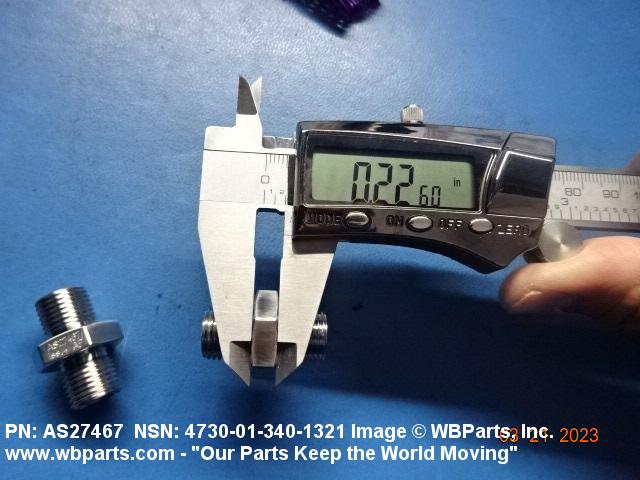

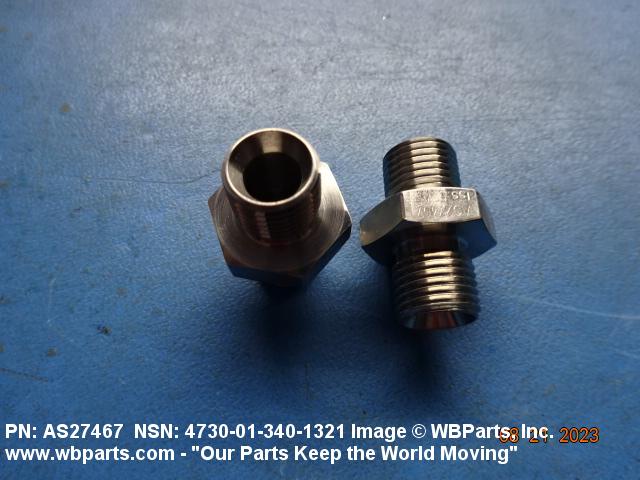

Drawings & Photos | NSN 4730-01-340-1321
Demand History | NSN 4730-01-340-1321
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-340-1321 | 2025-03-63 | 4 | United States |
| 4730-01-340-1321 | 2025-03-63 | 1 | US |
| 4730-01-340-1321 | 2023-08-229 | 2 | United States |
| 4730-01-340-1321 | 2023-08-227 | 2 | US |
| AS27467 | 2023-06-173 | 390 | US |
| 4730-01-340-1321 | 2023-02-59 | 2 | United States |
| 4730-01-340-1321 | 2023-02-53 | 2 | US |
| AS247467 | 2023-02-46 | 2 | UK |
| AS27467 | 2019-04-92 | 5 | United States |
| 4730-01-340-1321 | 2014-11-315 | 12 | DIBBS |
| AS27467 | 2007-03-64 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-340-1321
Technical Data | NSN 4730-01-340-1321
| Characteristic | Specifications |
|---|---|
| MATERIAL DOCUMENT AND CLASSIFICATION | BSS62 MFR REF SINGLE MATERIAL RESPONSE OR BSS80 MFR REF SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | A5 RIGID, SHORT CENTER WRENCHING FACILITY |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B63A INVERTED FLARE ALL ENDS |
| SEAT ANGLE | 30.0 DEGREES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.313 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNS ALL ENDS |

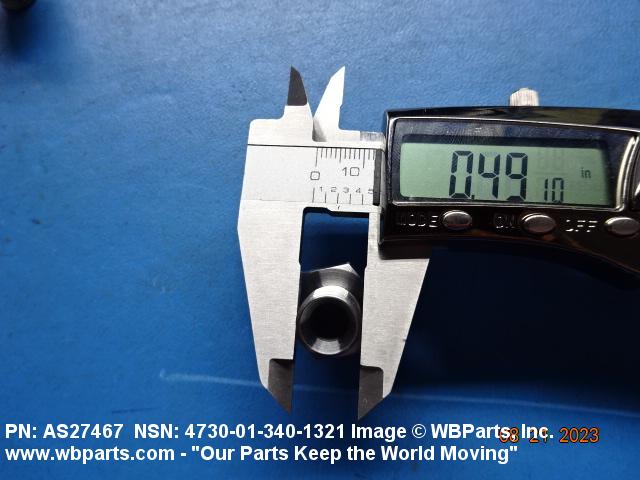

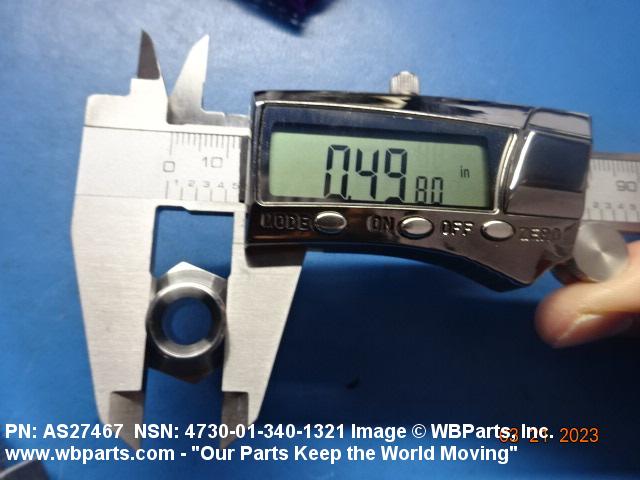

| NOMINAL THREAD SIZE | 0.497 INCHES ALL ENDS |
| THREAD QUANTITY PER INCH | 20 ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |

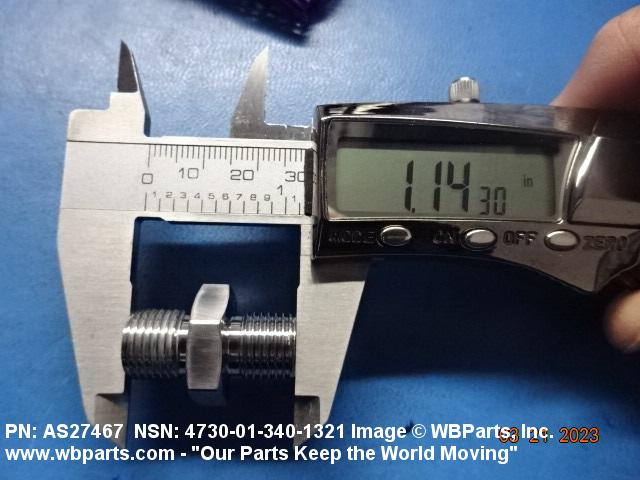

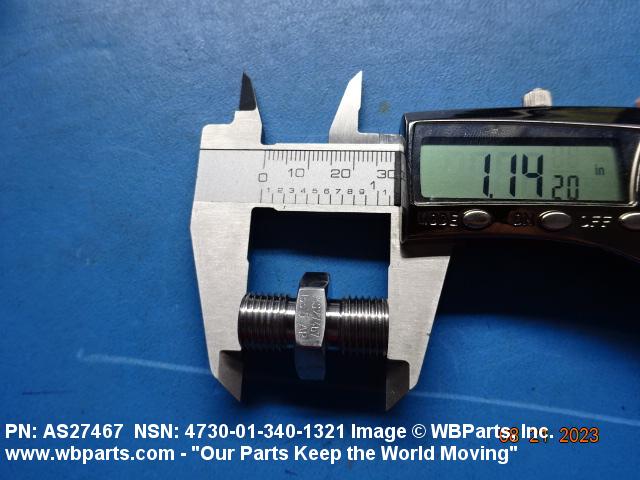

| NOMINAL OVERALL LENGTH | 1.136 INCHES |
| SPECIFICATION/STANDARD DATA | U1653-AS27467-27499 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 4730-01-340-1321
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-340-1321
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
