NSN 4730-01-332-4748 1592060, 159206-0, 01-332-4748
Product Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-01-332-4748 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Part Alternates: 1592060, 159206-0, 4730-01-332-4748, 01-332-4748, 4730013324748, 013324748
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 11 JAN 1991 | 01-332-4748 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |
Drawings & Photos | NSN 4730-01-332-4748
Demand History | NSN 4730-01-332-4748
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1592060 | 2018-07-211 | 2 | IN |
Cross Reference | NSN 4730-01-332-4748
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 159206-0 | 60042 | ZODIAC OF NORTH AMERICA, INC. DIV MILPRO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-332-4748
Technical Data | NSN 4730-01-332-4748
| Characteristic | Specifications |
|---|---|

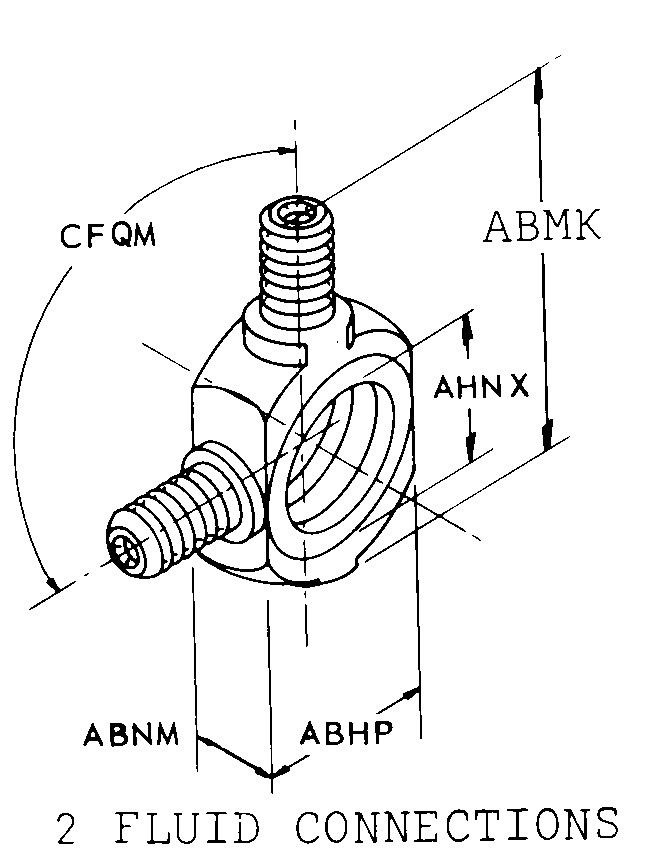

| STYLE DESIGNATOR | D43 2 FLUID CONNECTIONS |
| OVERALL LENGTH | 2.292 INCHES NOMINAL |
| OVERALL WIDTH | 2.939 INCHES NOMINAL |
| THICKNESS | 1.203 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 1.101 INCHES NOMINAL |
| DEG BETWEEN OUTLETS | 90.0 |
| FLUID CONNECTION QUANTITY | 1 1 |
| CONNECTION STYLE | G24 FLARELESS G24 FLARELESS |
| THREAD PROVISION | THREADED THREADED |
| THREAD SIZE | 15/32 IN.-24 45/64 IN.-18 |
| THREAD DIRECTION | RIGHT-HAND RIGHT-HAND |
| SEAT | INCLUDED INCLUDED |
| BOLT HOLE FLATS SERRATIONS | NOT PROVIDED |
| BOLT HOLE FLUID PASSAGE | PROVIDED |
| MANUFACTURERS CODE | 60042 |
| DESIGN CONTROL REFERENCE | 159206-0 |
Restrictions/Controls & Freight Information | NSN 4730-01-332-4748
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
