NSN 4730-01-318-6232 1385950 PC 2, 1385950PC2, 15180570
Product Details | PIPE OUTLET
4730-01-318-6232 A fitting having one end connection designed to accommodate a pipe. The other end is designed to be attached to a flat surface or the external contour of a pipe, tube, or fitting by welding, brazing, soldering, or the like. It is used to fabricate pipe outlets in a piping or tubing line.
Part Alternates: 1385950 PC 2, 1385950PC2, 15180570, 15-18-0570, 15180570A, 15-18-0570A, 4644351, 4644351 F13, 4644351F13, 8101385950, 810-1385950, 810-1385950 PC2, 8101385950PC2, 4730-01-318-6232, 01-318-6232, 4730013186232, 013186232
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 21 APR 1990 | 01-318-6232 | 28335 ( OUTLET, PIPE ) |
Drawings & Photos | NSN 4730-01-318-6232
Demand History | NSN 4730-01-318-6232
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-318-6232 | 2012-07-197 | 1 | DIBBS |
| 4730-01-318-6232 | 2012-05-136 | 2 | DIBBS |
| 4730-01-318-6232 | 2012-04-121 | 1 | DIBBS |
Cross Reference | NSN 4730-01-318-6232
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1385950 PC 2 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 15-18-0570 | 96169 | ELECTRIC BOAT CORPORATION |
| 15-18-0570A | 96169 | ELECTRIC BOAT CORPORATION |
| 4644351 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 4644351 F13 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 810-1385950 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 810-1385950 PC2 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-318-6232
Technical Data | NSN 4730-01-318-6232
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-C-15726,COMP70-30 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | WATER-OIL-GAS SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 700.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 425.0 DEG FAHRENHEIT SINGLE RESPONSE |

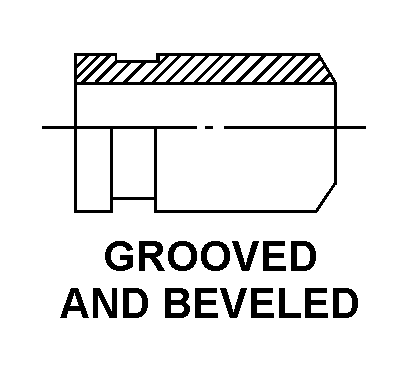

| STYLE DESIGNATOR | A9 GROOVED AND BEVELED |
| CONNECTION TYPE | UNTHREADED INTERNAL PIPE 1ST END BUTT WELD PIPE 2ND END |
| CONNECTION STYLE | B41B SOCKET BRAZING RING 1ST END B131B BEVELED 2ND END |
| NOMINAL PIPE SIZE ACCOMMODATED | 0.250 INCHES 1ST END 0.250 INCHES 2ND END |
| NOMINAL OVERALL LENGTH | 1.188 INCHES |
| MOUNTING END TYPE | FLAT |
| FURNISHED ITEMS AND QUANTITY | 1 BRAZING RING |
Restrictions/Controls & Freight Information | NSN 4730-01-318-6232
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052185 | PIPE,TUBING,OR PIPE OR TUBING FIT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-318-6232
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
