NSN 4730-01-314-8807 5165486653, 516-5486653, 516-5486653 F60
Product Details | UNION NUT
4730-01-314-8807 An internally threaded nut which has an internal seat or shoulder designed to engage the nut retaining flange of a union tailpiece. The threaded portion is used to engage the thread piece of a union, union elbor or the like. Excludes NUT (1), TUBE COUPLING.202109000004730000000
Part Alternates: 5165486653, 516-5486653, 516-5486653 F60, 5165486653F60, 8102145528, 810-2145528, 810-2145528 PC1, 810-2145528 PIE, 8102145528PC1, 8102145528PIE, 4730-01-314-8807, 01-314-8807, 4730013148807, 013148807
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 07 FEB 1990 | 01-314-8807 | 19964 ( NUT, UNION ) |

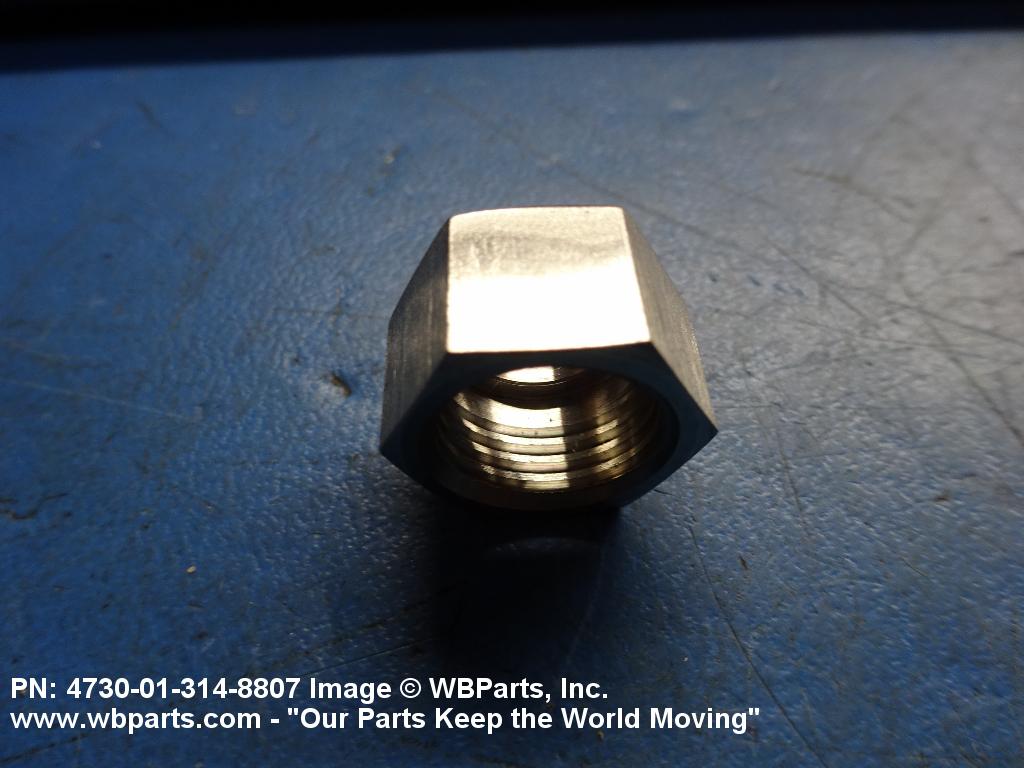

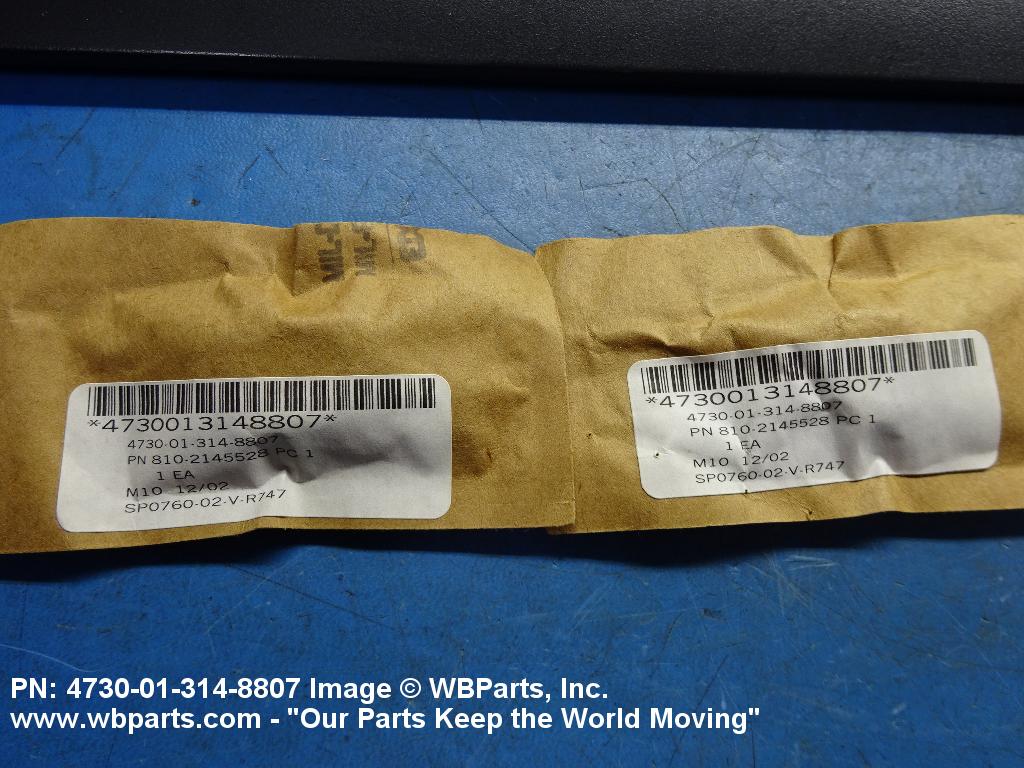

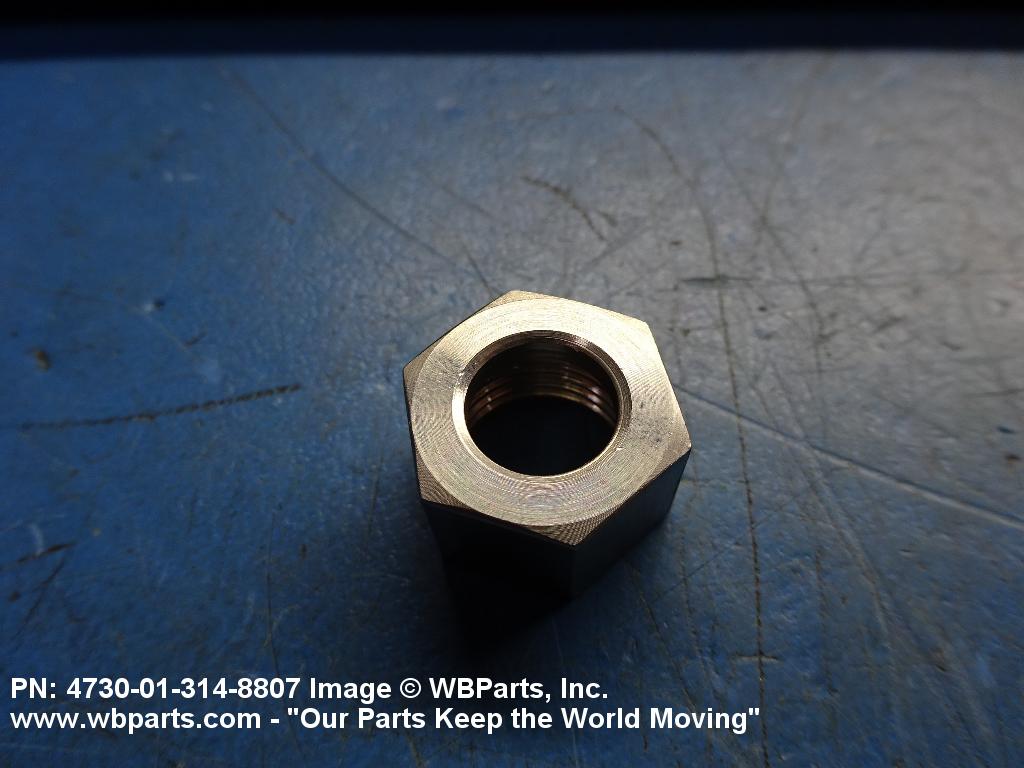

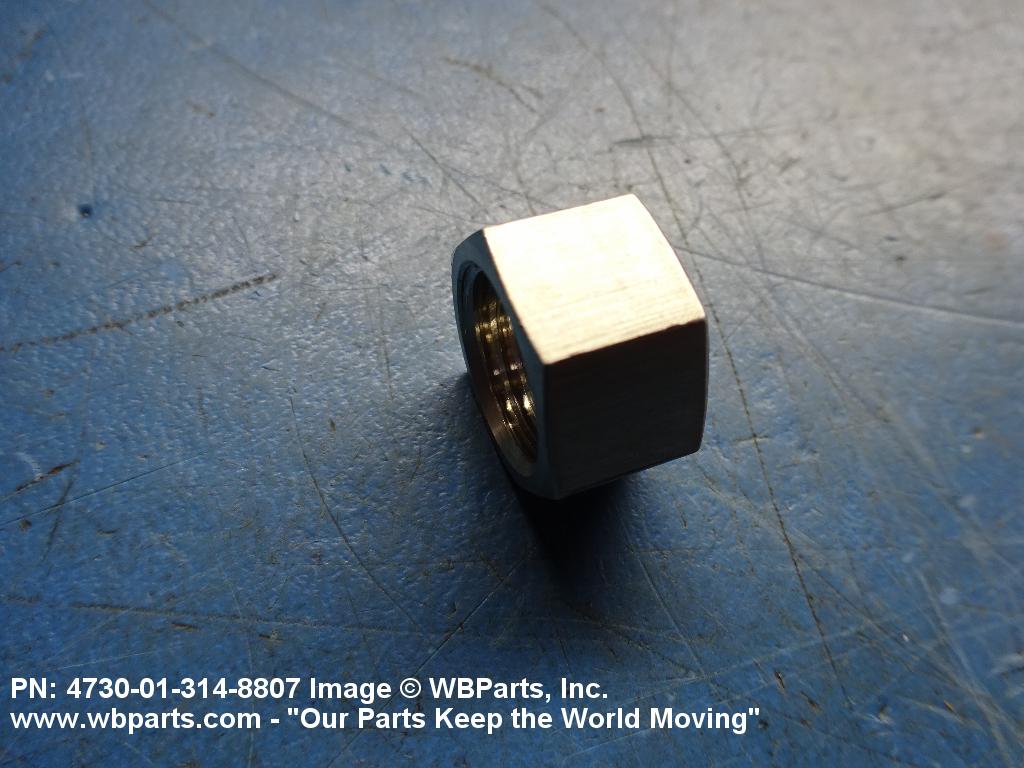

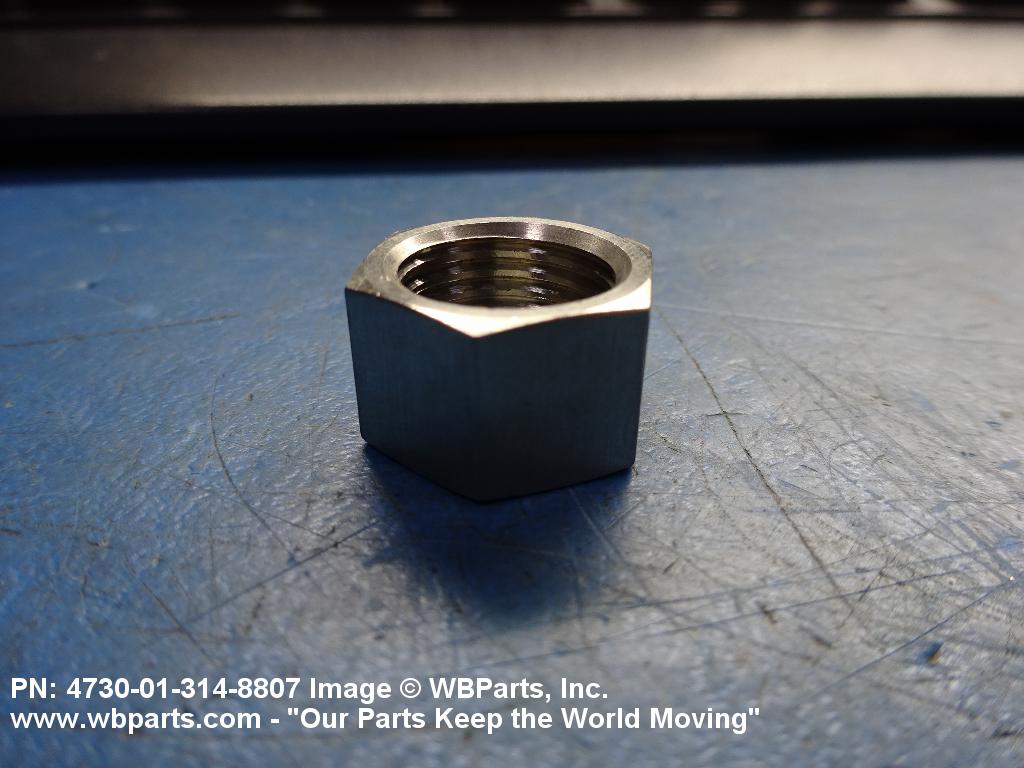

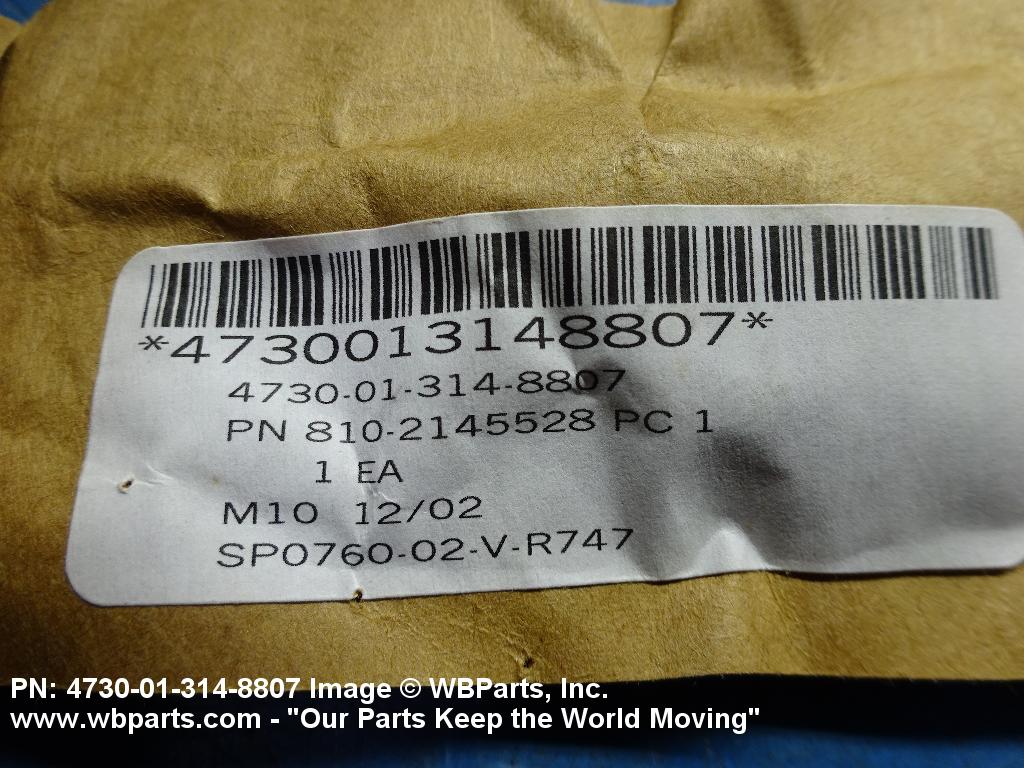

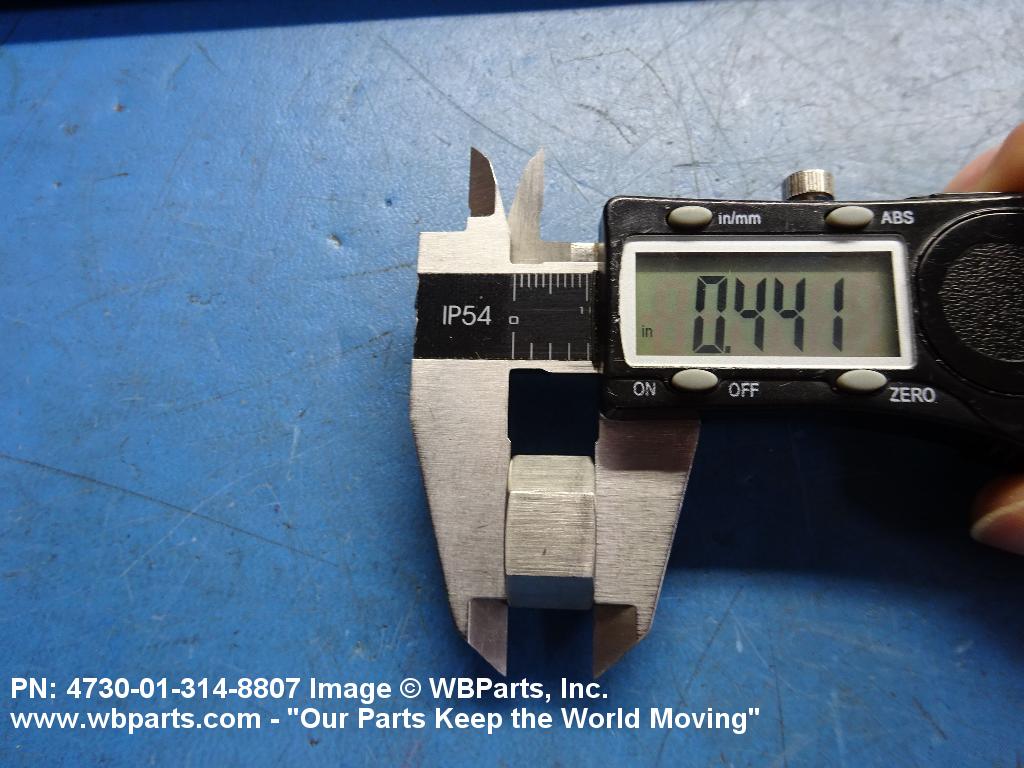

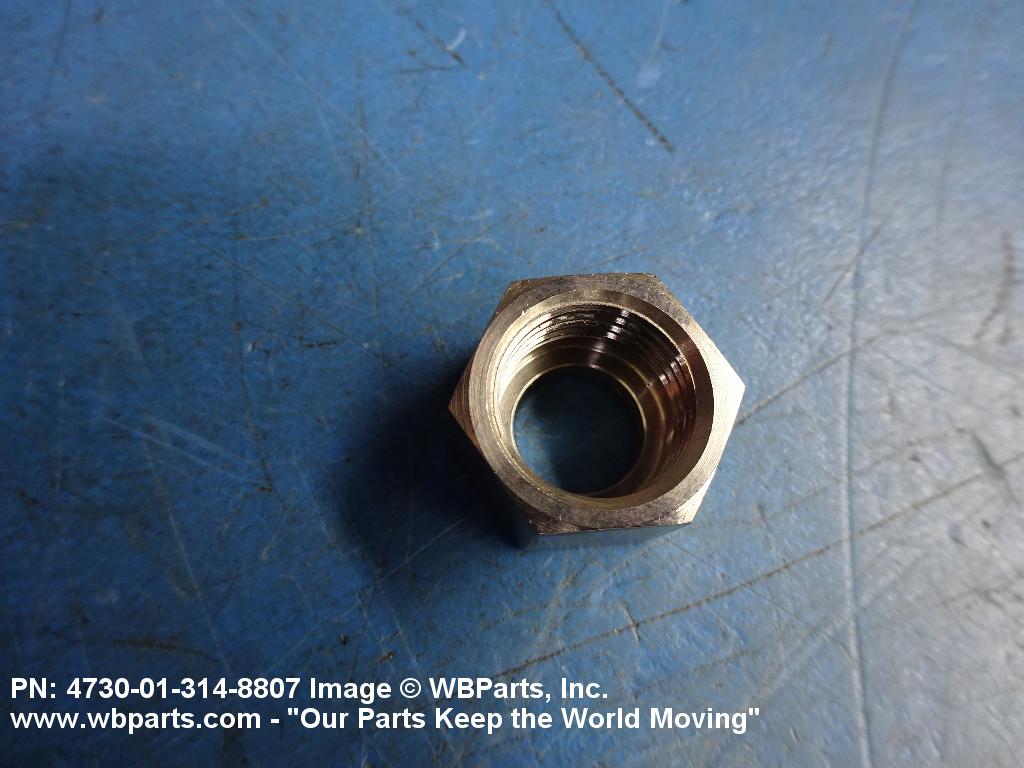

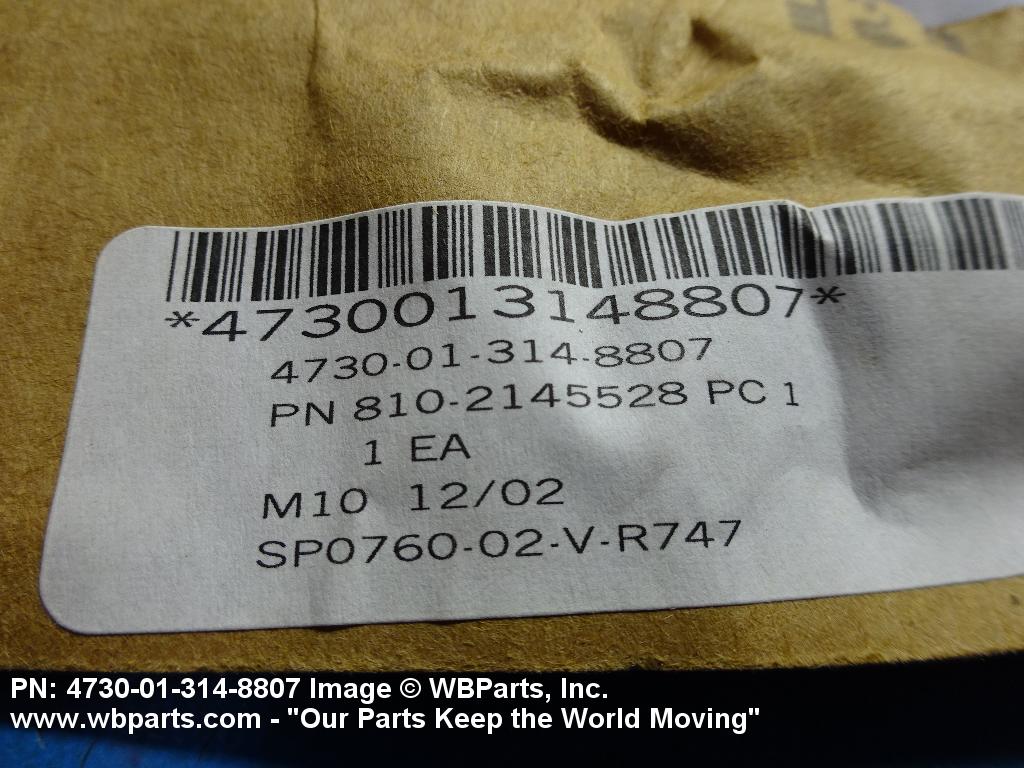

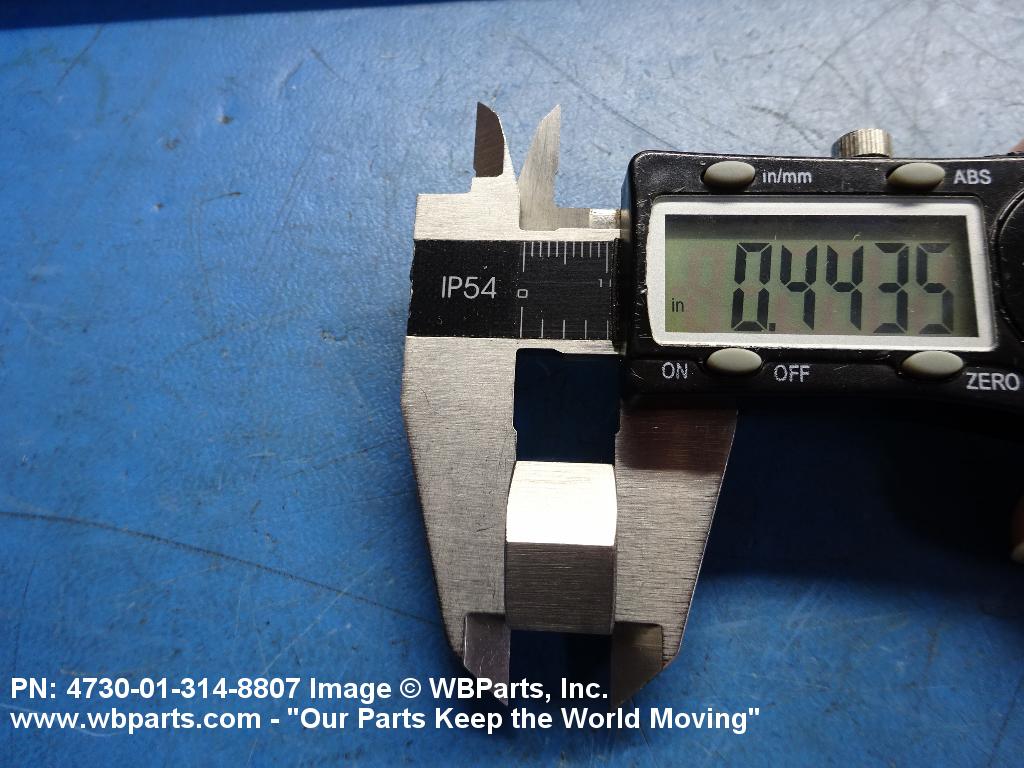

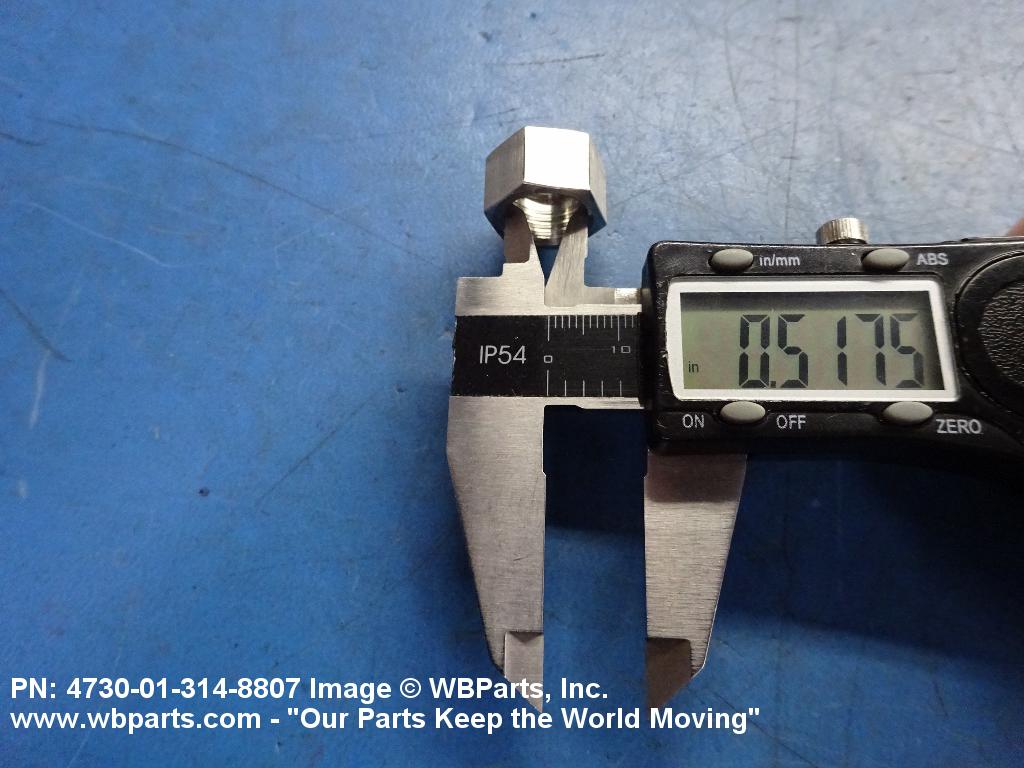

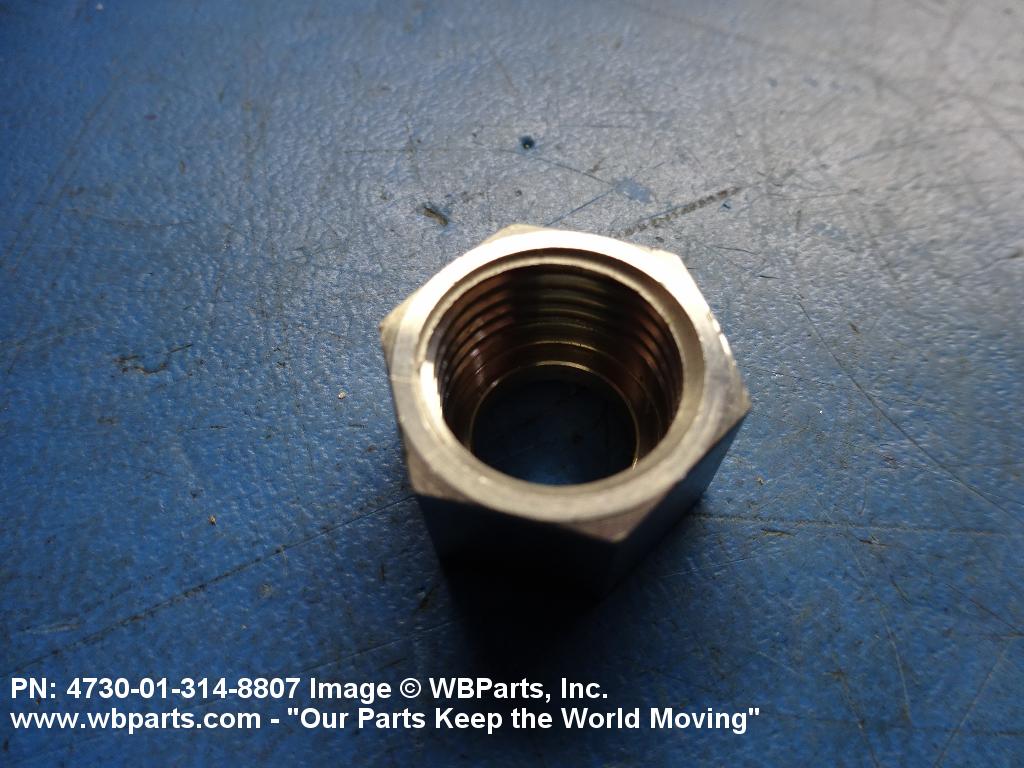

Drawings & Photos | NSN 4730-01-314-8807
Demand History | NSN 4730-01-314-8807
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-314-8807 | 2024-08-214 | 415 | DIBBS |
| 4730-01-314-8807 | 2022-10-290 | 5 | United States |
| 4730-01-314-8807 | 2022-07-182 | 991 | DIBBS |
| 4730-01-314-8807 | 2022-06-171 | 991 | DIBBS |
| 4730-01-314-8807 | 2021-08-221 | 239 | DIBBS |
| 4730-01-314-8807 | 2021-07-210 | 239 | DIBBS |
| 4730-01-314-8807 | 2018-07-199 | 420 | DIBBS |
| 4730-01-314-8807 | 2014-03-65 | 820 | DIBBS |
| 4730-01-314-8807 | 2011-04-112 | 8 | US |
| 4730-01-314-8807 | 2009-08-225 | 972 | DIBBS |
| 4730-01-314-8807 | 2009-04-106 | 654 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-314-8807
Technical Data | NSN 4730-01-314-8807
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.563 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC 1ST MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A371 HEXAGON |

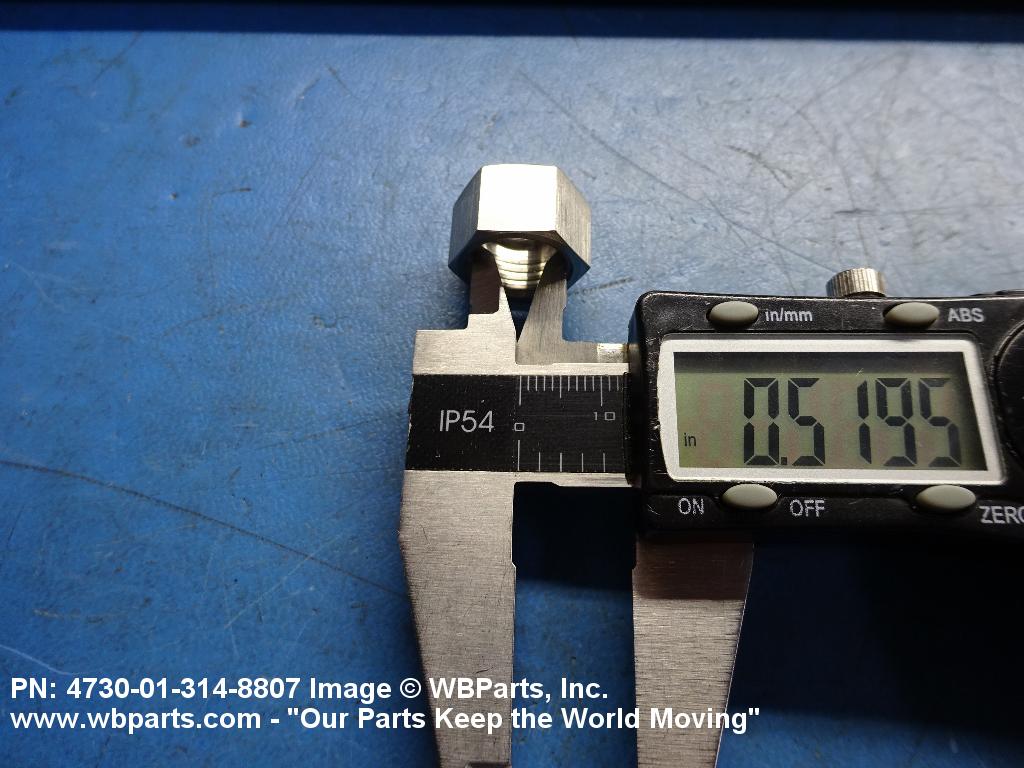

| NUT HEIGHT | 0.438 INCHES NOMINAL |

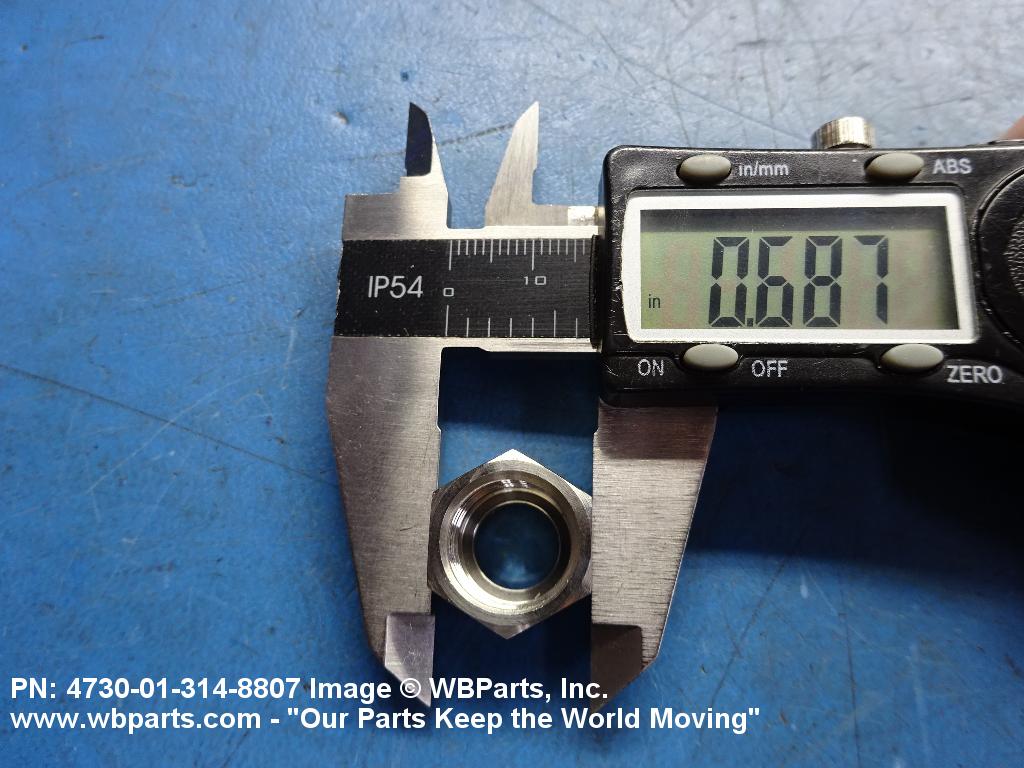

| WIDTH ACROSS FLATS | 0.688 INCHES NOMINAL |
| HOLE CONFIGURATION STYLE | H3 CONFIGURATION C |
Restrictions/Controls & Freight Information | NSN 4730-01-314-8807
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 104500 | IRON/STEEL:BLANKS/STAMPINGS |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-314-8807
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
