NSN 4730-01-304-9898 906F216, 01-304-9898, 013049898
Product Details | PIPE PLUG
4730-01-304-9898 A pipe fitting primarily designed for permanent installation during piping systems operations to fit into another pipe or pipe fitting for sealing. It usually is threaded.
Part Alternates: 906F216, 4730-01-304-9898, 01-304-9898, 4730013049898, 013049898
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 31 JUL 1989 | 01-304-9898 | 06077 ( PLUG, PIPE ) |
Drawings & Photos | NSN 4730-01-304-9898
Cross Reference | NSN 4730-01-304-9898
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 906F216 | 59042 | CBS BROADCASTING INC. DBA CBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-304-9898
Related Products | NSN 4730-01-304-9898
Technical Data | NSN 4730-01-304-9898
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-N-23229 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CHROMIUM BODY |

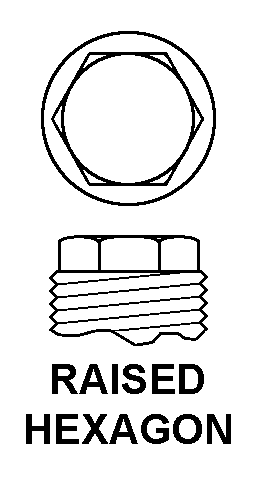

| DRIVE END STYLE | 12 RAISED HEXAGON |
| HEAD TYPE | SOLID |
| HEAD CORE DIAMETER | 4.822 INCHES MINIMUM |
| BODY TYPE | SOLID |
| BODY CORE DIAMETER | 6.520 INCHES MINIMUM AND 6.540 INCHES MAXIMUM |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | MATERIAL WILL BE IN ACCORDANCE WITH SHIPS PARTS CONTROL CENTER ACTIVITY HX QUALITY CONTROL,MANUFACTURING AND TESTING SPECIFICATIONS |
| CRITICALITY CODE JUSTIFICATION | ZZZY |
| MANUFACTURERS CODE | 59042 |
| DESIGN CONTROL REFERENCE | 906F216 |
Restrictions/Controls & Freight Information | NSN 4730-01-304-9898
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | F | Munitions List Item or Commerce Control List Item. Demilitarization required. Demilitarization Instructions to be furnished by the Item/Technical Manager. |
| Controlled Inventory Item Code: | O | ITEM CONTAINS UNCLASSIFIED NAVAL NUCLEAR PROPULSION INFORMATION; DISPOSAL AND ACCESS LIMITATIONS ARE IDENTIFIED IN OPNAVINST N9210.3. ALSO, IDENTIFIES UNCLASSIFIED NUCLEAR WEAPONS-RELATED MATERIEL (NWRM) REQUIRING STRINGENT POSITIVE INVENTORY CONTROL IN ACCORDANCE WITH AFMAN 23-110. CAUTION: STORE AND HANDLE IN A MANNER THAT WILL PREVENT UNAUTHORIZED ACCESS TO THIS MATERIAL. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | C | The item has critical features such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4730-01-304-9898
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | X6 | |
| Issue Repair, or Requisition | BL | Submit/refer requisitions to NAVICP MECH. Centralized control for issue of repair parts for specific programs/equipments. |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | O | ITEM CONTAINS UNCLASSIFIED NAVAL NUCLEAR PROPULSION INFORMATION; DISPOSAL AND ACCESS LIMITATIONS ARE IDENTIFIED IN OPNAVINST N9210.3. ALSO, IDENTIFIES UNCLASSIFIED NUCLEAR WEAPONS-RELATED MATERIEL (NWRM) REQUIRING STRINGENT POSITIVE INVENTORY CONTROL IN ACCORDANCE WITH AFMAN 23-110. CAUTION: STORE AND HANDLE IN A MANNER THAT WILL PREVENT UNAUTHORIZED ACCESS TO THIS MATERIAL. |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
