NSN 4730-01-270-6759 MS51519B8S, MILF18866, MIL-F-18866

Product Details | BOSS NIPPLE

4730-01-270-6759 A straight, one-piece fitting used to join two bosses or boss fittings. Both ends are the same size and have external machine threads (straignt threads other than pipe or hose series). It is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. The center section may be suitably shaped to accommodate a wrench.

Part Alternates: MS51519B8S, MILF18866, MIL-F-18866, 8-8 070119SA, 88070119SA, 8LHTX, 8LHTXSS, 8LHTX-SS, J514, 4730-01-270-6759, 01-270-6759, 4730012706759, 012706759

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	12 JAN 1988	01-270-6759	26952 ( NIPPLE, BOSS )

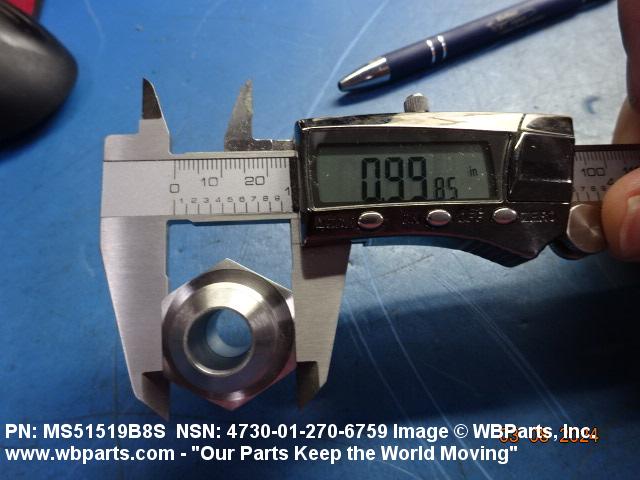

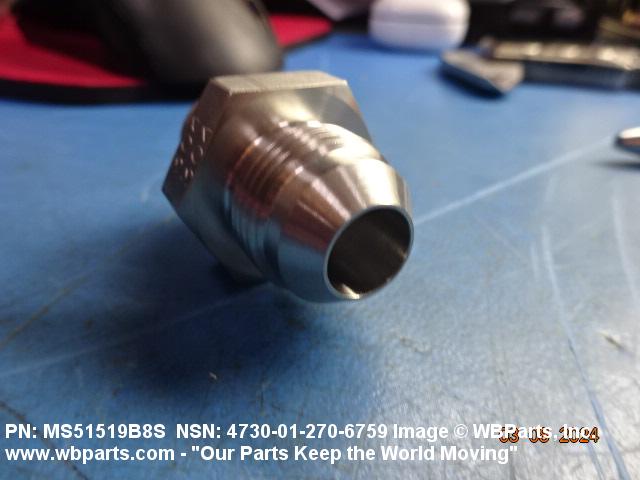

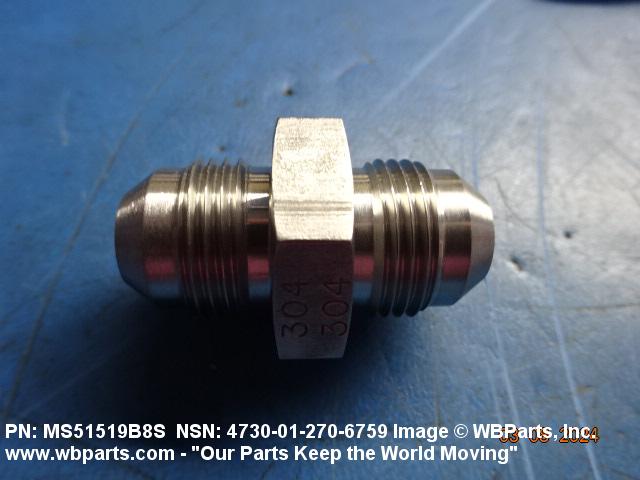

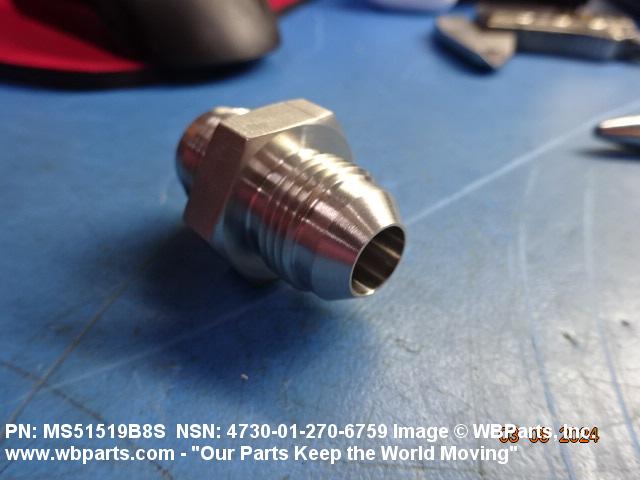

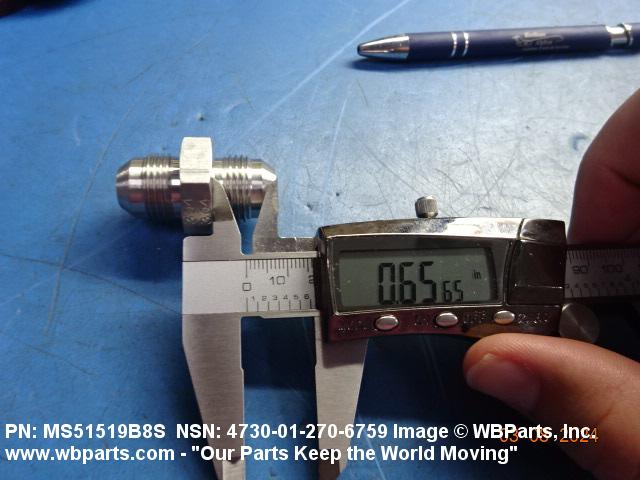

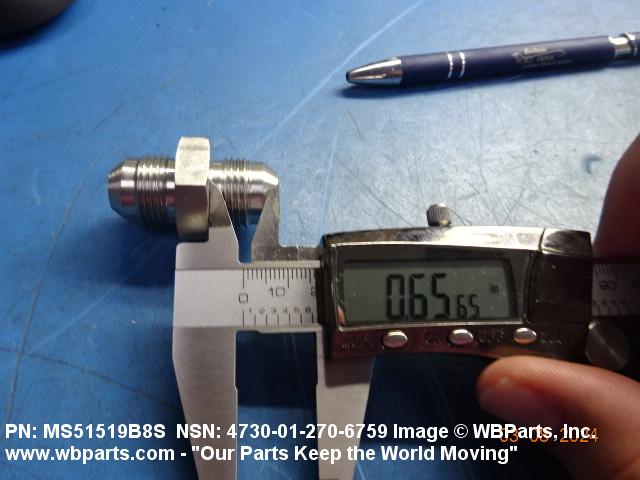

Drawings & Photos | NSN 4730-01-270-6759

Part Number	Request Date	QTY	Origin
4730-01-270-6759	2024-01-18	28	us
4730-01-270-6759	2023-12-338	516	DIBBS
4730-01-270-6759	2023-11-327	516	DIBBS
4730-01-270-6759	2023-08-228	28	United States
MS51519B8S	2023-01-25	1	United States
4730-01-270-6759	2019-12-339	435	DIBBS
4730-01-270-6759	2018-08-228	286	DIBBS
4730-01-270-6759	2017-09-247	208	DIBBS
4730-01-270-6759	2016-02-38	72	DIBBS
J514	2015-02-48	1	us
4730-01-270-6759	2012-06-170	50	US
J514	2010-02-47	20	us

Cross Reference | NSN 4730-01-270-6759

Part Number	Cage Code	Manufacturer
8-8 070119SA	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
8LHTX	30780	PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION
8LHTX	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
8LHTX-SS	30780	PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION
8LHTX-SS	98441	PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION
J514	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MIL-F-18866	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS51519B8S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-270-6759

Compare

Related Products | NSN 4730-01-270-6759

4730-01-270-6760, 4730-01-270-6769, 4730-01-270-6770, 4730-01-270-7143, 4730-01-270-7650

Technical Data | NSN 4730-01-270-6759

Characteristic	Specifications
MATERIAL	STEEL COMP 316 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM A276 UNS S31600 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
MEDIA FOR WHICH DESIGNED	HYDRAULIC FLUID SINGLE RESPONSE
MAXIMUM OPERATING PRESSURE	3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
MAXIMUM OPERATING TEMP	400.0 DEG FAHRENHEIT SINGLE RESPONSE
STYLE DESIGNATOR	A56 FLARED W/CENTER WRENCHING FACILITY
CONNECTION TYPE	THREADED EXTERNAL BOSS ALL ENDS
CONNECTION STYLE	B81 FLARED W/GASKET SEAL ALL ENDS
THREAD SERIES DESIGNATOR	UNF ALL ENDS
NOMINAL THREAD SIZE	0.750 INCHES ALL ENDS
THREAD CLASS	2A ALL ENDS

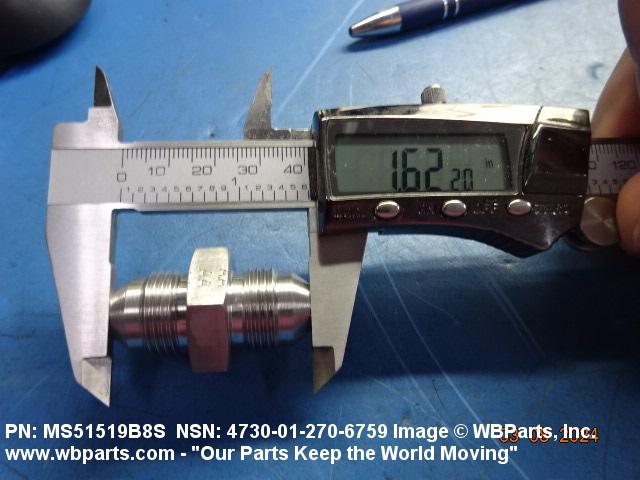

NOMINAL OVERALL LENGTH	1.620 INCHES
SPECIFICATION/STANDARD DATA	81343-J514 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD AND 96906-MS51519B/CANCELED/ GOVERNMENT STANDARD
NONDEFINITIVE SPEC/STD DATA	2C FIGURE AND 1/2IN.TU SIZE
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-F-18866
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS51519B8S

Restrictions/Controls & Freight Information | NSN 4730-01-270-6759

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	ZF	France ZG ZH
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-01-270-6759

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
