NSN 4730-01-259-1697 KC1597DM, KC159-7DM, 52828
Product Details | PIPE FLANGE
4730-01-259-1697 An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified).
Part Alternates: KC1597DM, KC159-7DM, 52828, 4730-01-259-1697, 01-259-1697, 4730012591697, 012591697
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 14 JUL 1987 | 01-259-1697 | 03798 ( FLANGE, PIPE ) |
Drawings & Photos | NSN 4730-01-259-1697
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-259-1697
Technical Data | NSN 4730-01-259-1697
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| MATERIAL DOCUMENT AND CLASSIFICATION | SA-182-F316 ASSN STD SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 10 ROUND, NO BOLT HOLES |
| FLANGE DIAMETER | 5.000 INCHES NOMINAL |

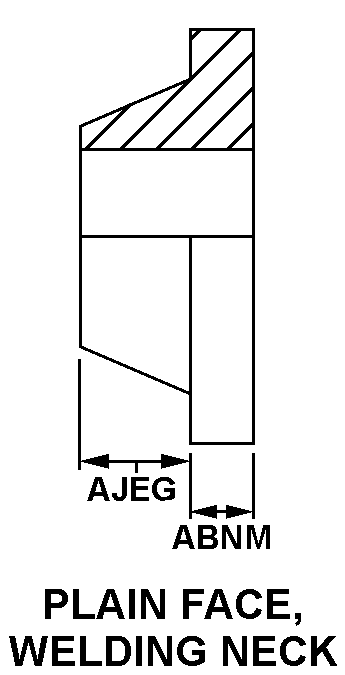

| FLANGE SECTION STYLE | 17 PLAIN FACE, WELDING NECK |
| THICKNESS | 0.500 INCHES NOMINAL |
| NECK HEIGHT | 2.750 INCHES NOMINAL |
| NOMINAL PIPE SIZE FOR WHICH DESIGNED | 2.500 INCHES |
| SPECIAL FEATURES | KC159-7DM; SCHEDULE CODE XX; HUB SIZE 2.5 GR 20; SEAL RING SIZE 20 |
| CRITICALITY CODE JUSTIFICATION | FEAT |
Restrictions/Controls & Freight Information | NSN 4730-01-259-1697
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
