NSN 4730-01-255-6634 74A587004, 74A5870041001, 74A587004-1001
Product Details | TUBE COUPLING
4730-01-255-6634 A straight fitting 12 inches (304 mm) long or under having the same or different type of connection of the same size on both ends. It is designed to join a tube or tube fitting to another tube or tube fitting. Excludes fittings with threaded external connections on both ends. Excludes NIPPLE, PIPE.
Part Alternates: 74A587004, 74A5870041001, 74A587004-1001, 74A5870041005, 74A587004-1005, 74A587011, 74A5870111001, 74A587011-1001, 10108998 , 4730-01-255-6634, 01-255-6634, 4730012556634, 012556634
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 23 MAY 1987 | 01-255-6634 | 06078 ( COUPLING, TUBE ) |
Drawings & Photos | NSN 4730-01-255-6634
Demand History | NSN 4730-01-255-6634
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-255-6634 | 2011-07-192 | 3 | DIBBS |
Cross Reference | NSN 4730-01-255-6634
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 74A587004 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 74A587004-1001 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 74A587004-1001 | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 74A587004-1005 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 74A587004-1005 | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 74A587011 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 74A587011-1001 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 74A587011-1001 | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-255-6634
Technical Data | NSN 4730-01-255-6634
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY OVERALL |

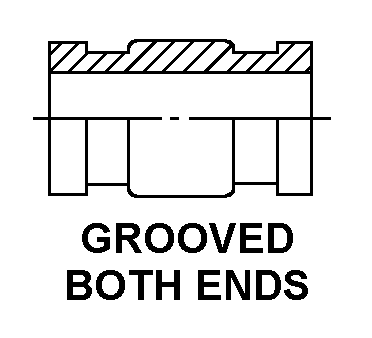

| STYLE DESIGNATOR | A14 GROOVED BOTH ENDS |
| CONNECTION TYPE | UNTHREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B101A GROOVED ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.625 INCHES ALL ENDS |
| TUBING WALL NOMINAL THICKNESS FOR WHICH DESIGNED | 0.032 INCHES ALL ENDS |
| NOMINAL OVERALL LENGTH | 1.660 INCHES |
Restrictions/Controls & Freight Information | NSN 4730-01-255-6634
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136500 | METAL NOI/METAL ALLOYS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-255-6634
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
