NSN 4730-01-245-1917 MCM40021D, MCM-4002-1D, MCM40021DVM
Product Details | SPOOL PIECE
4730-01-245-1917 A straight cut length of pipe fabricated with drilled and faced flanges on each end. It may have steel lifting rings or ears welded longitudinally to the pipe and is generally used for submerged pipeline, fuel loading line, and the like.
Part Alternates: MCM40021D, MCM-4002-1D, MCM40021DVM, MCM-4002-1DVM, PGM1180A1, PGM-1180A-1, PMG1180A1, PMG-1180A-1, DGR4350G PT7, DGR4350G PT7VM, DGR4350GPT7, DGR4350GPT7VM, 4055G131, 4055G13-1, 4730-01-245-1917, 01-245-1917, 4730012451917, 012451917
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 24 NOV 1986 | 01-245-1917 | 11468 ( SPOOL PIECE ) |
Drawings & Photos | NSN 4730-01-245-1917
Demand History | NSN 4730-01-245-1917
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-245-1917 | 2013-11-332 | 2 | DIBBS |
| 4730-01-245-1917 | 2013-06-160 | 3 | DIBBS |
| 4730-01-245-1917 | 2012-03-89 | 1 | DIBBS |
Cross Reference | NSN 4730-01-245-1917
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4055G13-1 | 03502 | GENERAL ELECTRIC CO NAVAL AND DRIVE TURBINE SYSTEMS DEPT |
| DGR4350G PT7 | 16712 | SIEMENS DEMAG DELAVAL TURBOMACHINERY, INC. |
| DGR4350G PT7VM | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| MCM-4002-1D | 37478 | LO-REZ VIBRATION CONTROL LTD DBA LO-REZ |
| MCM-4002-1DVM | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| PGM-1180A-1 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| PGM-1180A-1 | 16712 | SIEMENS DEMAG DELAVAL TURBOMACHINERY, INC. |
| PMG-1180A-1 | 16712 | SIEMENS DEMAG DELAVAL TURBOMACHINERY, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-245-1917
Technical Data | NSN 4730-01-245-1917
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM BRONZE |

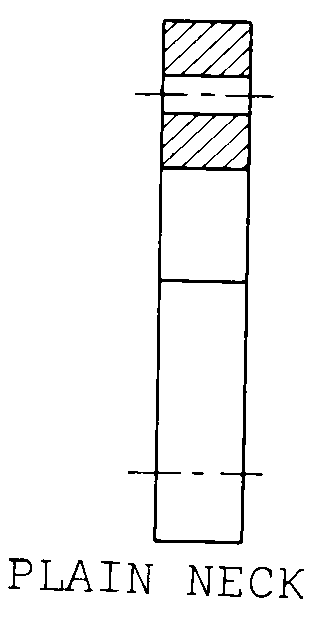

| END STYLE | S7 PLAIN FACE |
| END OUTSIDE DIAMETER | 10.000 INCHES NOMINAL |
| END THICKNESS | 0.875 INCHES NOMINAL |
| END BOLT HOLE QUANTITY | 8 |
| END BOLT HOLE DIAMETER | 0.656 INCHES NOMINAL |
| END BOLT CIRCLE DIAMETER | 8.000 INCHES NOMINAL |
| OVERALL LENGTH | 13.375 INCHES NOMINAL |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | MAGNETIC PERMEABILITY SHALL NOT EXCEED 2.0 AFTER FABRICATION |
| MANUFACTURERS CODE | 37478 |
| DESIGN CONTROL REFERENCE | MCM-4002-1D |
Restrictions/Controls & Freight Information | NSN 4730-01-245-1917
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-245-1917
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
