NSN 4730-01-244-6054 0101120030, 0101120-030, 01045014
Product Details | PIPE FLANGE
4730-01-244-6054 An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified).
Part Alternates: 0101120030, 0101120-030, 01045014, 851030, 851-030 , 4730-01-244-6054, 01-244-6054, 4730012446054, 012446054
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 15 NOV 1986 | 01-244-6054 | 03798 ( FLANGE, PIPE ) |
Drawings & Photos | NSN 4730-01-244-6054
Demand History | NSN 4730-01-244-6054
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 0101120-030 | 2022-01-04 | 1 | DIBBS |
| 01045014 | 2022-01-04 | 1 | DIBBS |
| 851-030 | 2022-01-04 | 1 | DIBBS |
| 0101120-030 | 2022-01-02 | 1 | DIBBS |
| 01045014 | 2022-01-02 | 1 | DIBBS |
| 851-030 | 2022-01-02 | 1 | DIBBS |
| 0101120-030 | 2021-11-313 | 1 | DIBBS |
| 01045014 | 2021-11-313 | 1 | DIBBS |
| 851-030 | 2021-11-313 | 1 | DIBBS |
| 0101120-030 | 2019-09-259 | 4 | DIBBS |
| 01045014 | 2019-09-259 | 4 | DIBBS |
| 851-030 | 2019-09-259 | 4 | DIBBS |
| 4730-01-244-6054 | 2015-11-328 | 2 | DIBBS |
| 4730-01-244-6054 | 2014-08-213 | 2 | DIBBS |
| 4730-01-244-6054 | 2014-07-202 | 2 | DIBBS |
| 4730-01-244-6054 | 2011-06-160 | 10 | DIBBS |
| 4730-01-244-6054 | 2011-02-39 | 20 | DIBBS |
| 4730-01-244-6054 | 2010-07-207 | 5 | DIBBS |
| 4730-01-244-6054 | 2010-04-98 | 5 | DIBBS |
Cross Reference | NSN 4730-01-244-6054
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0101120-030 | 54119 | CLEVELAND SERVICE CENTER |
| 01045014 | 14007 | NIBCO INC |
| 01045014 | 61623 | NIBCO INC CHEMTROL DIV |
| 851-030 | 14007 | NIBCO INC |
| 851-030 | 14889 | GEORGE FISCHER SLOANE INC. |
| 851-030 | 61623 | NIBCO INC CHEMTROL DIV |
| 851-030 | 62531 | SPEARS MFG CO |
| 851-030 | 96405 | LASCO INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-244-6054
Related Products | NSN 4730-01-244-6054
Technical Data | NSN 4730-01-244-6054
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYVINYL CHLORIDE |
| STYLE DESIGNATOR | 1 ROUND, ONE BOLT HOLE CIRCLE |
| BOLT CIRCLE DIAMETER | 6.000 INCHES NOMINAL |
| FLANGE DIAMETER | 7.500 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.625 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 4 |

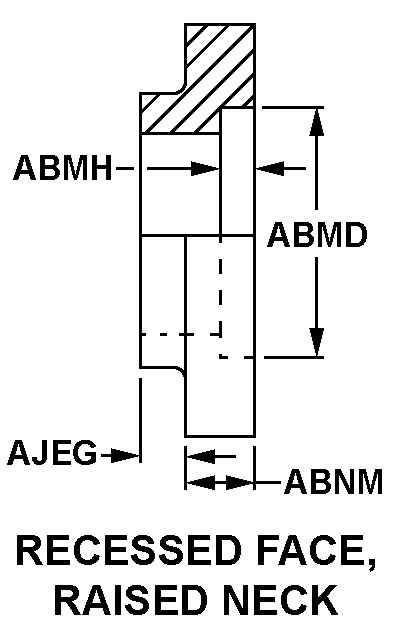

| FLANGE SECTION STYLE | 38 RECESSED FACE, RAISED NECK |
