NSN 4730-01-243-5204 R44117T14, R44117T-14, 01-243-5204
Product Details | TUBE CAP
4730-01-243-5204 A tube fitting primarily designed for permanent installation during tubing system operation to fit over or butt against a tube or fitting for sealing. See also CAP, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.
Part Alternates: R44117T14, R44117T-14, 4730-01-243-5204, 01-243-5204, 4730012435204, 012435204
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 28 OCT 1986 | 01-243-5204 | 06074 ( CAP, TUBE ) |

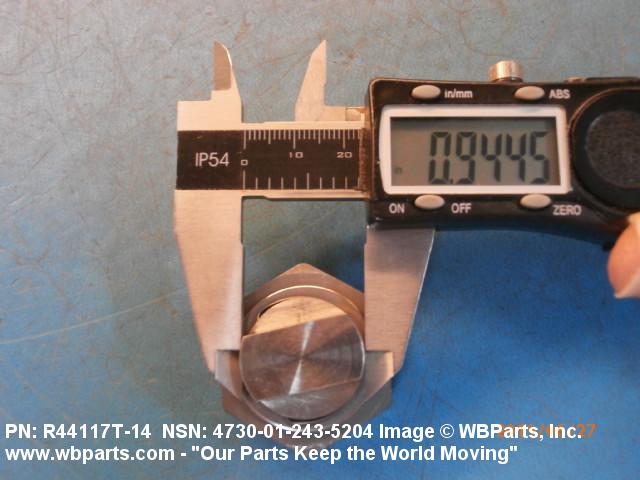

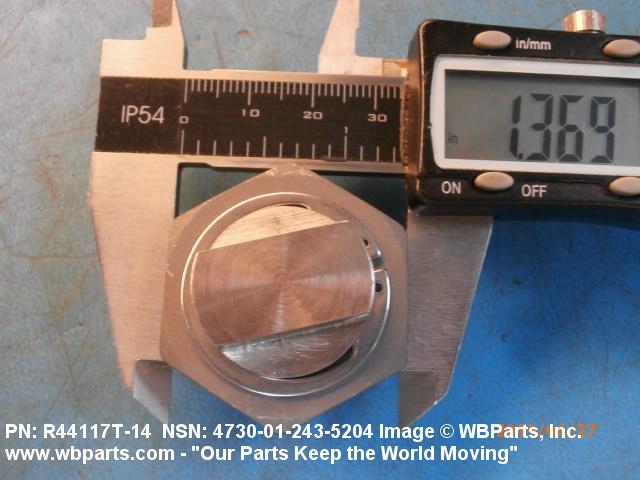

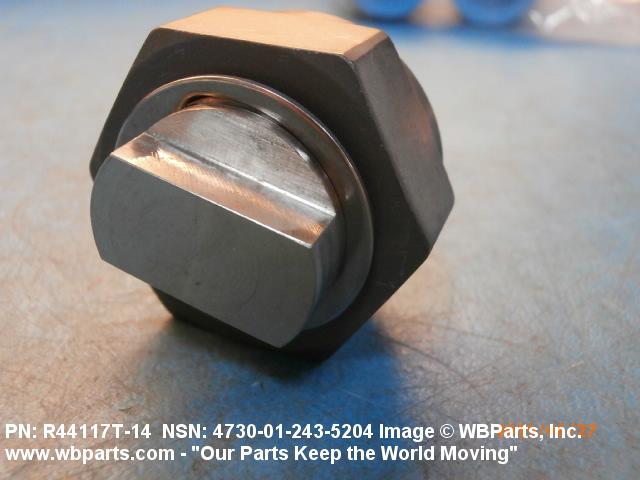

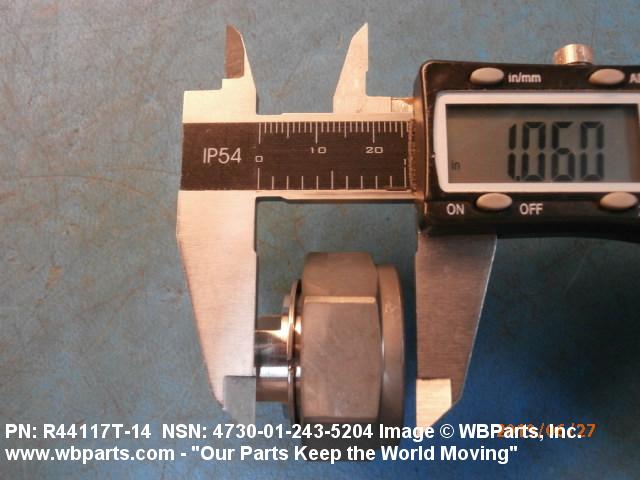

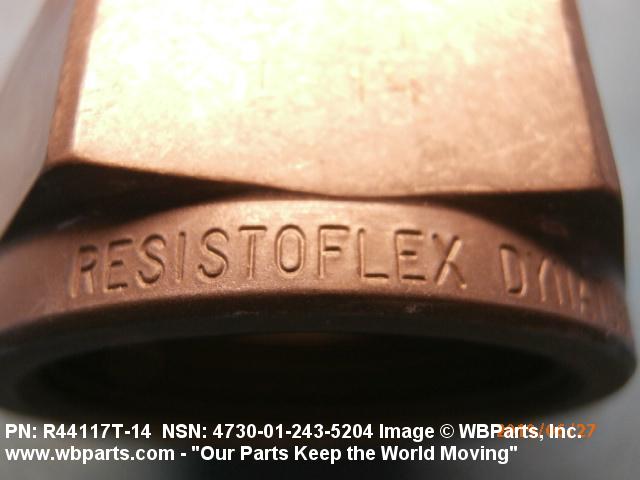

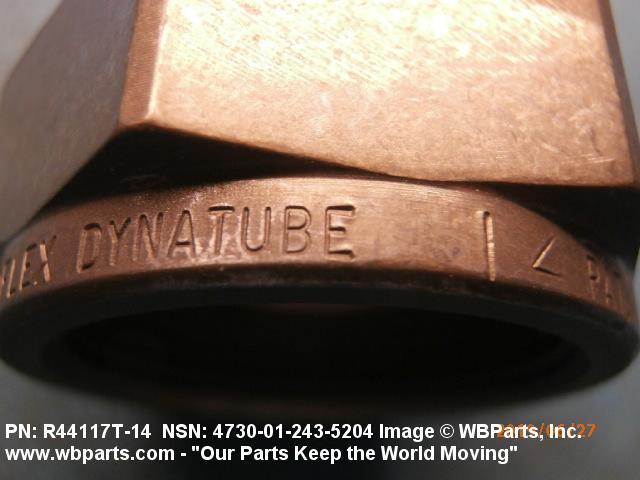

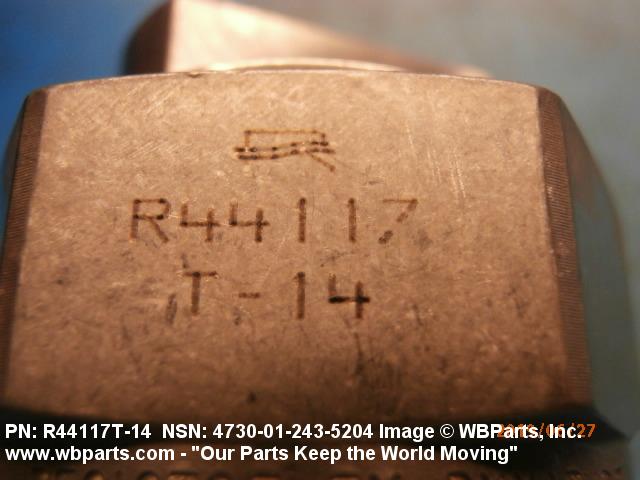

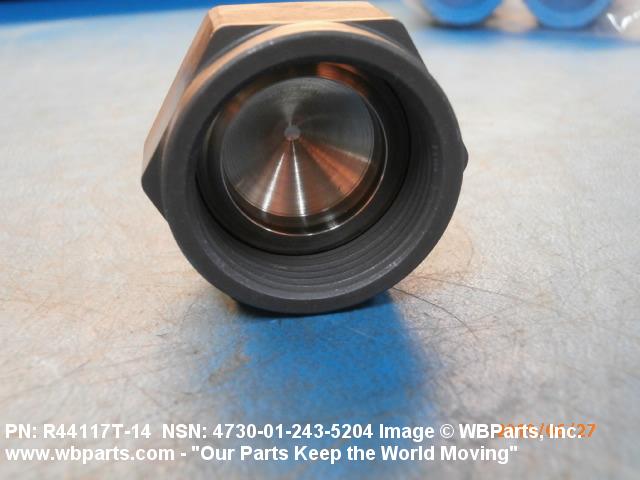

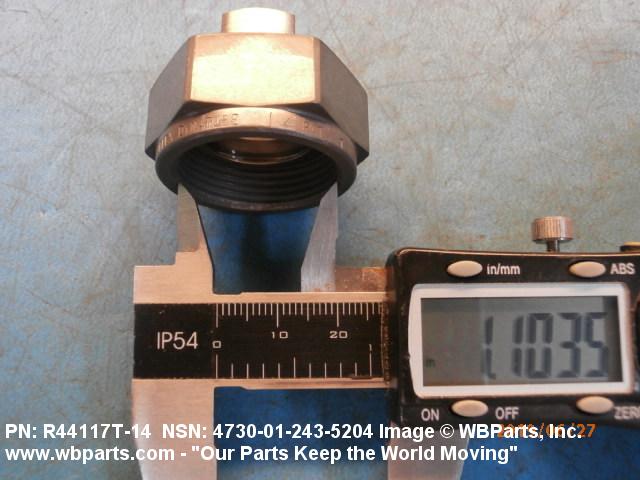

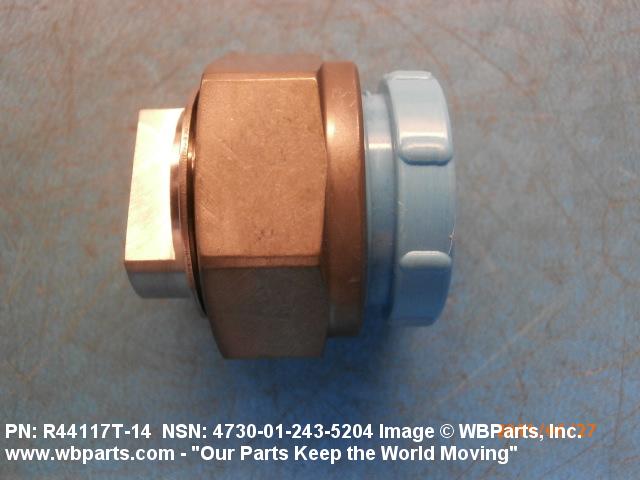

Drawings & Photos | NSN 4730-01-243-5204
Demand History | NSN 4730-01-243-5204
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| R44117T14 | 2024-11-316 | 10 | United States |
| R44117T14 | 2024-10-288 | 10 | United States |
| R44117T-14 | 2024-04-105 | 34 | DIBBS |
| R44117T-14 | 2023-10-288 | 38 | DIBBS |
| R44117T-14 | 2023-06-177 | 22 | DIBBS |
| R44117T-14 | 2022-10-289 | 42 | DIBBS |
| R44117T-14 | 2022-06-173 | 42 | DIBBS |
| R44117T-14 | 2022-02-48 | 25 | DIBBS |
| R44117T-14 | 2020-10-281 | 81 | DIBBS |
| 4730-01-243-5204 | 2019-04-109 | 10 | United States |
| R44117T-14 | 2019-02-45 | 55 | DIBBS |
| R44117T-14 | 2019-01-31 | 55 | DIBBS |
| 4730-01-243-5204 | 2017-11-306 | 48 | DIBBS |
| 4730-01-243-5204 | 2016-05-126 | 107 | DIBBS |
| 4730-01-243-5204 | 2015-08-228 | 94 | DIBBS |
| 4730-01-243-5204 | 2014-08-236 | 79 | DIBBS |
| 4730-01-243-5204 | 2013-10-275 | 39 | DIBBS |
| 4730-01-243-5204 | 2013-06-157 | 13 | DIBBS |
| 4730-01-243-5204 | 2009-12-338 | 32 | DIBBS |
| 4730-01-243-5204 | 2009-05-135 | 36 | DIBBS |
| 4730-01-243-5204 | 2009-04-97 | 15 | DIBBS |
Cross Reference | NSN 4730-01-243-5204
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| R44117T-14 | 50599 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-243-5204
Related Products | NSN 4730-01-243-5204
Technical Data | NSN 4730-01-243-5204
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | RES 143 6A1-4V ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | A14 CAP, TUBE, FLARELESS |
| CONNECTION STYLE | G6 PRESSURE SEAL FLARELESS |
| THREAD SERIES DESIGNATOR | UNJ INTERNAL |
| NOMINAL THREAD SIZE | 1.1250 INCHES INTERNAL |

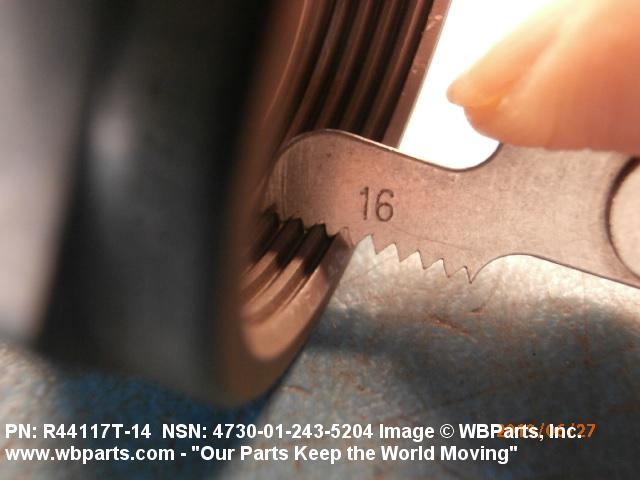

| THREAD QUANTITY PER INCH | 16 INTERNAL |
| THREAD CLASS | 3B INTERNAL |
| THREAD DIRECTION | RIGHT-HAND INTERNAL |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.8750 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4730-01-243-5204
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051420 | CONDUITS,O/T EARTHEN:PIPE FITTINGS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | ZC | Canada ZD ZE |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-243-5204
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
