NSN 4730-01-240-6534 3PHS11112, 3PHS111-12, 4P0211112L

Product Details | TUBE COUPLING

4730-01-240-6534 A straight fitting 12 inches (304 mm) long or under having the same or different type of connection of the same size on both ends. It is designed to join a tube or tube fitting to another tube or tube fitting. Excludes fittings with threaded external connections on both ends. Excludes NIPPLE, PIPE.

Part Alternates: 3PHS11112, 3PHS111-12, 4P0211112L, 4P02111-12L, 4730-01-240-6534, 01-240-6534, 4730012406534, 012406534

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	16 SEP 1986	01-240-6534	06078 ( COUPLING, TUBE )

Drawings & Photos | NSN 4730-01-240-6534

Part Number	Request Date	QTY	Origin
4730-01-240-6534	2012-04-97	26	DIBBS
4730-01-240-6534	2010-12-355	2	DIBBS
4730-01-240-6534	2010-11-322	2	DIBBS
4730-01-240-6534	2010-09-246	2	DIBBS
4730-01-240-6534	2010-07-207	2	DIBBS
4730-01-240-6534	2010-05-131	2	DIBBS
4730-01-240-6534	2010-03-74	2	DIBBS

Cross Reference | NSN 4730-01-240-6534

Part Number	Cage Code	Manufacturer
3PHS111-12	30974	AEROFIT, LLC
4P02111-12L	06090	TYCO ELECTRONICS CORPORATION
4P02111-12L	0S644	O J S SERVICES INC
4P02111-12L	0S664	ADVANCED METAL COMPONENTS INC
4P02111-12L	30974	AEROFIT, LLC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-240-6534

Compare

Related Products | NSN 4730-01-240-6534

4730-01-240-6535, 4730-01-240-6536, 4730-01-240-6586, 4730-01-240-6617, 4730-01-240-6633

Technical Data | NSN 4730-01-240-6534

Characteristic	Specifications
MATERIAL	NICKEL AND TITANIUM OVERALL

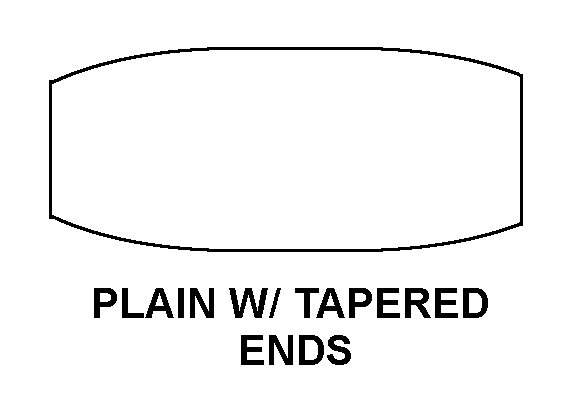

STYLE DESIGNATOR	A26 PLAIN W/TAPERED ENDS
NOMINAL OVERALL LENGTH	2.055 INCHES
SPECIAL FEATURES	U/O MULTIACFT;0.959 IN. OD;0.750 IN. OD TUBE;SHRINKABLE SHAPE MEMORY
MANUFACTURERS CODE	30974
DESIGN CONTROL REFERENCE	3PHS111-12

Restrictions/Controls & Freight Information | NSN 4730-01-240-6534

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating	U	50
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	SE	San Antonio Air Logistics Center Kelly AFB, TX 78241-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling	Z	No special handling required.
Special Handling Code	Z	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-01-240-6534

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
