NSN 4730-01-225-0465 VHN1212EMMHO, VHN12-12-EM-MHO, 810141
Product Details | QUICK DISCONNECT COUPLING HALF
4730-01-225-0465 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: VHN1212EMMHO, VHN12-12-EM-MHO, 810141, 81014-1, 4730-01-225-0465, 01-225-0465, 4730012250465, 012250465
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 26 JAN 1986 | 01-225-0465 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |
Drawings & Photos | NSN 4730-01-225-0465
Demand History | NSN 4730-01-225-0465
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 81014-1 | 2024-10-305 | 37 | DIBBS |
| VHN12-12EM | 2024-10-305 | 37 | DIBBS |
| 81014-1 | 2024-05-144 | 22 | DIBBS |
| VHN12-12EM | 2024-05-144 | 22 | DIBBS |
| 81014-1 | 2023-12-341 | 66 | DIBBS |
| VHN12-12-EM-MHO | 2023-12-341 | 66 | DIBBS |
| 81014-1 | 2022-04-111 | 43 | DIBBS |
| VHN12-12-EM-MHO | 2022-04-111 | 43 | DIBBS |
| 81014-1 | 2022-01-02 | 36 | DIBBS |
| VHN12-12-EM-MHO | 2022-01-02 | 36 | DIBBS |
| 810141 | 2021-02-33 | 13 | United States |
| 4730-01-225-0465 | 2020-11-332 | 2 | TR |
| 4730-01-225-0465 | 2020-11-331 | 2 | TR |
| 4730-01-225-0465 | 2020-05-141 | 2 | United States |
| 4730-01-225-0465 | 2019-08-240 | 2 | Canada |
| 4730-01-225-0465 | 2018-08-214 | 2 | Singapore |
| 4730-01-225-0465 | 2015-11-306 | 4 | United States |
| 4730-01-225-0465 | 2015-10-302 | 4 | United States |
| 4730-01-225-0465 | 2011-10-278 | 567 | DIBBS |
| 4730-01-225-0465 | 2011-08-238 | 450 | DIBBS |
| 4730-01-225-0465 | 2011-07-195 | 474 | DIBBS |
| 4730-01-225-0465 | 2011-07-190 | 318 | DIBBS |
| 4730-01-225-0465 | 2010-12-349 | 373 | DIBBS |
| 4730-01-225-0465 | 2010-03-64 | 350 | DIBBS |
| 4730-01-225-0465 | 2009-09-244 | 441 | DIBBS |
| 4730-01-225-0465 | 2009-05-121 | 347 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-225-0465
Related Products | NSN 4730-01-225-0465
Technical Data | NSN 4730-01-225-0465
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY |
| SURFACE TREATMENT | CADMIUM BODY |
| STYLE DESIGNATOR | A1 MALE COUPLING HALF |
| CONNECTION TYPE | THREADED EXTERNAL BOSS FIRST FLUID END CONNECTION INTERNAL QUICK DISCONNECT ALL ENDS |

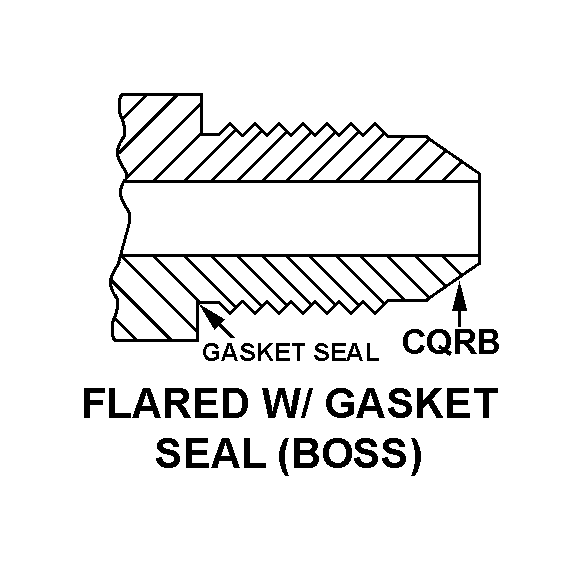

| CONNECTION STYLE | D20 FLARED W/GASKET SEAL (BOSS) ALL ENDS |
| QUICK DISCONNECT METHOD | PUSH-PULL ALL ENDS |
| QUICK DISCONNECT NOMINAL SIZE | 0.750 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNF ALL ENDS |
| NOMINAL THREAD SIZE | 1.062 INCHES ALL ENDS |
| THREAD CLASS | 2A ALL ENDS |
| FURNISHED ITEMS AND QUANTITY | 1 SEAL |
| SPECIAL FEATURES | SEAL MATERIAL,MILITARY VARIATION OF BUNA N FOR MIL-H-5606 FLUIDS |
| (NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 3500.0 POUNDS PER SQUARE INCH ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 4730-01-225-0465
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126880 | POWER TRANS SHAFTING PULLEYS |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-225-0465
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
