NSN 4730-01-219-3111 MS51532B12S, MS51532-B12S, 12FNTXB
Product Details | TUBE CAP
4730-01-219-3111 A tube fitting primarily designed for permanent installation during tubing system operation to fit over or butt against a tube or fitting for sealing. See also CAP, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.
Part Alternates: MS51532B12S, MS51532-B12S, 12FNTXB, 12-FNTX-B, 4730-01-219-3111, 01-219-3111, 4730012193111, 012193111
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 25 OCT 1985 | 01-219-3111 | 06074 ( CAP, TUBE ) |
Drawings & Photos | NSN 4730-01-219-3111
Demand History | NSN 4730-01-219-3111
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-219-3111 | 2022-10-284 | 4 | ES |
| MS51532B12S | 2022-09-250 | 1 | ES |
| MS51532B12S | 2018-10-282 | 2 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-219-3111
Related Products | NSN 4730-01-219-3111
Technical Data | NSN 4730-01-219-3111
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A10 CAP |
| CONNECTION STYLE | G3 FLARE |
| THREAD SERIES DESIGNATOR | UNF INTERNAL |
| NOMINAL THREAD SIZE | 0.750 INCHES INTERNAL |
| THREAD CLASS | 2B INTERNAL |
| THREAD DIRECTION | RIGHT-HAND INTERNAL |

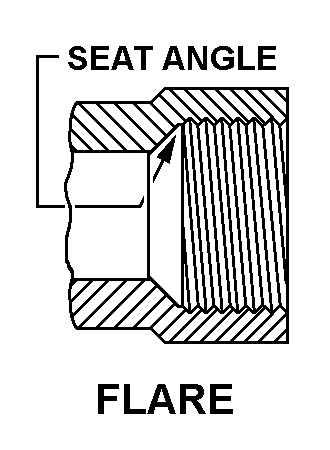

| SEAT ANGLE | 37.0 DEGREES |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.750 INCHES NOMINAL |
| SPECIAL FEATURES | MATERIAL WILL BE IN ACCORDANCE WITH SHIPS PARTS CONTROL CENTER ACTIVITY HX QUALITY CONTROL, MANUFACTURING AND TESTING SPECIFICATIONS |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| MANUFACTURERS CODE | 96906 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51532-B12S |
Restrictions/Controls & Freight Information | NSN 4730-01-219-3111
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | F | Munitions List Item or Commerce Control List Item. Demilitarization required. Demilitarization Instructions to be furnished by the Item/Technical Manager. |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | C | The item has critical features such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | HX | Navy ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-219-3111
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | X3 | Nuclear Reactor Plant (NRP) material under the technical cognizance of the NAVSEA 08 special designed, manufactured and/or treated for use in a NRP or controls thereof. This category includes all other NRP items which are not coded X2 or X4. |
| Issue Repair, or Requisition | BL | Submit/refer requisitions to NAVICP MECH. Centralized control for issue of repair parts for specific programs/equipments. |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
