NSN 4730-01-219-1391 HNR0003E16, LE27300781016, LE273-0078-1016

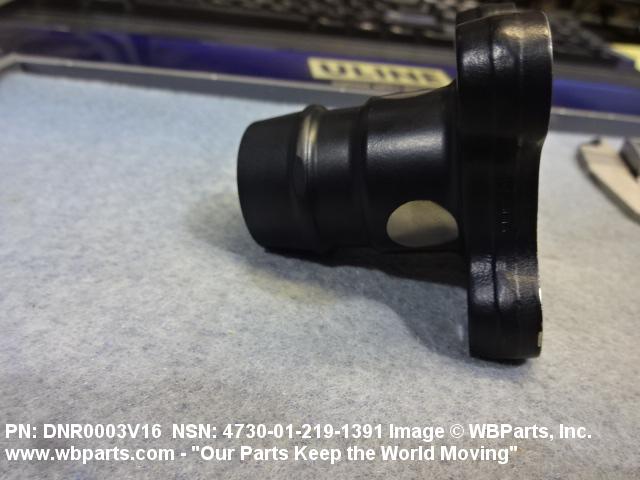

Product Details | FLANGE TO TUBE STRAIGHT ADAPTER

4730-01-219-1391 An adapter having a flange connection on one end designed to connect with another flange connection or a compression type mounting pad. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It is designed to join a flange or flange fitting to a tube or tube fitting in a straight line.

Part Alternates: HNR0003E16, LE27300781016, LE273-0078-1016, LNR0003V16, LNR83242V16, DNR0003, DNR0003V16, 4730-01-219-1391, 01-219-1391, 4730012191391, 012191391

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	22 OCT 1985	01-219-1391	29657 ( ADAPTER, STRAIGHT, FLANGE TO TUBE )

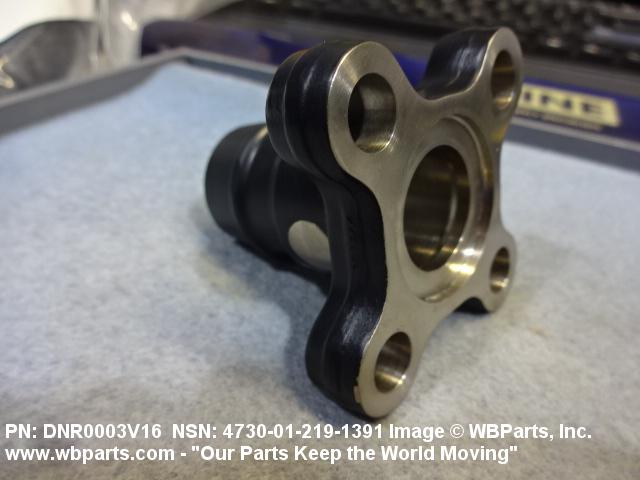

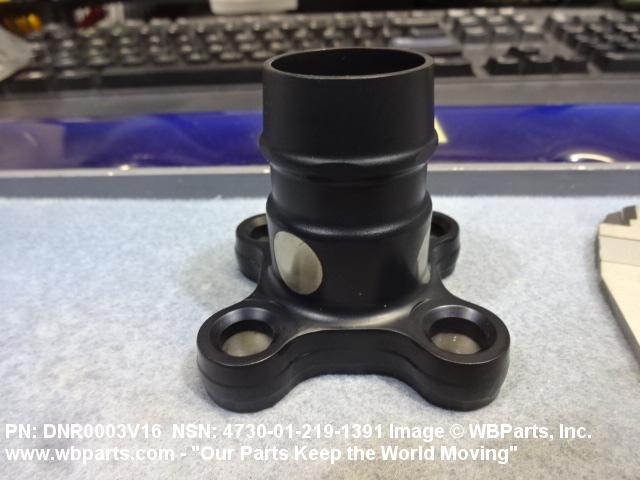

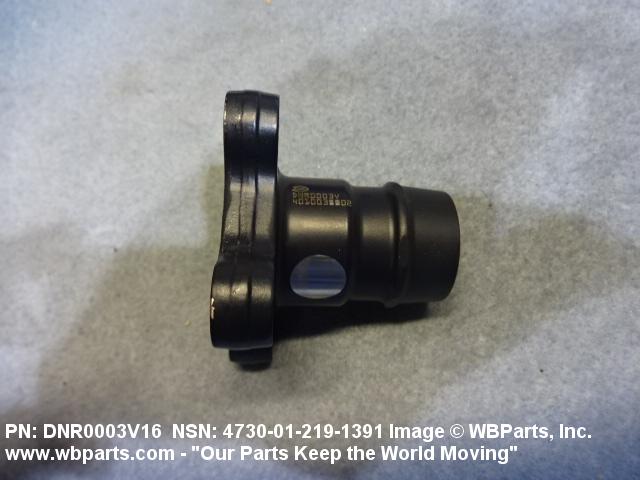

Drawings & Photos | NSN 4730-01-219-1391

Part Number	Request Date	QTY	Origin
DNR0003V16	2023-12-344	6	DIBBS
DNR0003V16	2023-11-332	3	DIBBS
4730-01-219-1391	2018-09-270	20	us
4730-01-219-1391	2018-06-176	20	DIBBS
4730-01-219-1391	2018-06-165	20	DIBBS
4730-01-219-1391	2017-10-288	3	DIBBS
4730-01-219-1391	2017-06-164	8	DIBBS
4730-01-219-1391	2017-02-45	17	DIBBS
4730-01-219-1391	2016-11-314	27	DIBBS
4730-01-219-1391	2016-04-119	27	DIBBS
4730-01-219-1391	2013-02-58	24	DIBBS
4730-01-219-1391	2012-08-243	22	DIBBS
4730-01-219-1391	2012-07-193	10	DIBBS
4730-01-219-1391	2010-11-313	30	DIBBS
4730-01-219-1391	2010-11-307	10	DIBBS
4730-01-219-1391	2009-12-338	6	DIBBS

Cross Reference | NSN 4730-01-219-1391

Part Number	Cage Code	Manufacturer

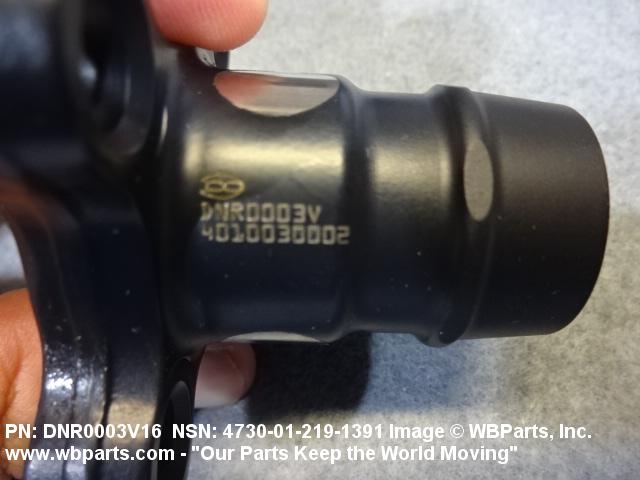

DNR0003	14798	DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE
DNR0003V16	14798	DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE
HNR0003E16	08199	EATON AEROSPACE
LE273-0078-1016	43999	BOEING COMPANY, THE DBA BOEING
LNR0003V16	00624	EATON CORPORATION DBA AEROSPACE DIV
LNR83242V16	00624	EATON CORPORATION DBA AEROSPACE DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-219-1391

Compare

Related Products | NSN 4730-01-219-1391

4730-01-219-1424, 4730-01-219-1447, 4730-01-219-1448, 4730-01-219-1468, 4730-01-219-1489

Technical Data | NSN 4730-01-219-1391

Characteristic	Specifications

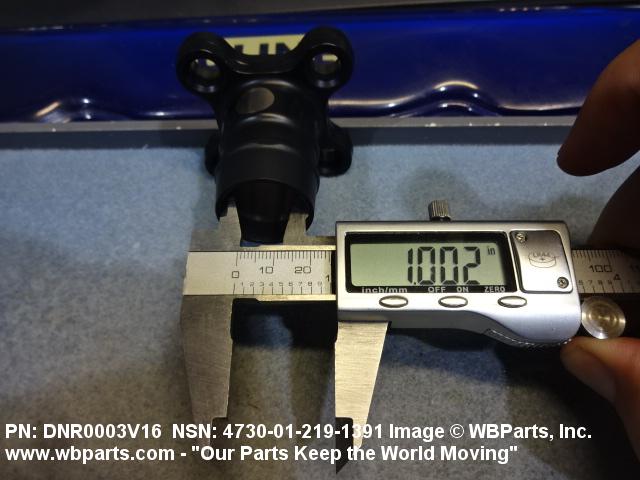

NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	1.000 INCHES 1ST END
MAXIMUM OPERATING PRESSURE	5000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE

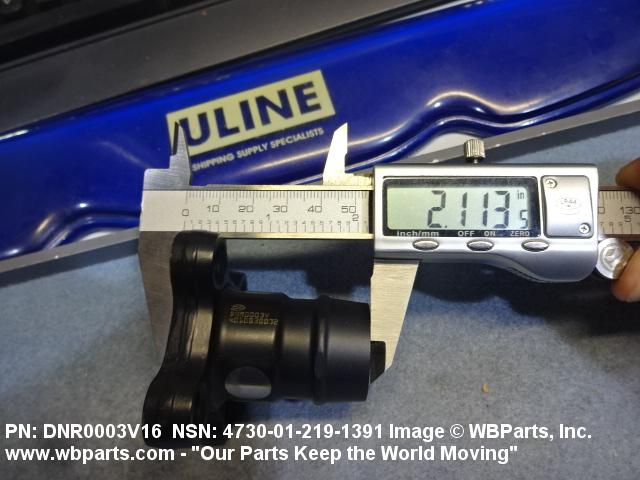

NOMINAL OVERALL LENGTH	2.110 INCHES
MATERIAL	TITANIUM ALLOY OVERALL

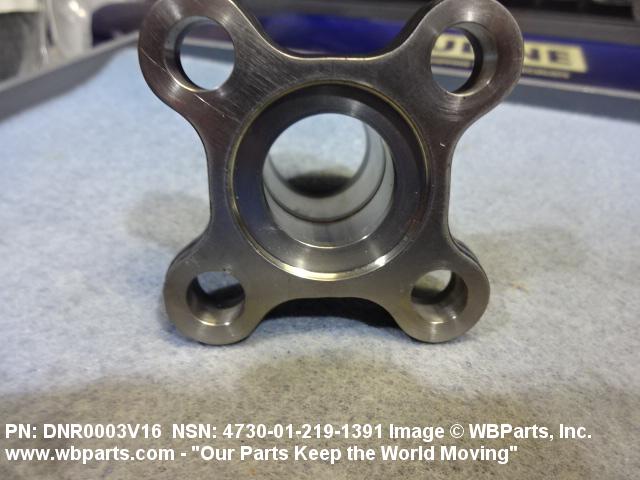

BOLT HOLE QUANTITY	4 2ND END

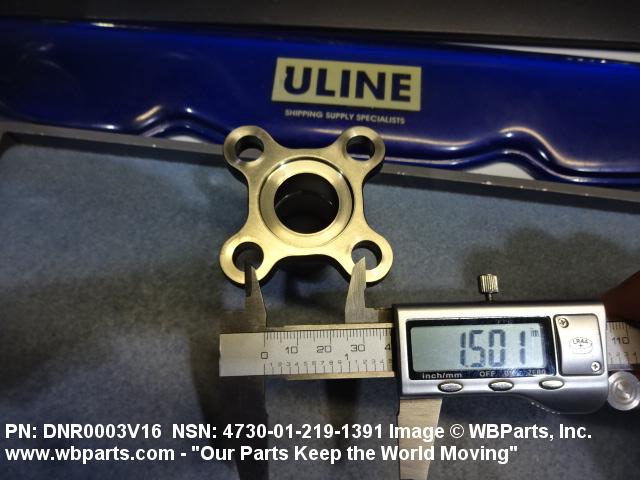

CENTER TO CENTER NOMINAL DISTANCE BETWEEN BOLT HOLES ALONG LENGTH	1.500 INCHES 2ND END
CENTER TO CENTER NOMINAL DISTANCE BETWEEN BOLT HOLES ALONG WIDTH	1.500 INCHES 2ND END
CONNECTION TYPE	FLANGE 2ND END

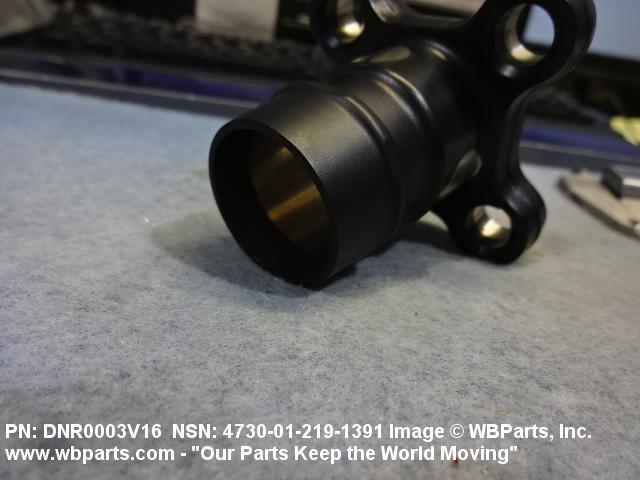

CONNECTION TYPE	UNTHREADED INTERNAL TUBE 1ST END
FLANGE FACE DESIGN	PLAIN 2ND END
CONNECTION STYLE	SWAGED W/ GROOVES (TUBE) 1ST END
FLANGE SHAPE	RECTANGULAR WITH HOLES 2ND END
