NSN 4730-01-200-4289 AN9196C, AN919-6C, AN9196J
Product Details | BOSS REDUCER

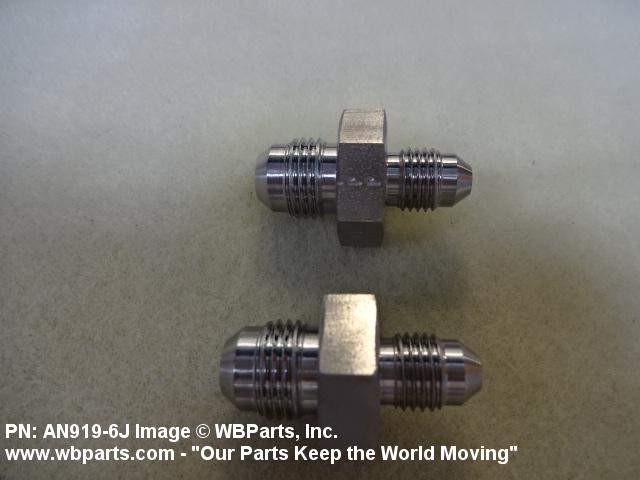

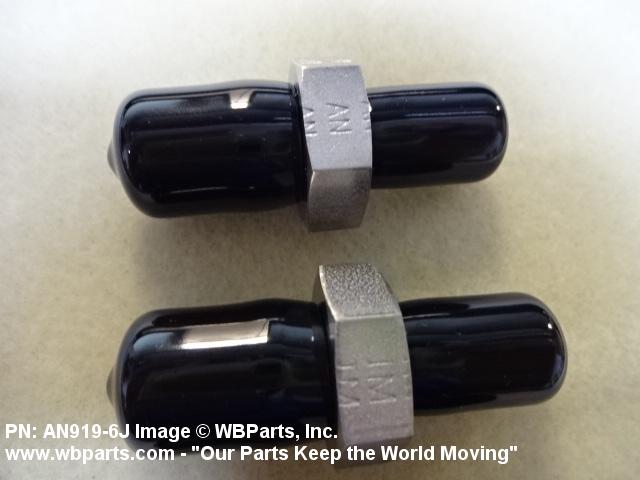

4730-01-200-4289 A straight fitting having a boss connection of a different size at each end. Both connections have external or internal machine threads (straight threads other than pipe or hose series) and are designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. Excludes BUSHING (as modified).
Part Alternates: AN9196C, AN919-6C, AN9196J, AN919-6J, AS4841, AS5174, AS5174J0604, 4730-01-200-4289, 01-200-4289, 4730012004289, 012004289
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 04 FEB 1985 | 01-200-4289 | 23541 ( REDUCER, BOSS ) |

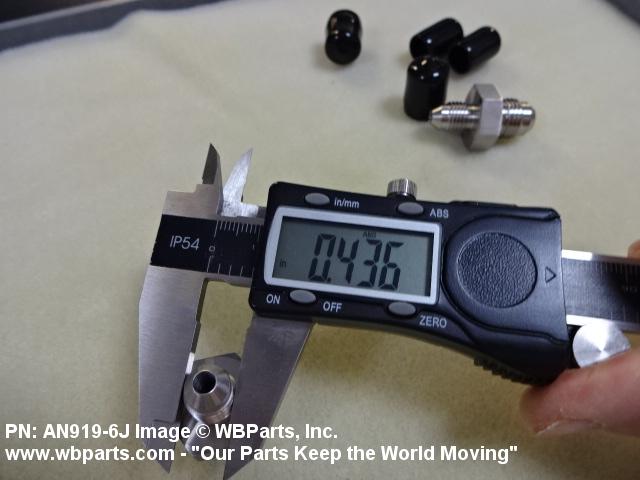

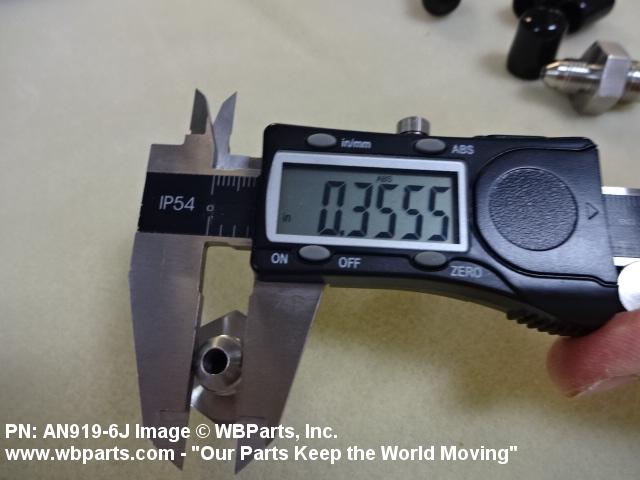

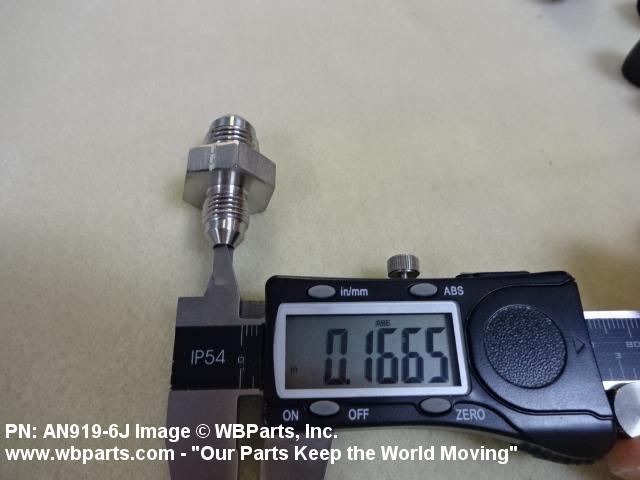

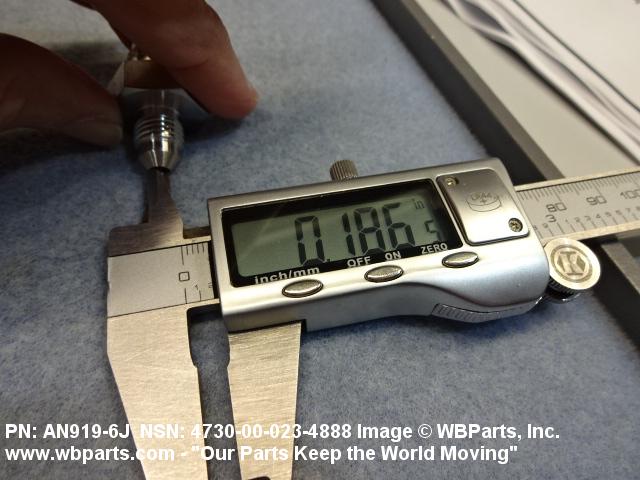

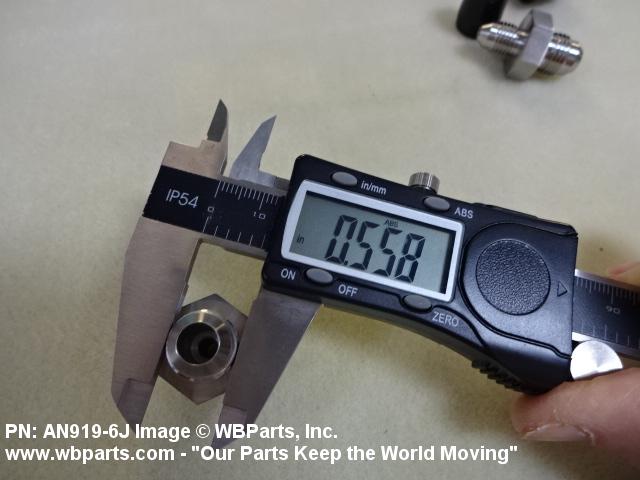

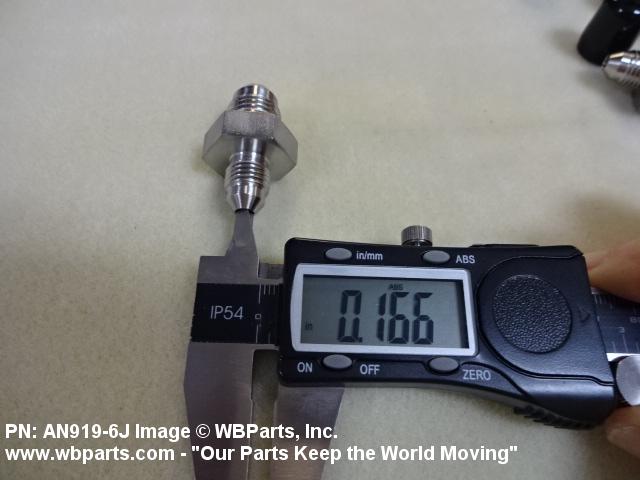

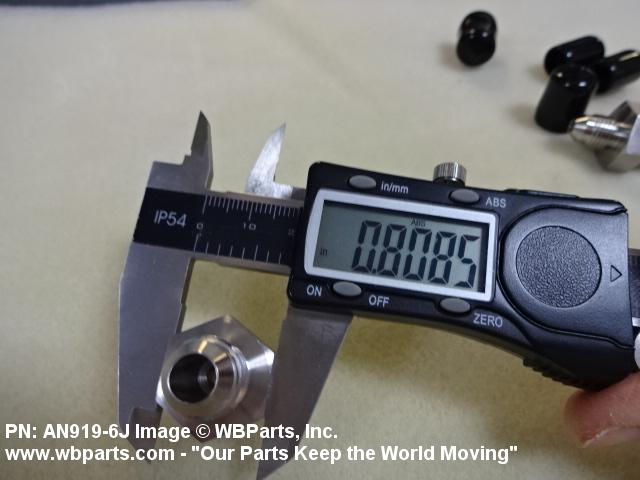

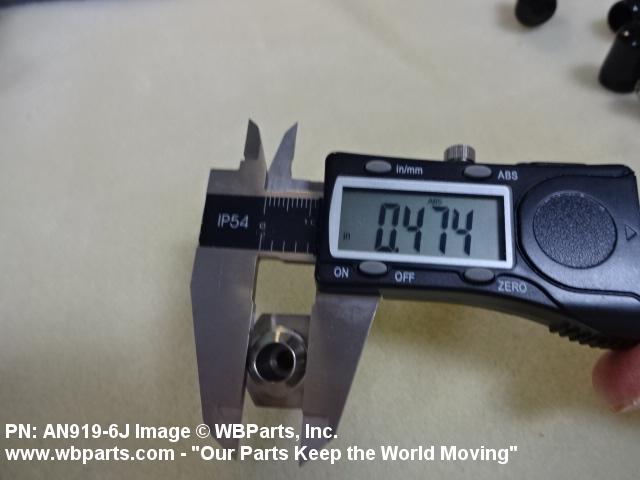

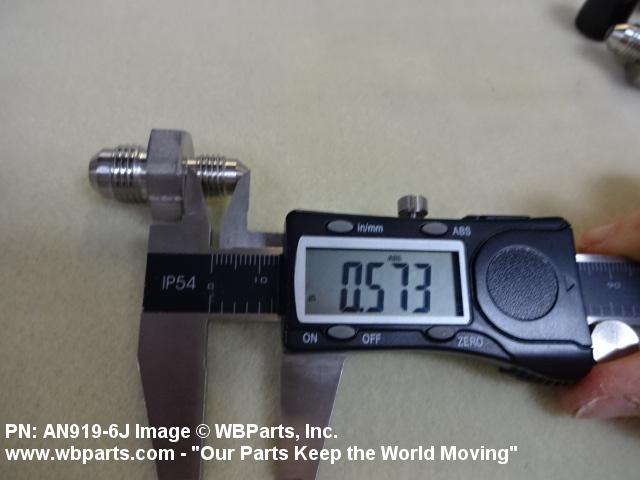

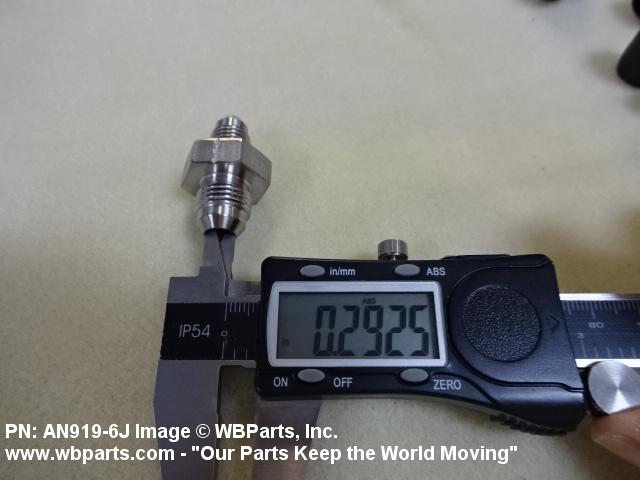

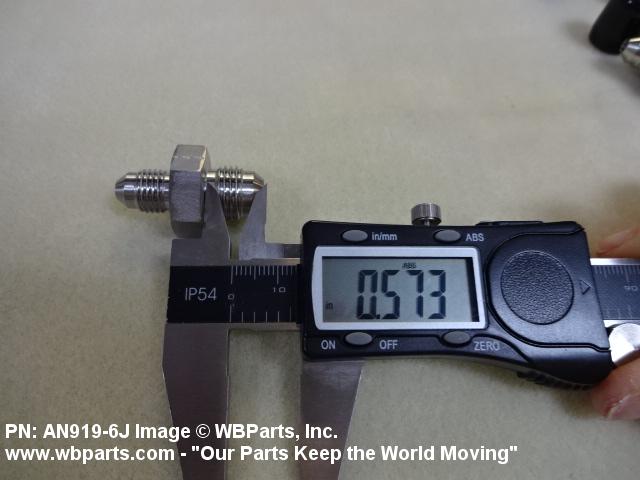

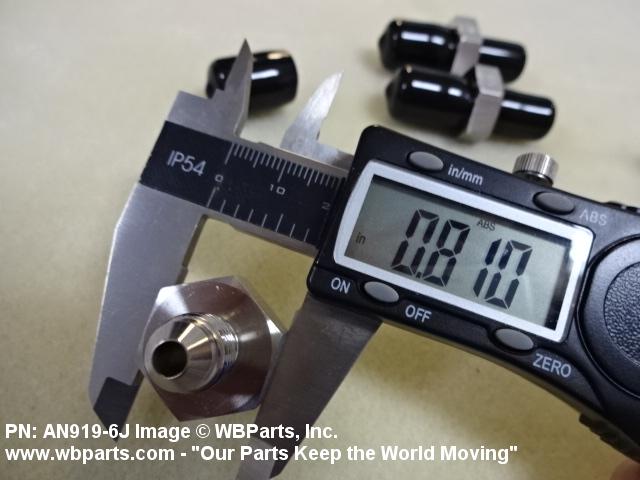

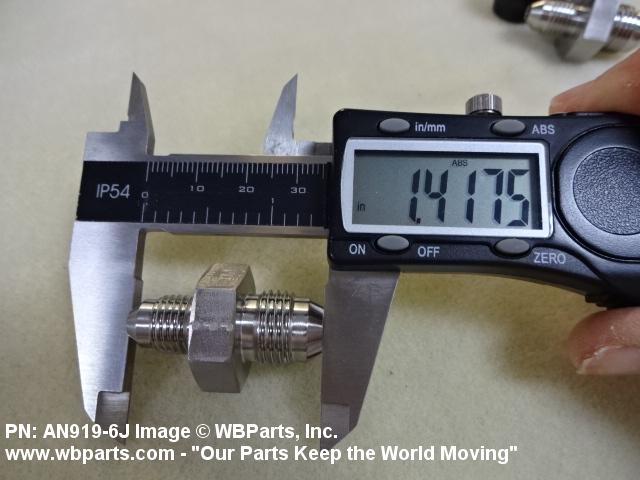

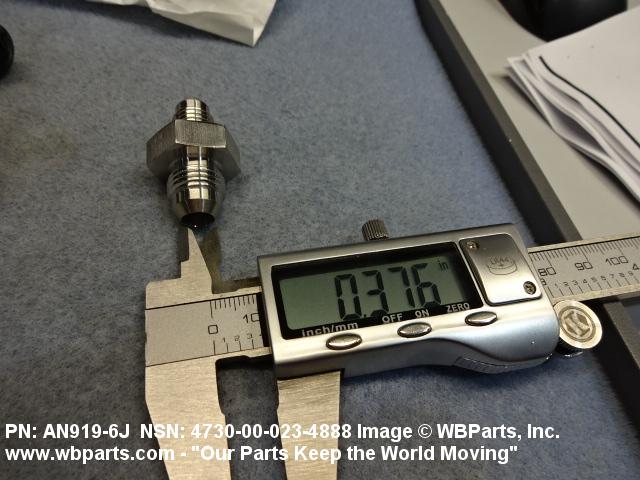

Drawings & Photos | NSN 4730-01-200-4289
