NSN 4730-01-196-7474 02309020, 023-09020, 02309020000
Product Details | TUBE ELBOW
4730-01-196-7474 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: 02309020, 023-09020, 02309020000, 023-09020-000, 36437846, 364-37846, 364-37846 PIECE 106, 36437846PIECE106, 4730-01-196-7474, 01-196-7474, 4730011967474, 011967474
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 14 DEC 1984 | 01-196-7474 | 03771 ( ELBOW, TUBE ) |

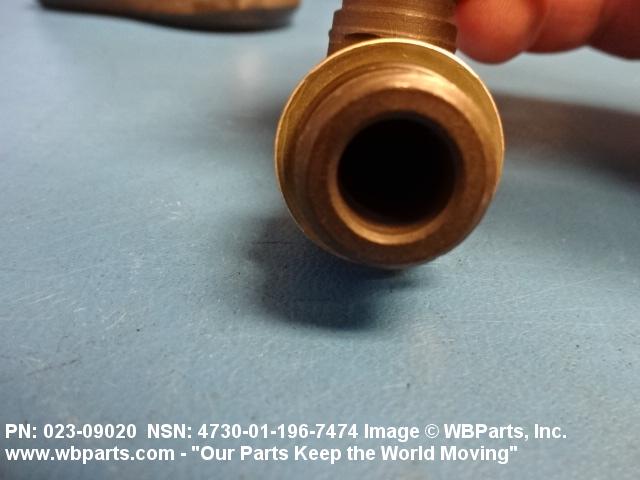

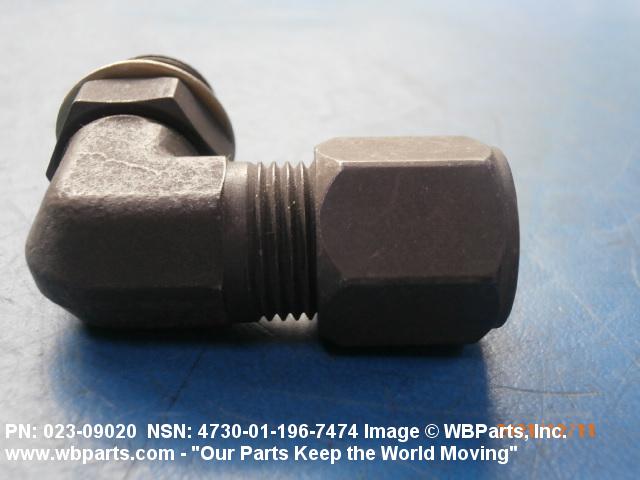

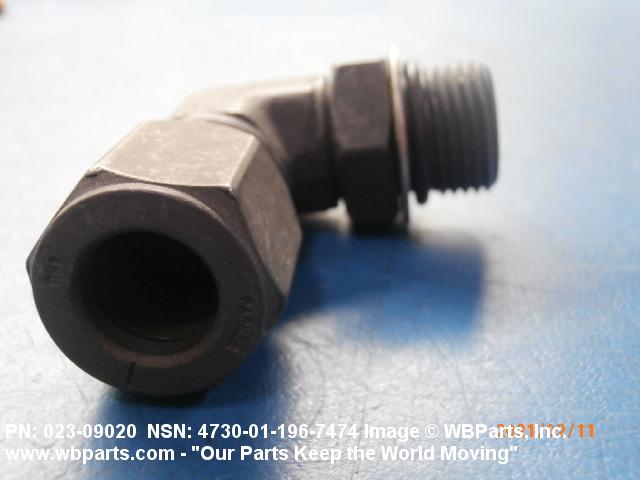

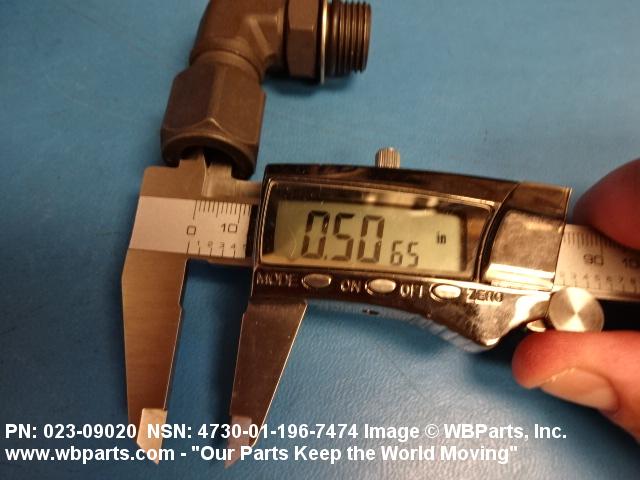

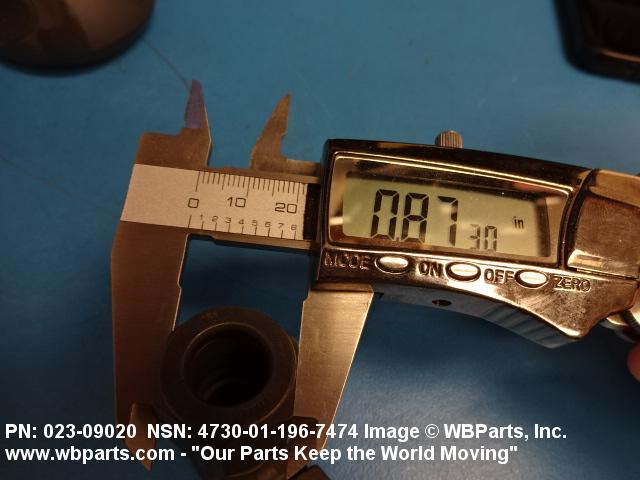

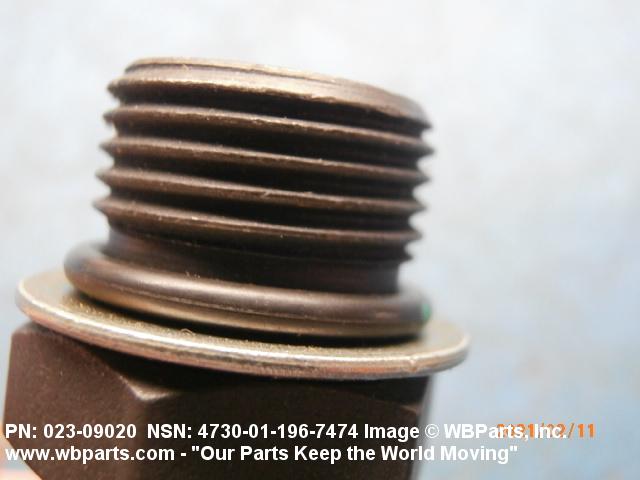

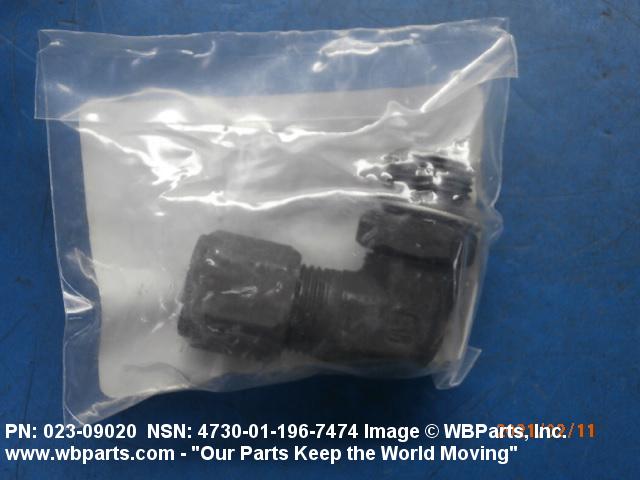

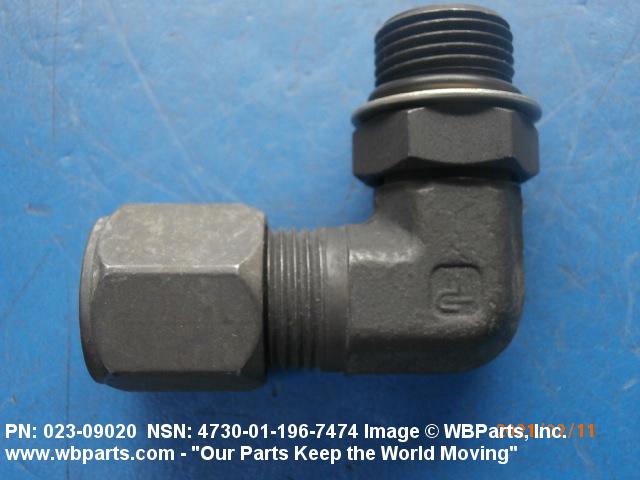

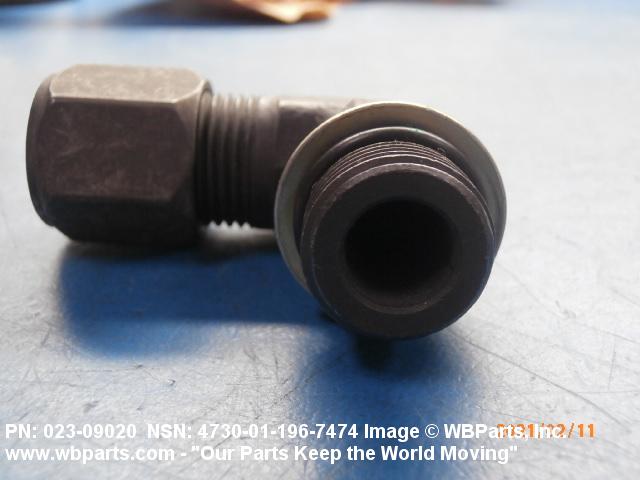

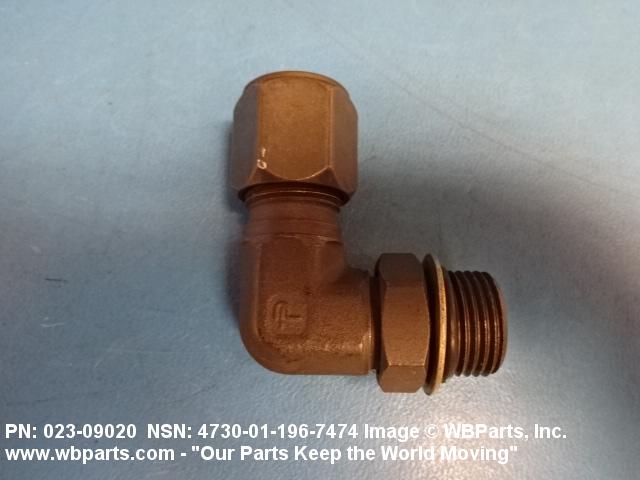

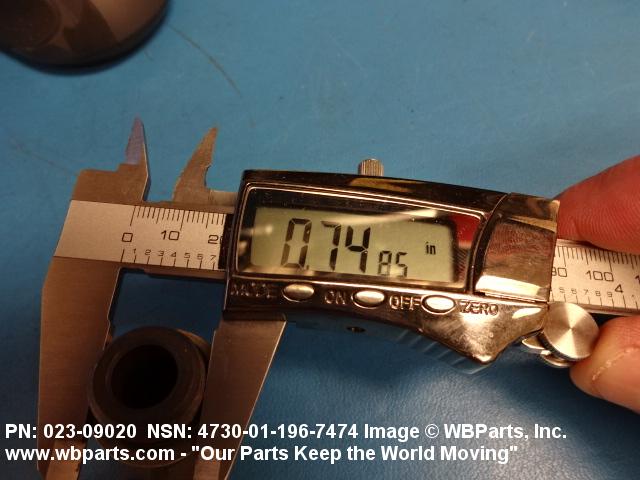

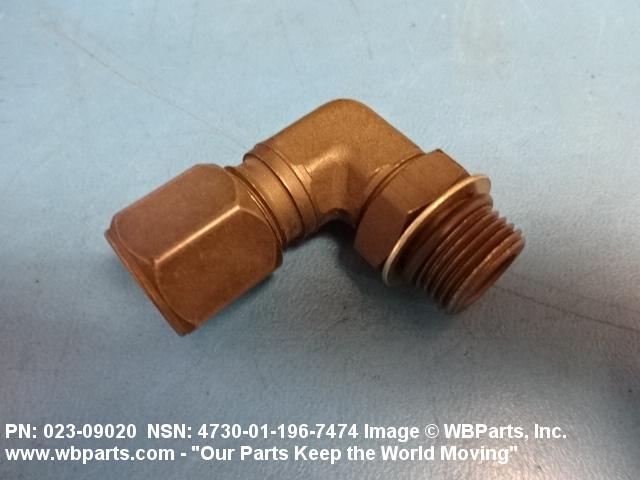

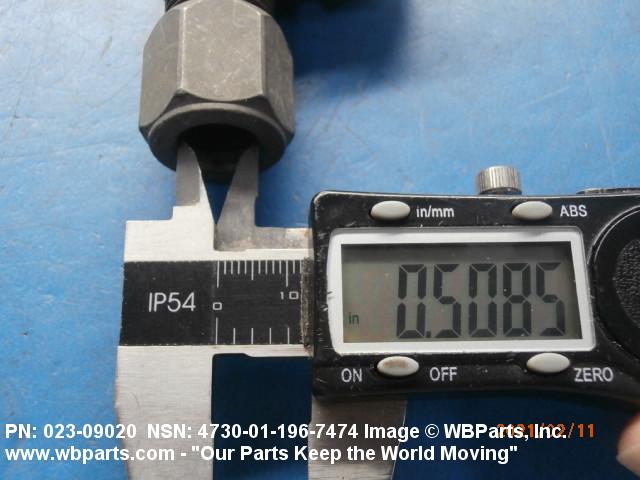

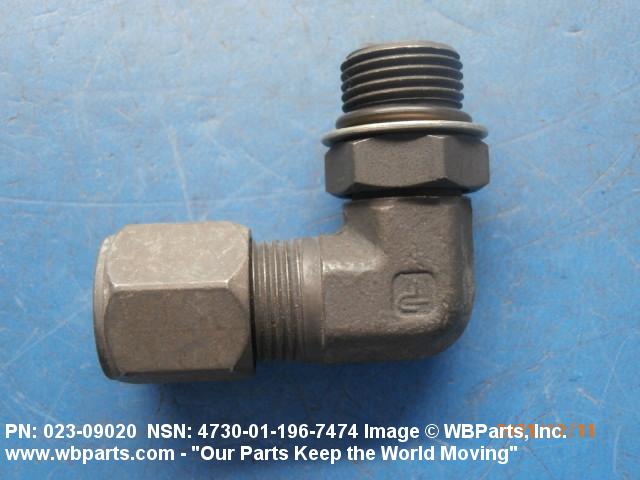

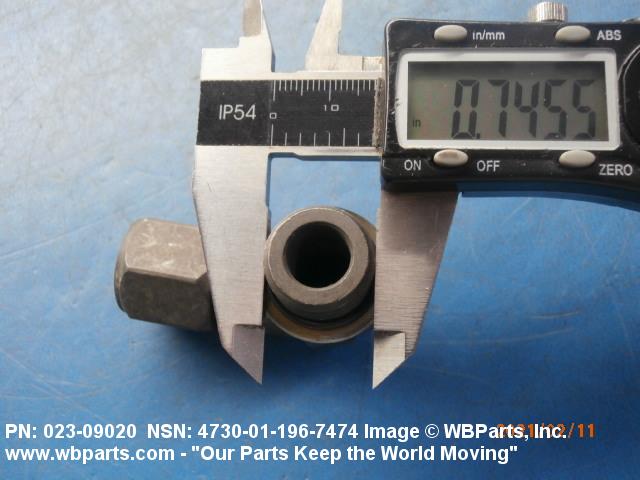

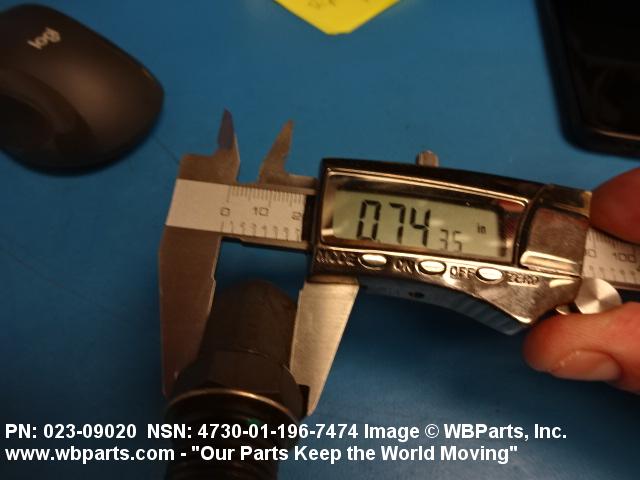

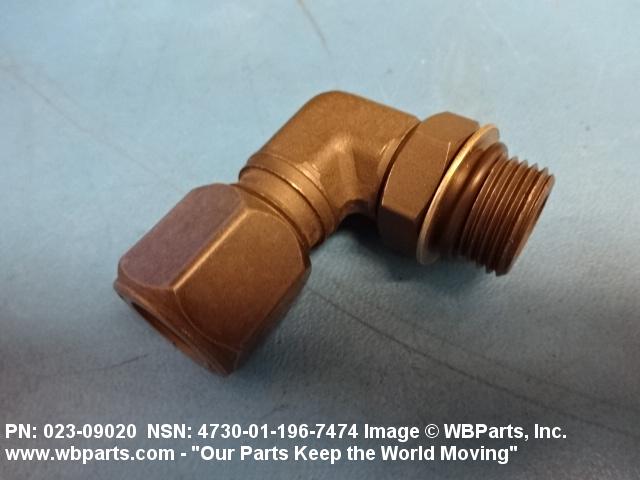

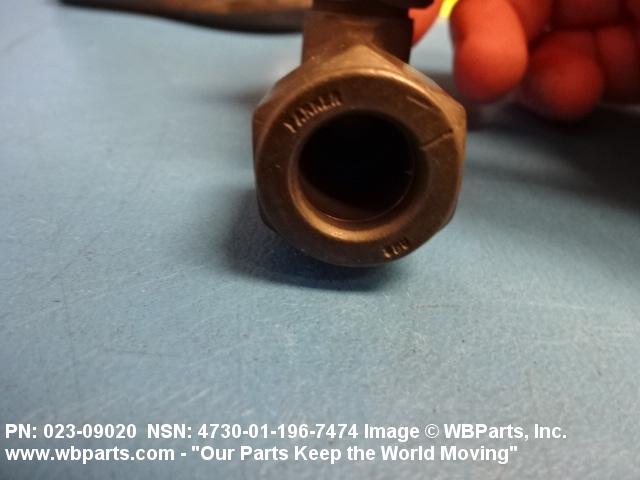

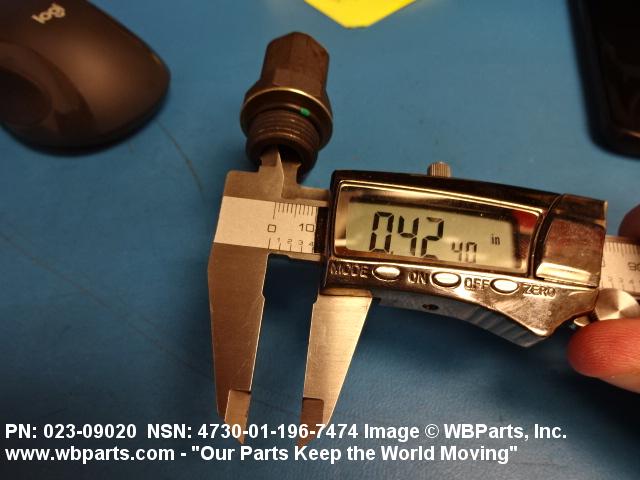

Drawings & Photos | NSN 4730-01-196-7474
Demand History | NSN 4730-01-196-7474
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 023-09020-000 | 2021-12-28 | 2 | DIBBS |
| 364-37846 PIECE 106 | 2021-12-28 | 2 | DIBBS |
| 4730-01-196-7474 | 2021-12-14 | 2 | United States |
| 4730-01-196-7474 | 2021-01-27 | 1 | United States |
| 4730-01-196-7474 | 2020-08-12 | 1 | United States |
| 023-09020-000 | 2019-11-14 | 1 | DIBBS |
| 364-37846 PIECE 106 | 2019-11-14 | 1 | DIBBS |
| 4730-01-196-7474 | 2019-04-19 | 1 | United States |
| 023-09020-000 | 2019-04-10 | 2 | DIBBS |
| 364-37846 PIECE 106 | 2019-04-10 | 2 | DIBBS |
| 4730-01-196-7474 | 2018-06-10 | 1 | DIBBS |
| 4730-01-196-7474 | 2016-12-28 | 1 | DIBBS |
Cross Reference | NSN 4730-01-196-7474
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 023-09020 | 66935 | YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS |
| 023-09020-000 | 66935 | YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS |
| 364-37846 | 66935 | YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS |
| 364-37846 PIECE 106 | 66935 | YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-196-7474
Restrictions/Controls & Freight Information | NSN 4730-01-196-7474
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-196-7474
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
