NSN 4730-01-195-6145 123JT 5IN, 123-JT-.093 IN.M, 123JT093INM
Product Details | SEDIMENT STRAINER
4730-01-195-6145 A strainer having inlet and outlet connections and designed to be connected in a pipe, tube or hose line.
Part Alternates: 123JT 5IN, 123-JT-.093 IN.M, 123JT093INM, 123JT5IN, 4730-01-195-6145, 01-195-6145, 4730011956145, 011956145
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 30 NOV 1984 | 01-195-6145 | 04200 ( STRAINER, SEDIMENT ) |
Drawings & Photos | NSN 4730-01-195-6145
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-195-6145
Technical Data | NSN 4730-01-195-6145
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | C22 TWIN STRAINER W/BOLTED COVER |
| MATERIAL | COPPER ALLOY BODY NICKEL ALLOY FILTERING MEDIUM |
| FILTERING MEDIA DESIGN | PERFORATED SINGLE FILTERING MEDIA RESPONSE |
| PERFORATION DIAMETER | 0.093 INCHES NOMINAL |
| PERFORATION QUANTITY | 10.0 PER SQUARE INCH |
| MEDIA FOR WHICH DESIGNED | WATER |
| MAXIMUM OPERATING PRESSURE | 150.0 POUNDS PER SQUARE INCH |
| TEMP RATING | 100.0 DEG FAHRENHEIT NOMINAL |
| FIRST INTAKE CONNECTION TYPE | PLAIN FACE FLANGE BOTTOM |
| FIRST INTAKE FLANGE SHAPE STYLE | 2 ROUND W/UNTHREADED BOLT HOLES |
| FIRST INTAKE FLANGE THICKNESS | 0.500 INCHES NOMINAL |

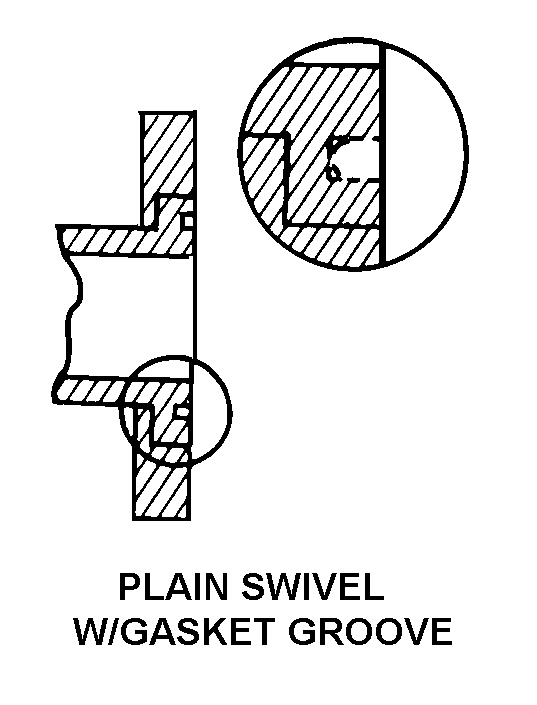

| FIRST INTAKE FLANGE FACE STYLE | 3 PLAIN SWIVEL W/GASKET GROOVE |
| SPECIAL FEATURES | 5 INCH STRAINER |
Restrictions/Controls & Freight Information | NSN 4730-01-195-6145
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052430 | STRAINERS PIPE LINE BBC BODY |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-195-6145
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
