NSN 4730-01-178-5066 HS45196, HS4519-6, D10021A06

Product Details | TUBE ELBOW

4730-01-178-5066 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.

Part Alternates: HS45196, HS4519-6, D10021A06, D10021A-06, D10021A6, D10021A-6, 4730-01-178-5066, 01-178-5066, 4730011785066, 011785066

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	05 MAY 1984	01-178-5066	03771 ( ELBOW, TUBE )

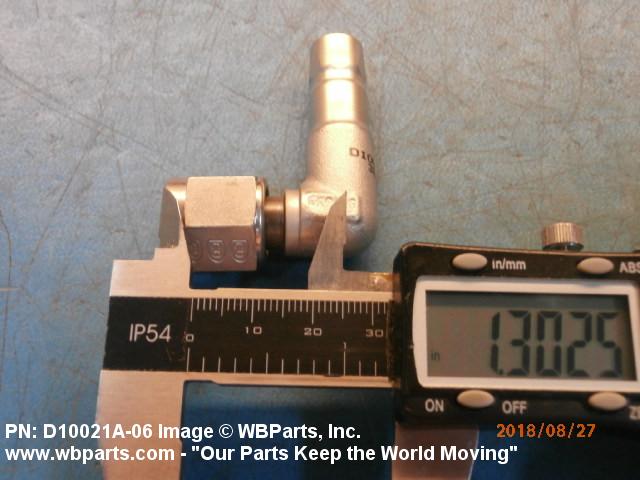

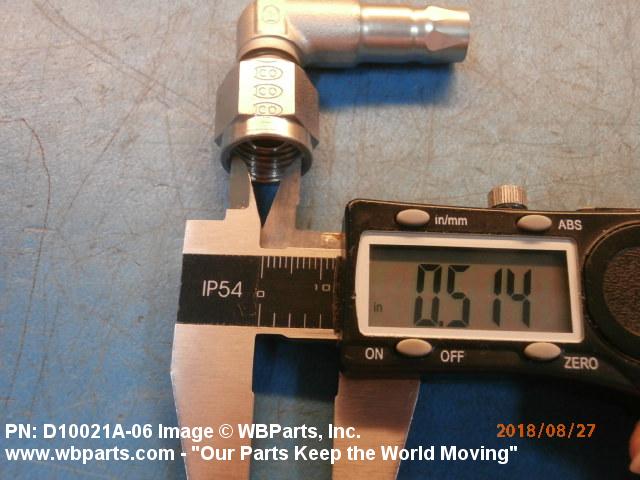

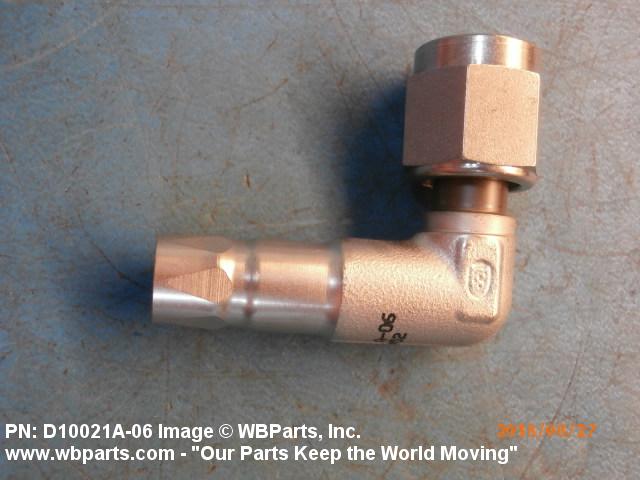

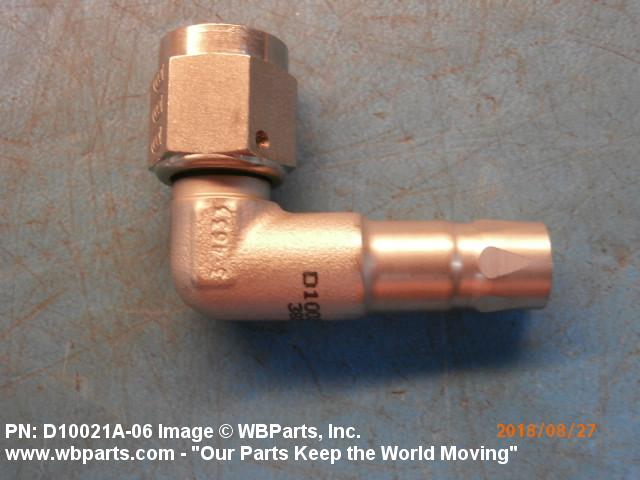

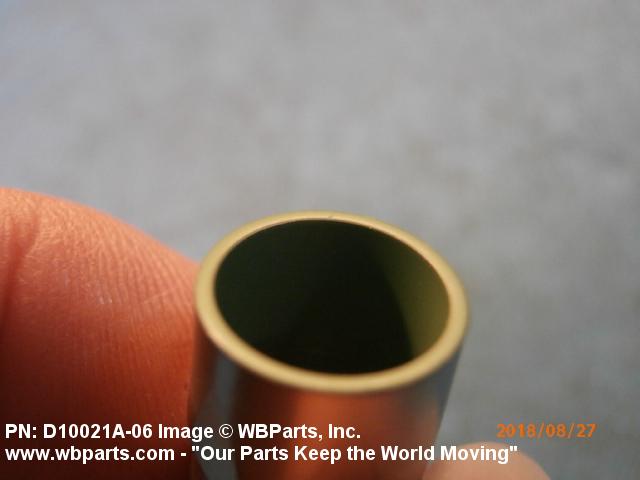

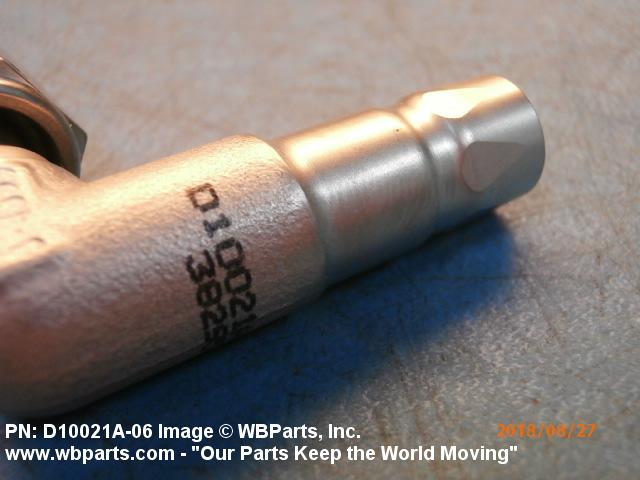

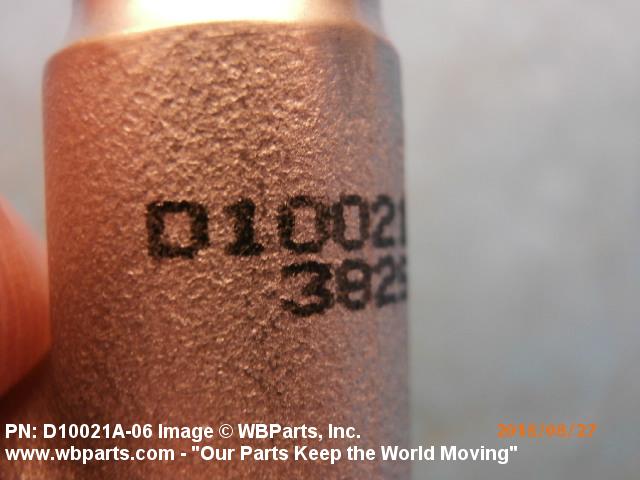

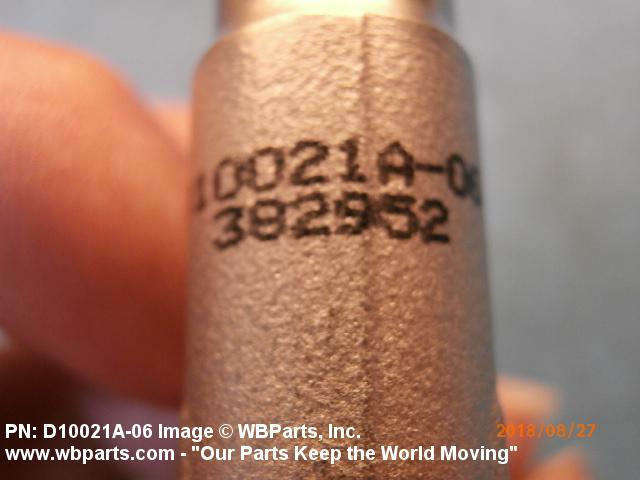

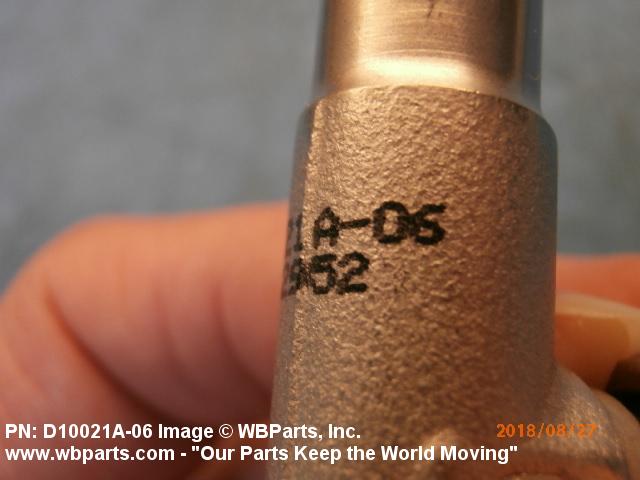

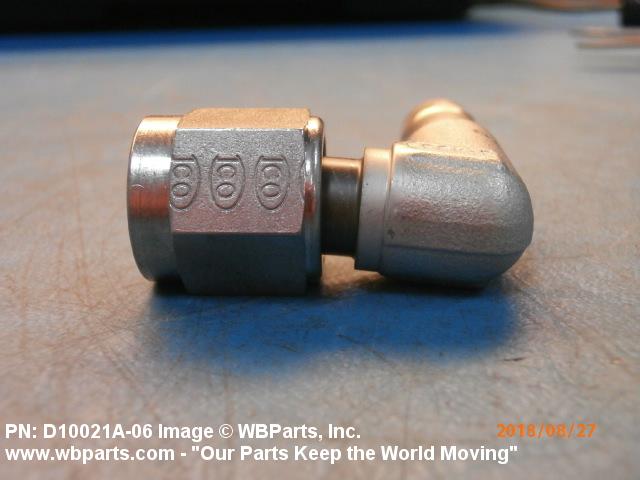

Drawings & Photos | NSN 4730-01-178-5066

Part Number	Request Date	QTY	Origin
D10021A06	2024-03-79	5	United States
HS45196	2023-03-75	1	United States
D10021A-06	2021-02-46	1910	DIBBS
HS4519-6	2021-02-46	1910	DIBBS
D10021A06	2018-04-101	1	France
4730-01-178-5066	2017-03-61	107	DIBBS
4730-01-178-5066	2016-08-237	107	DIBBS
4730-01-178-5066	2014-09-258	190	DIBBS
4730-01-178-5066	2014-09-245	190	DIBBS
4730-01-178-5066	2014-08-223	30	DIBBS
4730-01-178-5066	2014-07-211	118	DIBBS
4730-01-178-5066	2014-07-183	26	DIBBS
4730-01-178-5066	2014-06-177	15	DIBBS
4730-01-178-5066	2014-06-169	10	DIBBS
4730-01-178-5066	2014-06-153	10	DIBBS
4730-01-178-5066	2014-05-133	42	DIBBS
4730-01-178-5066	2014-02-54	105	DIBBS
D10021A06	2014-01-20	6	Taiwan
D10021A-06	2012-03-86	2	US
4730-01-178-5066	2011-08-214	14	DIBBS
4730-01-178-5066	2011-06-166	30	DIBBS
4730-01-178-5066	2011-04-100	84	DIBBS
4730-01-178-5066	2011-04-91	83	DIBBS
4730-01-178-5066	2010-11-327	3	DIBBS
4730-01-178-5066	2010-11-313	46	DIBBS
4730-01-178-5066	2009-12-336	77	DIBBS
4730-01-178-5066	2009-09-273	12	DIBBS
D10021A06	2009-05-127	2	MX
D10021A6	2009-05-127	2	MX
D10021A06	2008-05-147	130	United States

Cross Reference | NSN 4730-01-178-5066

Part Number	Cage Code	Manufacturer
D10021A-06	14798	DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE
D10021A-6	14798	DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE
HS4519-6	02731	MCDONNELL DOUGLAS HELICOPTER CO INC
HS4519-6	8V613	BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-178-5066

Compare

Related Products | NSN 4730-01-178-5066

4730-01-178-5067, 4730-01-178-5068, 4730-01-178-5069, 4730-01-178-5070, 4730-01-178-5071

Technical Data | NSN 4730-01-178-5066

Characteristic	Specifications
MATERIAL	STEEL CORROSION RESISTING OVERALL
CONNECTION TYPE	THREADED INTERNAL TUBE 1ST END UNTHREADED INTERNAL TUBE 2ND END

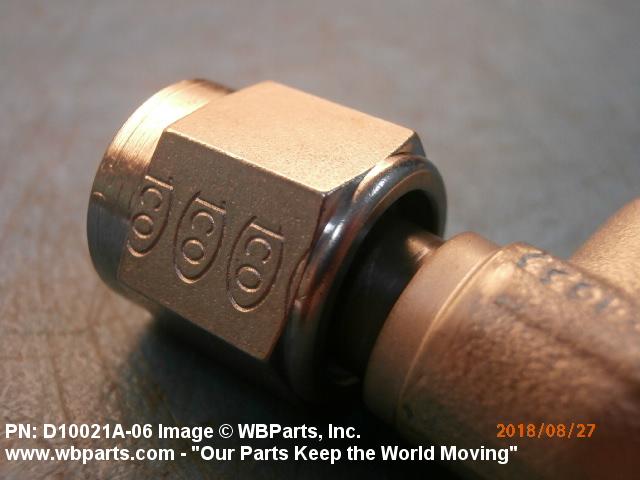

CONNECTION STYLE	B12 SWIVEL NUT, FLARELESS 1ST END B48 SWAGED W/GROOVES 2ND END
SEAT ANGLE	12.0 DEGREES 1ST END

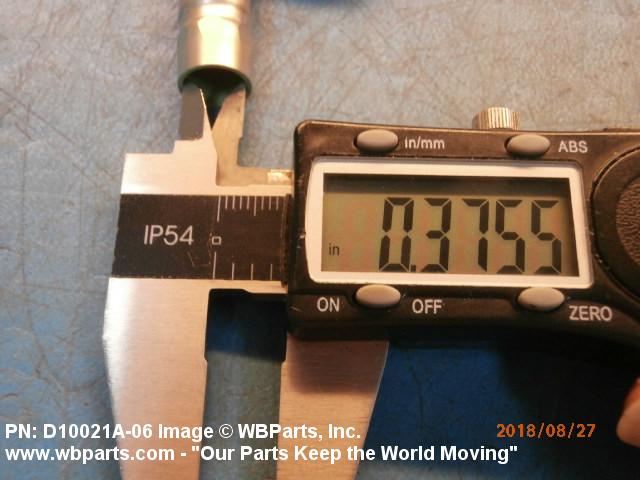

NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.375 INCHES 1ST END 0.375 INCHES 2ND END
THREAD SERIES DESIGNATOR	UNJF 1ST END
NOMINAL THREAD SIZE	0.563 INCHES 1ST END
THREAD CLASS	2B 1ST END

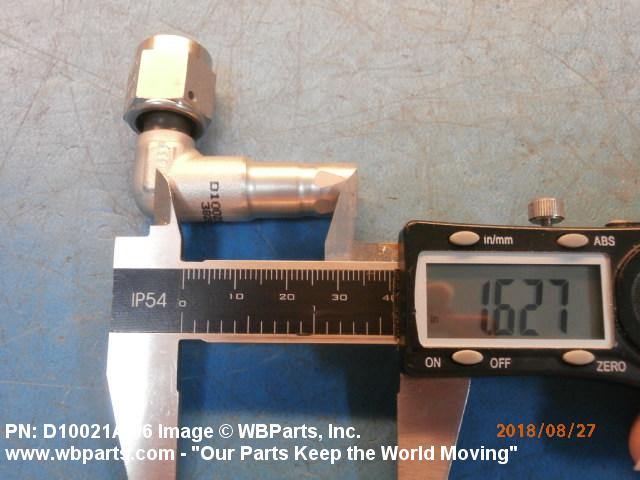

LEG LENGTH	1.112 INCHES NOMINAL 1ST END 1.625 INCHES NOMINAL 2ND END
FLOW ANGLE	90.0 DEGREES
MANUFACTURERS CODE	02731
MFR SOURCE CONTROLLING REFERENCE	HS4519-6

Restrictions/Controls & Freight Information | NSN 4730-01-178-5066

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	051400	PIPE FITTINGS ALUMINUM
Less than car load rating	P	77.5
Less than truck load rating	P	77.5
Water commodity Code	576	unknown
Originating Activity Code	CT	U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-01-178-5066

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
