Product Details | PIPE CAP

4730-01-178-0317 A pipe fitting primarily designed for permanent installation during piping system operation to fit over or butt against a pipe or pipe fitting for sealing. Excludes FLANGE, PIPE, BLIND.

Part Alternates: M10388A05AK1C, M10388-A-05-AK-1-C, AA52592, A-A-52592, AA52592A05AK1C, A-A-52592-A-05-AK-1-C, F060060A0M, F-060-060-A-0M, MILP10388, MIL-P-10388, 60A6IN, 60A-6IN, 4730-01-178-0317, 01-178-0317, 4730011780317, 011780317

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG) NSN Assign. NIIN
47 01 MAY 1984 01-178-0317

Drawings & Photos | NSN 4730-01-178-0317


Demand History | NSN 4730-01-178-0317

Part Number Request Date QTY Origin
4730-01-178-0317 2020-10-294 22 DIBBS

Cross Reference | NSN 4730-01-178-0317

Part Number Cage Code Manufacturer
60A-6IN 79154 VICTAULIC COMPANY OF AMERICA INC DBA VICTAULIC COMPANY OF AMERICA
A-A-52592 58536 FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
A-A-52592-A-05-AK-1-C 58536 FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
F-060-060-A-0M 79154 VICTAULIC COMPANY OF AMERICA INC DBA VICTAULIC COMPANY OF AMERICA
M10388-A-05-AK-1-C 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-P-10388 81349 MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-178-0317

Technical Data | NSN 4730-01-178-0317

Characteristic Specifications
MATERIAL ALUMINUM ALLOY 356 OR ALUMINUM ALLOY 6061 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION QQ-A-601,COND T6 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-A-367,COND T6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT ANODIZE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION MIL-A-8625,TYPE 2,CLASS 1 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
STYLE DESIGNATOR A5 CAP, PIPE

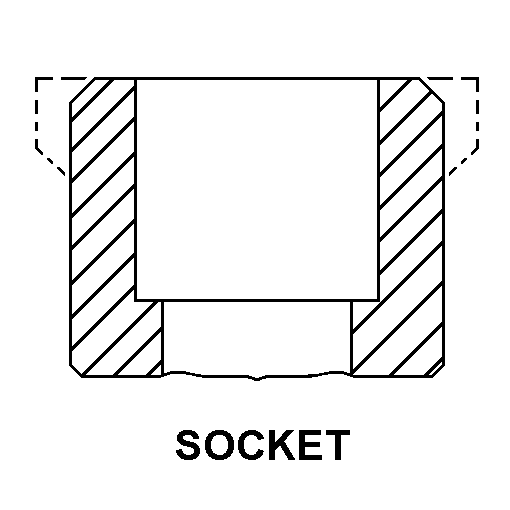

CONNECTION STYLE H1 SOCKET
NOMINAL PIPE SIZE FOR WHICH DESIGNED 6.000 INCHES
HEAD TYPE SOLID
(NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED 600.0 POUNDS PER SQUARE INCH WATER-OIL-GAS
MANUFACTURERS CODE 58536
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE A-A-52592
MANUFACTURERS CODE 58536
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE A-A-52592-A-05-AK-1-C

Restrictions/Controls & Freight Information | NSN 4730-01-178-0317

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 052190 PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating U 50
Less than truck load rating W Rating Variable
Water commodity Code 576 unknown
Originating Activity Code CT U.S. Army Aviation and Missile Command (AIR)
Redstone Arsenal, AL 35898-5230
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4730-01-178-0317

Category Code Description
Materiel Category and Inventory ManagerJ Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Stores Account Code1Marine Corps Stock Fund Account Item.
Combat Essentiality Code5Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management CodeBAll CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code2ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code1Bin
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDMU.S. Marine Corps
Service OrganizationMU.S. Marine Corps
ReparabilityZNonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
