NSN 4730-01-176-3883 CRN3303, 5M1949001, 5M1949-001

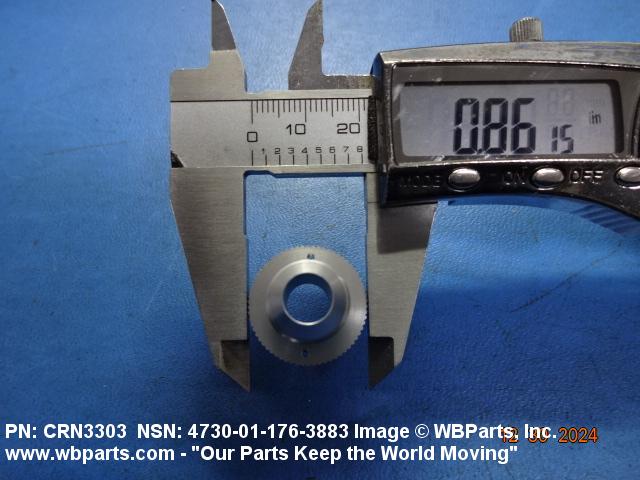

Product Details | TUBE TO HOSE STRAIGHT ADAPTER

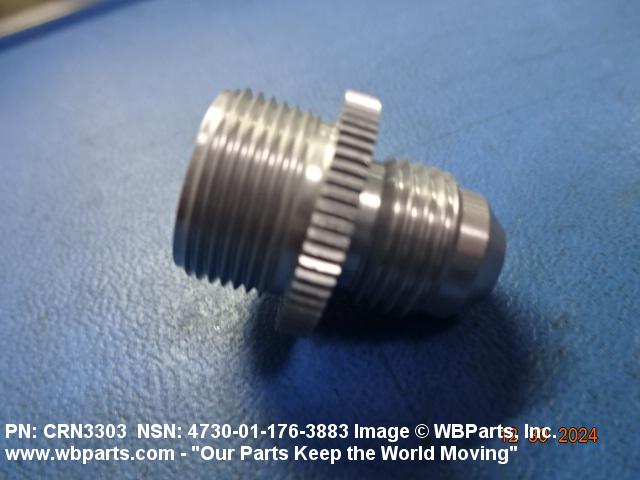

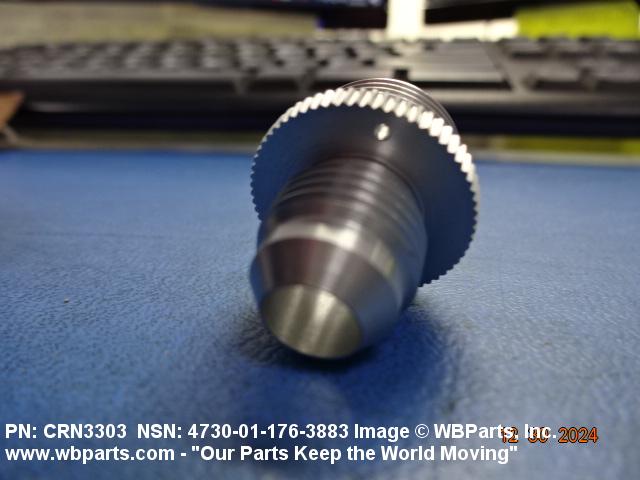

4730-01-176-3883 An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed to accommodate a hose. It is designed to join a tube or tube fitting to a hose or hose fitting.
Part Alternates: CRN3303, 5M1949001, 5M1949-001, 10108865 , 4730-01-176-3883, 01-176-3883, 4730011763883, 011763883
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 11 APR 1984 | 01-176-3883 | 03777 ( ADAPTER, STRAIGHT, TUBE TO HOSE ) |
Demand History | NSN 4730-01-176-3883
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5M1949001 | 2024-11-318 | 3 | us |
| 4730-01-176-3883 | 2024-09-267 | 10 | United States |
| 4730-01-176-3883 | 2024-09-257 | 8 | Malaysia |
| 5M1949-001 | 2024-04-109 | 170 | DIBBS |
| CRN3303 | 2024-04-109 | 170 | DIBBS |
| 5M1949-001 | 2023-09-271 | 60 | DIBBS |
| CRN3303 | 2023-09-271 | 60 | DIBBS |
| 5M1949-001 | 2023-04-96 | 22 | DIBBS |
| CRN3303 | 2023-04-96 | 22 | DIBBS |
| 5M1949-001 | 2022-06-153 | 20 | DIBBS |
| CRN3303 | 2022-06-153 | 20 | DIBBS |
| 5M1949-001 | 2021-09-252 | 21 | DIBBS |
| CRN3303 | 2021-09-252 | 21 | DIBBS |
| 5M1949-001 | 2020-03-72 | 79 | DIBBS |
| CRN3303 | 2020-03-72 | 79 | DIBBS |
| 4730-01-176-3883 | 2015-12-361 | 32 | DIBBS |
| 4730-01-176-3883 | 2015-10-301 | 47 | DIBBS |
| 4730-01-176-3883 | 2013-10-303 | 41 | DIBBS |
| 4730-01-176-3883 | 2012-10-277 | 34 | DIBBS |
| 4730-01-176-3883 | 2009-11-328 | 46 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-176-3883
Technical Data | NSN 4730-01-176-3883
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2014 OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 2,CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL HOSE 1ST END THREADED EXTERNAL TUBE 2ND END |
| THREAD SERIES DESIGNATOR | UNEF 1ST END UNJF 2ND END |

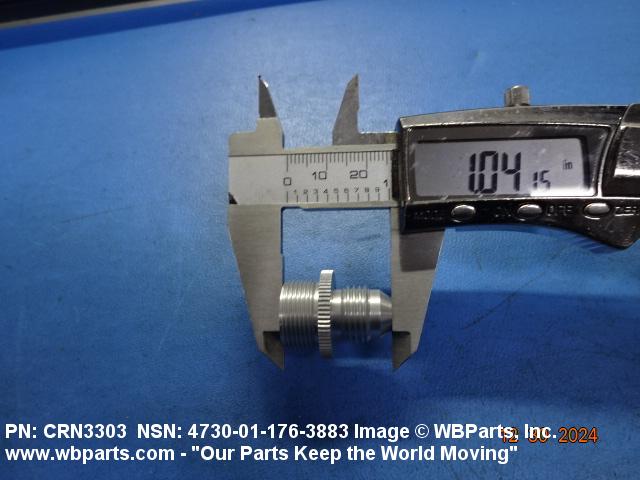

| NOMINAL OVERALL LENGTH | 1.045 INCHES |
| MANUFACTURERS CODE | 05593 |
| DESIGN CONTROL REFERENCE | CRN3303 |
Restrictions/Controls & Freight Information | NSN 4730-01-176-3883
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-176-3883
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
