NSN 4730-01-169-3820 IS15F1508IN, IS-15F-150-8IN, IS15F150AND33
Product Details | SEDIMENT STRAINER
4730-01-169-3820 A strainer having inlet and outlet connections and designed to be connected in a pipe, tube or hose line.
Part Alternates: IS15F1508IN, IS-15F-150-8IN, IS15F150AND33, IS-15F-150AND33, 33198, 4730-01-169-3820, 01-169-3820, 4730011693820, 011693820
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 07 JAN 1984 | 01-169-3820 | 04200 ( STRAINER, SEDIMENT ) |
Drawings & Photos | NSN 4730-01-169-3820
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-169-3820
Related Products | NSN 4730-01-169-3820
Technical Data | NSN 4730-01-169-3820
| Characteristic | Specifications |
|---|---|

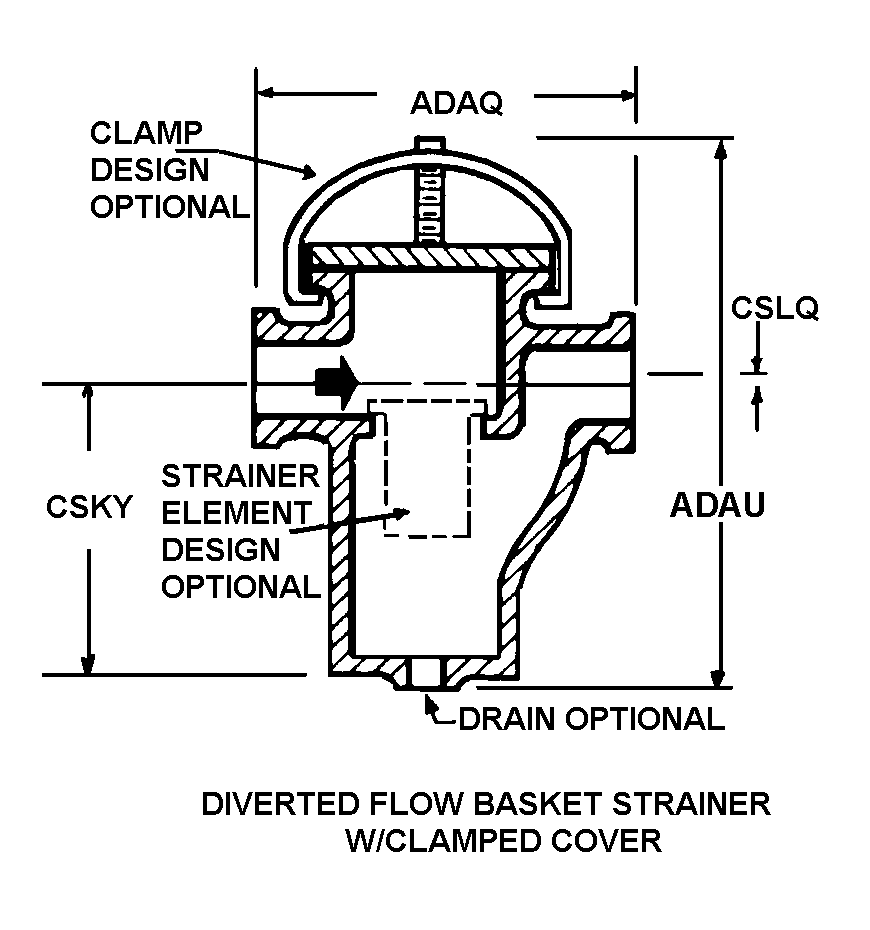

| STYLE DESIGNATOR | C7 DIVERTED FLOW BASKET STRAINER W/CLAMPED COVER |
| BODY LENGTH | 24.875 INCHES NOMINAL |
| BODY HEIGHT | 37.750 INCHES NOMINAL |
| DISTANCE FROM BOTTOM OF BODY TO CENTER OF INLET | 24.500 INCHES NOMINAL |
| MATERIAL | COPPER ALLOY BODY NICKEL ALLOY SCREENING RUBBER BUNA N SEAL |
| FILTERING MEDIA DESIGN | PERFORATED SINGLE FILTERING MEDIA RESPONSE |
| PERFORATION DIAMETER | 0.047 INCHES NOMINAL |
| PERFORATION QUANTITY | 225.0 PER SQUARE INCH |
| MEDIA FOR WHICH DESIGNED | WATER |
| MAXIMUM OPERATING PRESSURE | 150.0 POUNDS PER SQUARE INCH |
| TEMP RATING | 28.0 DEG FAHRENHEIT MINIMUM AND 85.0 DEG FAHRENHEIT MAXIMUM |
| FIRST INTAKE CONNECTION TYPE | PLAIN FACE FLANGE TOP SIDE |
| FIRST INTAKE FLANGE SHAPE STYLE | 2 ROUND W/UNTHREADED BOLT HOLES |
| FIRST INTAKE FLANGE OUTSIDE DIAMETER | 13.500 INCHES NOMINAL |
| FIRST INTAKE FLANGE THICKNESS | ANY ACCEPTABLE |
| FIRST INTAKE FLANGE FACE STYLE | 1 PLAIN |
| FIRST DISCHARGE CONNECTION RELATIONSHIP TO INTAKE CONNECTION | IDENTICAL TO FIRST INTAKE CONNECTION |
| MOUNTING TYPE | INLET CONNECTION AND OUTLET CONNECTION LINE |
