NSN 4730-01-167-7050 MS24398J65, MS24398J6-5, MS24398K65
Product Details | TUBE TO BOSS STRAIGHT ADAPTER

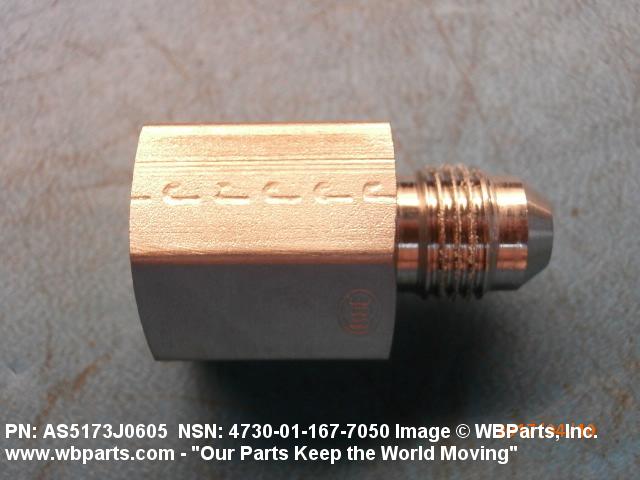

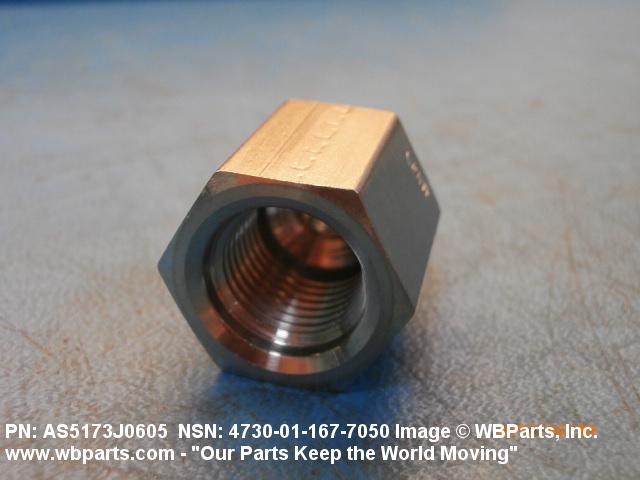

4730-01-167-7050 An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. It is designed to join a tube or tube fitting to a boss or boss fitting in a straight line on items such as tanks, housings, valve fittings, and the like. See also COUPLING, TUBE and NIPPLE, TUBE.
Part Alternates: MS24398J65, MS24398J6-5, MS24398K65, MS24398K6-5, AS4875/1, AS48751, AS5173, AS5173J0605, MILF5509, MIL-F-5509, 4730-01-167-7050, 01-167-7050, 4730011677050, 011677050
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 03 DEC 1983 | 01-167-7050 | 22675 ( ADAPTER, STRAIGHT, TUBE TO BOSS ) |

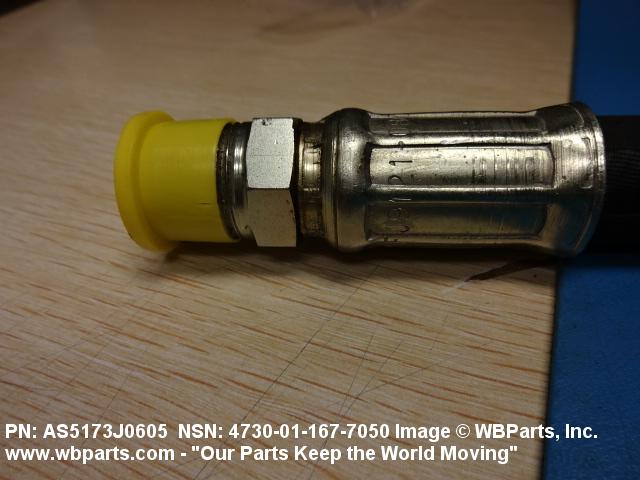

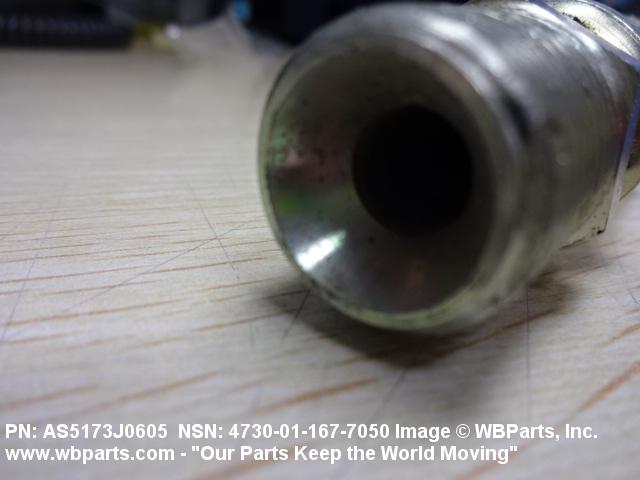

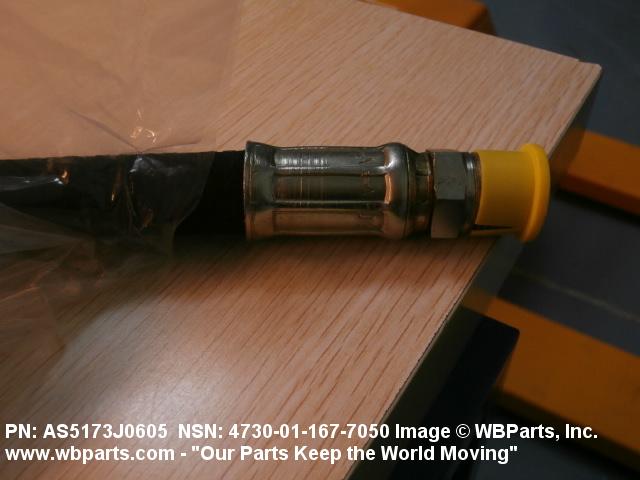

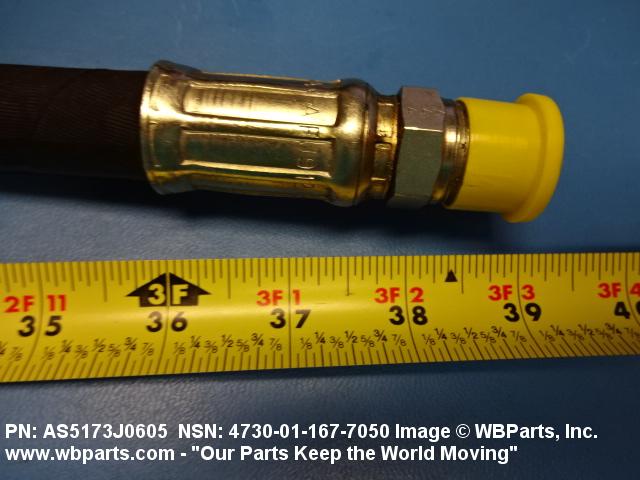

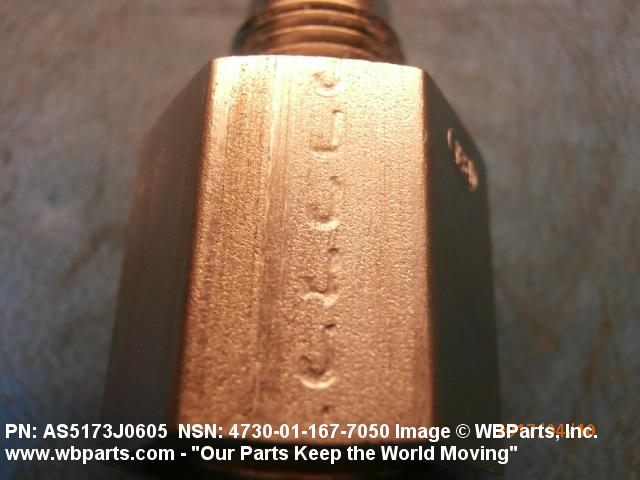

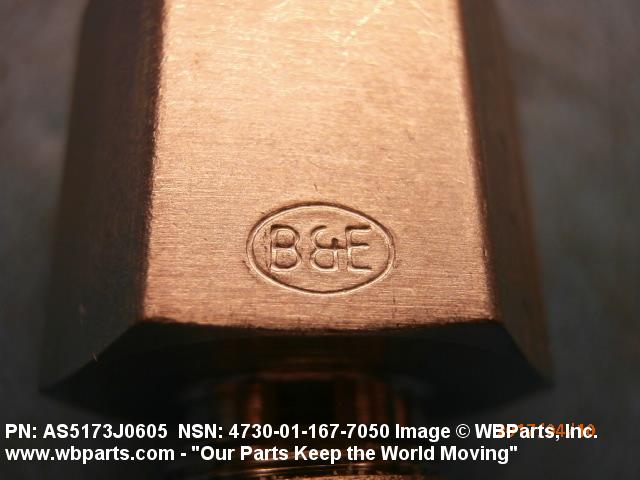

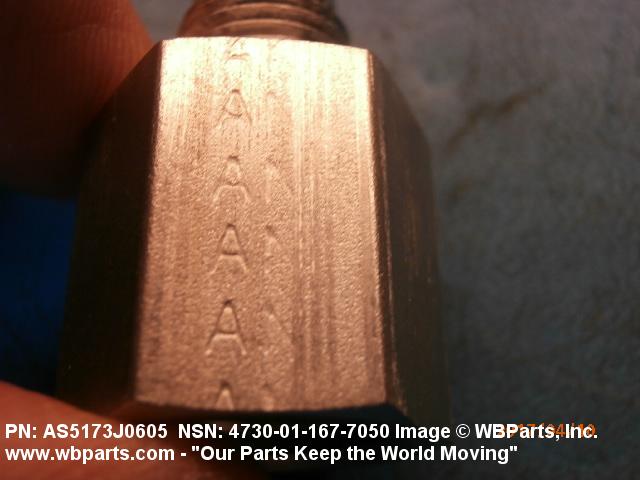

Drawings & Photos | NSN 4730-01-167-7050
Demand History | NSN 4730-01-167-7050
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-167-7050 | 2019-03-63 | 319 | DIBBS |
| 4730-01-167-7050 | 2019-02-52 | 319 | DIBBS |
| MILF5509 | 2018-07-201 | 6 | United States |
| 4730-01-167-7050 | 2017-03-66 | 1 | United States |
| 4730-01-167-7050 | 2016-06-164 | 270 | DIBBS |
| 4730-01-167-7050 | 2015-03-64 | 308 | DIBBS |
| 4730-01-167-7050 | 2014-12-344 | 45 | DIBBS |
| 4730-01-167-7050 | 2014-09-246 | 53 | DIBBS |
| 4730-01-167-7050 | 2011-08-223 | 160 | DIBBS |
| 4730-01-167-7050 | 2010-04-104 | 118 | DIBBS |
| MILF5509 | 2009-10-301 | 1 | PK |
| MILF5509 | 2009-02-55 | 100 | US |
Cross Reference | NSN 4730-01-167-7050
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS4875/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5173 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS5173J0605 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| MIL-F-5509 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS24398J6-5 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS24398K6-5 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-167-7050
Related Products | NSN 4730-01-167-7050
Technical Data | NSN 4730-01-167-7050
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-S-5002 MIL SPEC 1ST TREATMENT RESPONSE AND QQ-P-35,TY 1 FED SPEC 2ND TREATMENT RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID 1ST RESPONSE OXYGEN, GASEOUS 2ND RESPONSE |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 225.0 DEG FAHRENHEIT 1ST RESPONSE -65.0 DEG FAHRENHEIT 2ND RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED INTERNAL BOSS 2ND END |
| CONNECTION STYLE | B64 FLARED 1ST END B9 GASKET SEAL 2ND END |
| SEAT ANGLE | 37.0 DEGREES 1ST END |

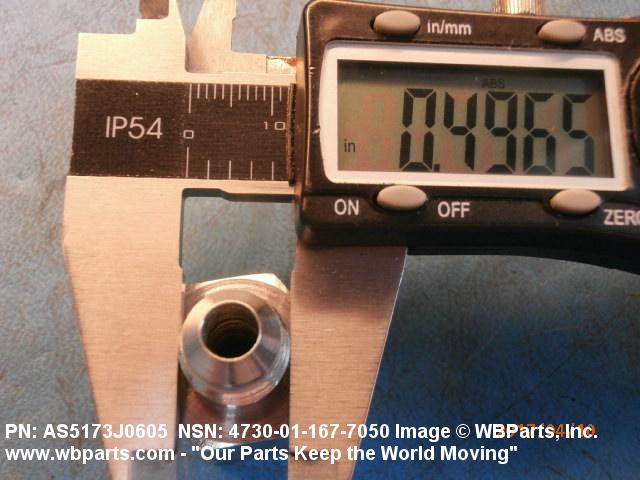

| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.312 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNJF ALL ENDS |
| NOMINAL THREAD SIZE | 0.500 INCHES 1ST END 0.562 INCHES 2ND END |
| THREAD CLASS | 3A 1ST END 3B 2ND END |

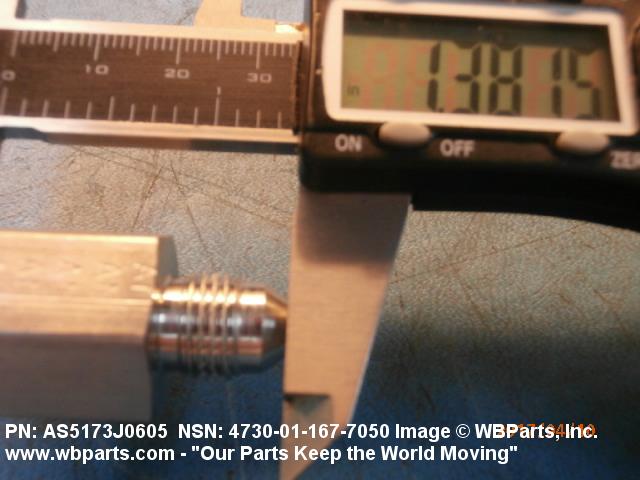

| NOMINAL OVERALL LENGTH | 1.375 INCHES |
| FURNISHED ITEMS AND QUANTITY | 1 PREFORMED PACKING |
| SPECIFICATION/STANDARD DATA | 96906-MS24398 GOVERNMENT STANDARD AND 81343-AS4875/1 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
