NSN 4730-01-148-1491 2642-643-11ASSY C, 264264311ASSYC, 46751770F20
Product Details | PIPELINE FLEXIBLE SPACER
4730-01-148-1491 An item made from rubber in various shapes, flanged on each end, and having a centrally located hole of the same size as the piping with which used. It is designed to be inserted between sections of pipe or pipe and casing of fans, pumps, or the like, to absorb shock, dampen vibration and to facilitate removal of section(s) for repair or other purposes.
Part Alternates: 2642-643-11ASSY C, 264264311ASSYC, 46751770F20, 4675177-0F20, 5014675177, 501-4675177, 8454675606, 845-4675606, 87643-2221IT F-20, 876432221ITF20, 4730-01-148-1491, 01-148-1491, 4730011481491, 011481491
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 28 FEB 1983 | 01-148-1491 | 17666 ( SPACER, FLEXIBLE, PIPELINE ) |
Drawings & Photos | NSN 4730-01-148-1491
Cross Reference | NSN 4730-01-148-1491
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-148-1491
Technical Data | NSN 4730-01-148-1491
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER, SYNTHETIC, MIL-S-6855, CLASS 2, GRADE 60-CANCELED |
| FABRICATION METHOD | MOLDED |

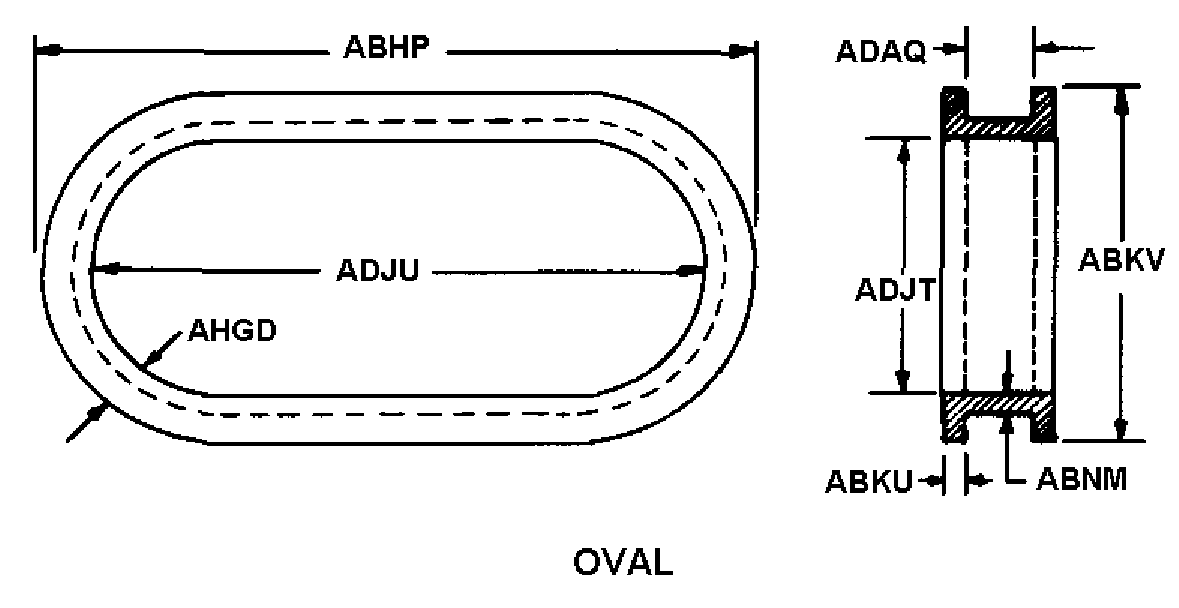

| STYLE DESIGNATOR | R3 OVAL |
| OVERALL LENGTH | 24.700 INCHES NOMINAL |
| FLANGE THICKNESS | 0.200 INCHES NOMINAL |
| THICKNESS | 0.200 INCHES NOMINAL |
| BODY LENGTH | 2.100 INCHES NOMINAL |
| INSIDE WIDTH | 10.600 INCHES NOMINAL |
| INSIDE LENGTH | 22.100 INCHES NOMINAL |
| OUTSIDE WIDTH | 13.200 INCHES NOMINAL |
| FLANGE HEIGHT | 2.500 INCHES NOMINAL |
| DUROMETER HARDNESS RATING | NOT RATED |
| DENSITY RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 4730-01-148-1491
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-148-1491
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
