Product Details | FLUID PASSAGE BOLT
4730-01-141-8869 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 4057336, 4730-01-141-8869, 01-141-8869, 4730011418869, 011418869
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 07 NOV 1982 | 01-141-8869 | 18683 ( BOLT, FLUID PASSAGE ) |
Drawings & Photos | NSN 4730-01-141-8869
Demand History | NSN 4730-01-141-8869
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4057336 | 2019-04-92 | 337 | DIBBS |
| 4730-01-141-8869 | 2018-10-304 | 1 | DIBBS-RFPs |
| 4730-01-141-8869 | 2017-03-79 | 418 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-141-8869
Related Products | NSN 4730-01-141-8869
Technical Data | NSN 4730-01-141-8869
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5646 ASSN STD ALL MATERIAL RESPONSES |

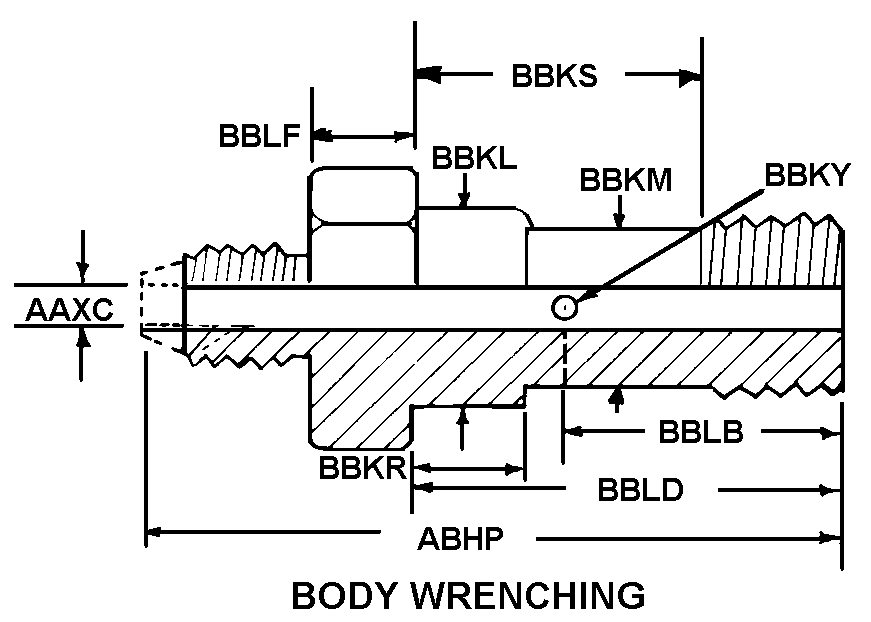

| BODY STYLE | 31 BODY WRENCHING |
| CONCENTRIC HOLE DIAMETER | 0.168 INCHES MINIMUM AND 0.175 INCHES MAXIMUM |
| OVERALL LENGTH | 1.649 INCHES MINIMUM AND 1.689 INCHES MAXIMUM |
| FIRST DIAMETER FROM WRENCHING FEATURE | 0.451 INCHES MINIMUM AND 0.453 INCHES MAXIMUM |
| SECOND DIAMETER FROM WRENCHING FEATURE | 0.351 INCHES MINIMUM AND 0.353 INCHES MAXIMUM |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIRST DIAMETER | 0.090 INCHES MINIMUM AND 0.100 INCHES MAXIMUM |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF SECOND DIAMETER | 0.200 INCHES MINIMUM AND 0.220 INCHES MAXIMUM |
| FIRST RADIAL FLUID HOLE DIAMETER | 0.104 INCHES MINIMUM AND 0.114 INCHES MAXIMUM |
| DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT | 0.210 INCHES MINIMUM AND 0.230 INCHES MAXIMUM |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END | 0.960 INCHES MINIMUM AND 0.980 INCHES MAXIMUM |
| WRENCHING FEATURE HEIGHT | 0.209 INCHES MINIMUM AND 0.229 INCHES MAXIMUM |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | C6 PLAIN |
| FIRST END THREAD SERIES DESIGNATOR | UNJF |
| FIRST END NOMINAL THREAD SIZE | 0.375 INCHES |
| FIRST END THREAD CLASS | 3A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END THREAD LENGTH | 0.308 INCHES MINIMUM AND 0.318 INCHES MAXIMUM |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| SECOND END STYLE DESIGNATOR | C3 FLARED |
| SECOND END SEAT ANGLE | 37.0 DEGREES NOMINAL |
| SECOND END THREAD SERIES DESIGNATOR | UNJF |
| SECOND END NOMINAL THREAD SIZE | 0.437 INCHES |
| SECOND END THREAD CLASS | 3A |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| SECOND END THREAD LENGTH | 0.242 INCHES NOMINAL |
| WRENCHING FEATURE STYLE | 1 HEXAGON |
| WIDTH ACROSS FLATS | 0.676 INCHES MINIMUM AND 0.690 INCHES MAXIMUM |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | 4057336 |
