NSN 4730-01-140-3816 10108741 , 909V192, 01-140-3816
Product Details | SEDIMENT STRAINER ELEMENT
4730-01-140-3816 A replaceable device designed to remove solid particles from flowing liquids. The removal of particles is accomplished by porous material (metallic or non-metallic), wire mesh, perforated metal, or the like, constructed so the liquid can flow through the device while the solid particles are retained. It is designed to fit into a STRAINER, SEDIMENT (or similar cavity). It may have a reinforcement to prevent collapsing, distorting or rupturing. The degree of particles removed must be nominally rated at 50 microns, or more, or absolutely rated at 75 microns, or more. See also FILTER ELEMENT, FLUID.
Part Alternates: 10108741 , 909V192, 4730-01-140-3816, 01-140-3816, 4730011403816, 011403816
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 11 OCT 1982 | 01-140-3816 | 18347 ( STRAINER ELEMENT, SEDIMENT ) |

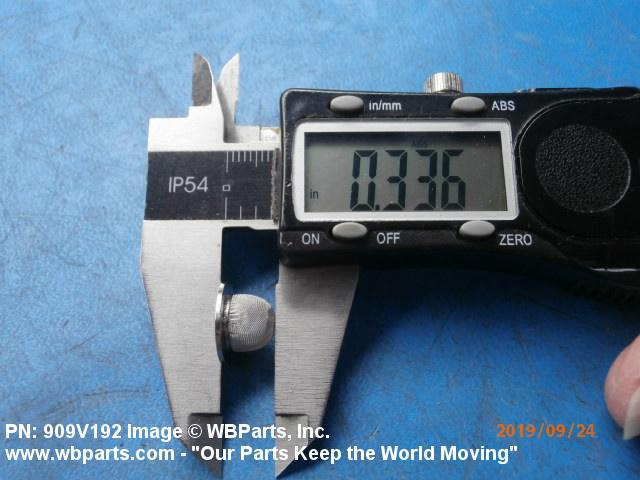

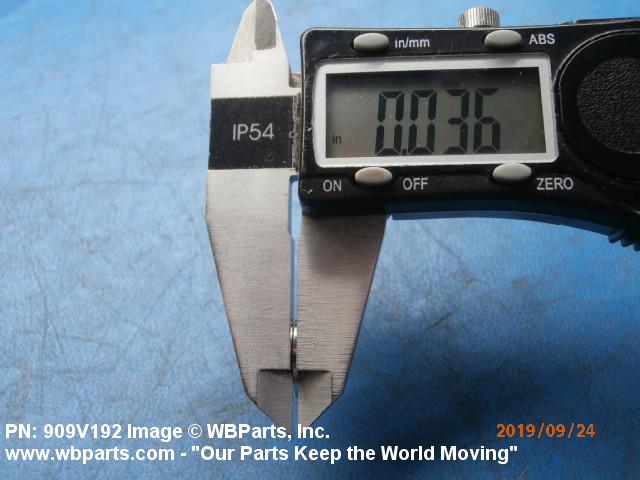

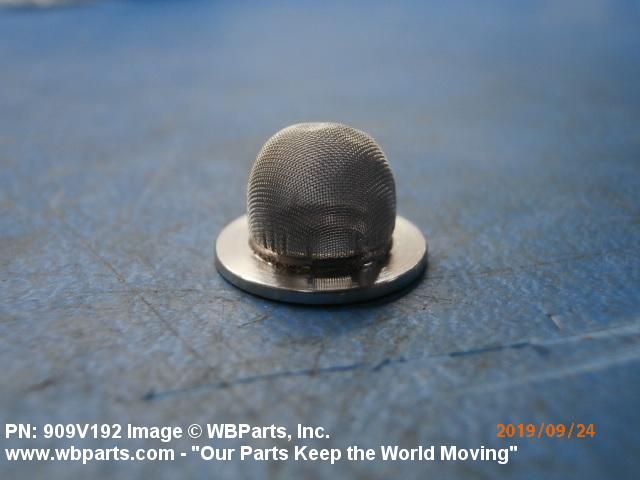

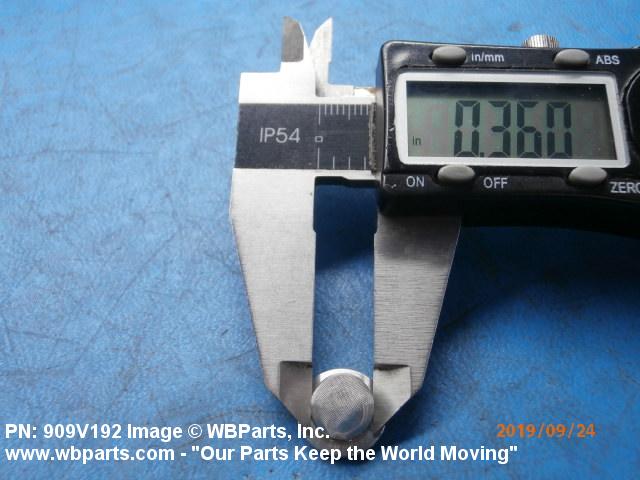

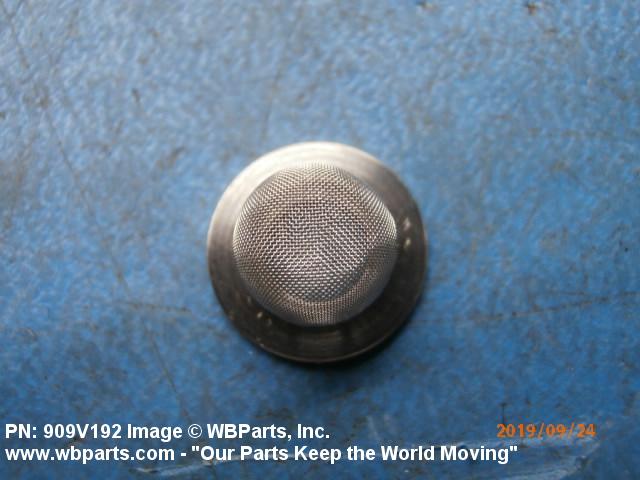

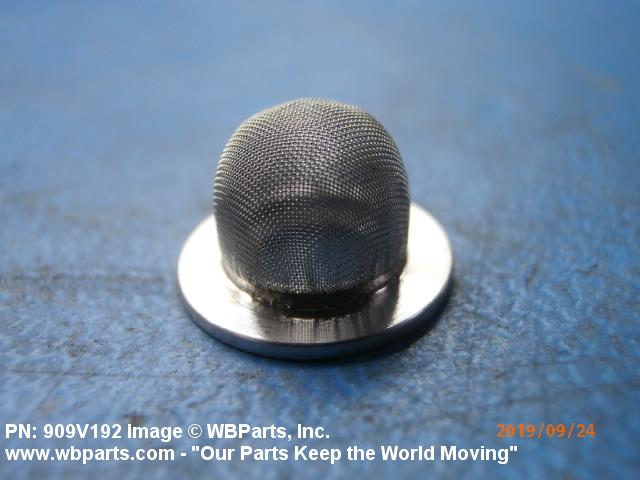

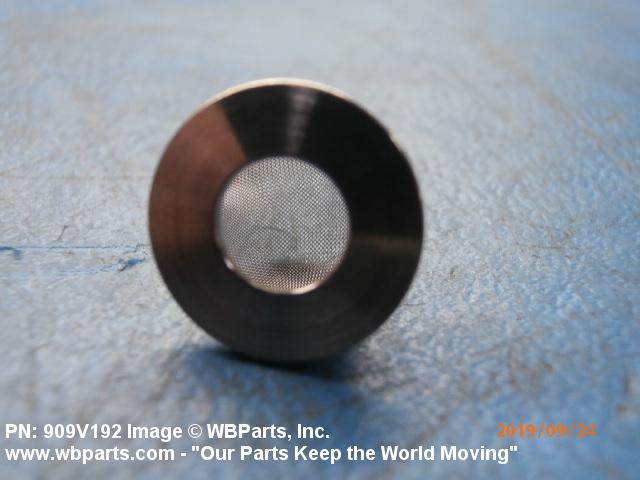

Drawings & Photos | NSN 4730-01-140-3816
Demand History | NSN 4730-01-140-3816
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-140-3816 | 2019-09-248 | 10 | United States |
| 909V192 | 2019-07-212 | 10 | DIBBS |
| 909V192 | 2019-07-210 | 15 | DIBBS |
Cross Reference | NSN 4730-01-140-3816
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 909V192 | 00672 | GRIMES AEROSPACE CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-140-3816
Technical Data | NSN 4730-01-140-3816
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | A1 CYLINDRICAL |
| FIRST END FLANGE THICKNESS | 0.030 INCHES MINIMUM AND 0.040 INCHES MAXIMUM |
| LENGTH | 0.300 INCHES MINIMUM AND 0.350 INCHES MAXIMUM |
| ELEMENT OUTSIDE DIAMETER | 0.300 INCHES MINIMUM AND 0.370 INCHES MAXIMUM |
| END CONNECTION TYPE | FLANGED 1ST END |
| MANUFACTURERS CODE | 00672 |
| DESIGN CONTROL REFERENCE | 909V192 |
Restrictions/Controls & Freight Information | NSN 4730-01-140-3816
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069100 | FILTERS:CARTRIDGES/ELEMENTS |
| Less than car load rating | M | 85 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-140-3816
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
