NSN 4730-01-140-2250 5924759118, 592-4759118, 01-140-2250
Product Details | PACKING NUT
4730-01-140-2250 An item having internal and/or external machine thread(s) (threads other than pipe or hose series), specifically designed to retain, by means or groove(s), shoulder(s), and the like, packing and/or a packing gland within a stuffing box. See also BUSHING, MACHINE THREAD; INVERTED NUT, TUBE COUPLING; and NUT, TUBE COUPLING. Excludes PACKING NUT, STUFFING TUBE; and use with electrical cable, and LOCKNUT, PIPE.20210150024Guns, 75mm Through 125mm47300051Hose, Pipe, Tube, Lubrication, and Railing Fittings
Part Alternates: 5924759118, 592-4759118, 4730-01-140-2250, 01-140-2250, 4730011402250, 011402250
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 08 OCT 1982 | 01-140-2250 | 18028 ( PACKING NUT ) |
Drawings & Photos | NSN 4730-01-140-2250
Cross Reference | NSN 4730-01-140-2250
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 592-4759118 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-140-2250
Technical Data | NSN 4730-01-140-2250
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRONZE OR BRASS |
| STRENGTH RATING | NOT RATED |
| MATERIAL HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |

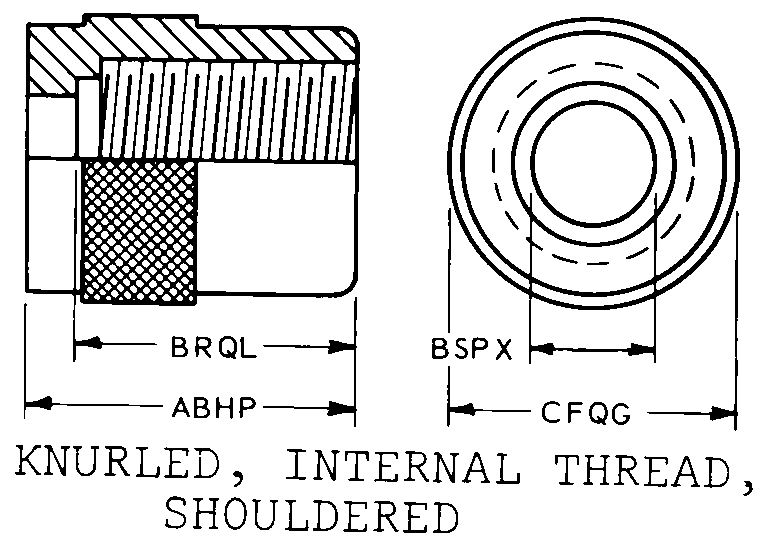

| STYLE DESIGNATOR | C17 KNURLED, INTERNAL THREAD, SHOULDERED |
| OVERALL LENGTH | 1.095 INCHES NOMINAL |
| LENGTH TO SHOULDER | 0.703 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| SMALLEST INSIDE DIAMETER | 1.006 INCHES NOMINAL |
| MAJOR UNTHREADED OUTSIDE DIAMETER | 1.300 INCHES NOMINAL |
| THREAD SIZE | 1-3/16-20 |
| SCREW THREAD SERIES DESIGNATOR | UN |
| THREAD CLASS | 2B |
| THREAD LENGTH | 0.430 INCHES MINIMUM AND 0.460 INCHES MAXIMUM |
| THREAD DIRECTION | RIGHT-HAND |
| SCREW THREAD LOCATION | INTERNAL |
| SPECIAL FEATURES | FOUR HOLES SPACED 90 DEG C TO C LOCATED 0.200 FROM HOLE CENTERS TO HEAD END,THREE HOLES 0.190 IN. DIA,1 HOLE 0.164-32 UNC 2B THD |
Restrictions/Controls & Freight Information | NSN 4730-01-140-2250
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | 2 | Arms/Weapons (all types including Inert Component Parts). When a 2 is indicated in the first position, then the special handling code must be determined from table 85 , part 1. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-140-2250
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
