NSN 4730-01-134-1278 FA90321469X6X2, WF1469X6X2 , J246
Product Details | PIPE TO TUBE ELBOW
4730-01-134-1278 A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. One connecting end has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE; ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: FA90321469X6X2, WF1469X6X2 , J246, 1210FX, 1469X6X2, 269NTA62, 269NTA-6-2, 4469F06X02, 4-469-F-06X02, 469F62, 469F6-2, 56-0490-004, 6-2 100202BA, 62100202BA, 63AX51388R, 90321469X6X2, 9032-1469X6X2 , 9032WF1469X6X2, 9032-WF1469X6X2 , 4730-01-134-1278, 01-134-1278, 4730011341278, 011341278, 560490004
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 27 JUN 1982 | 01-134-1278 | 03770 ( ELBOW, PIPE TO TUBE ) |

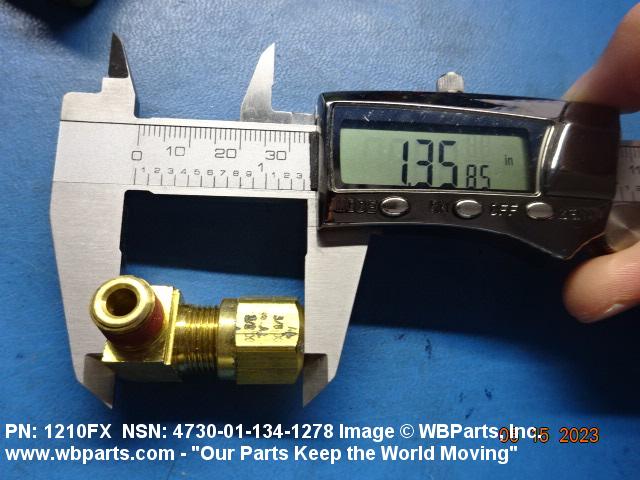

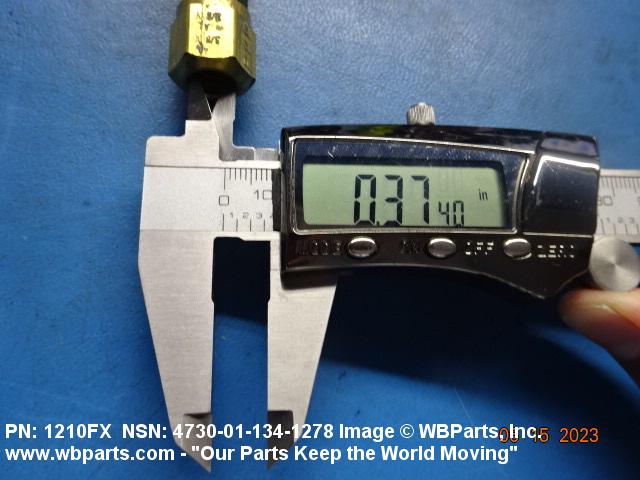

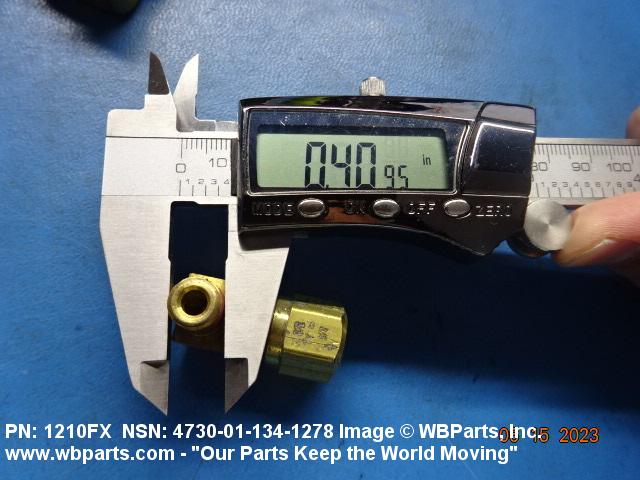

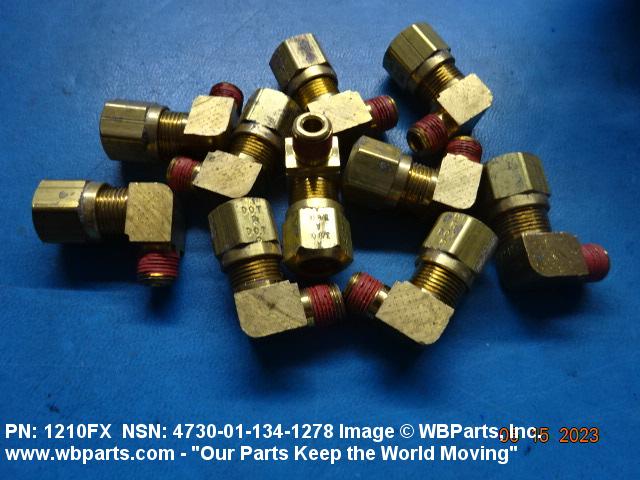

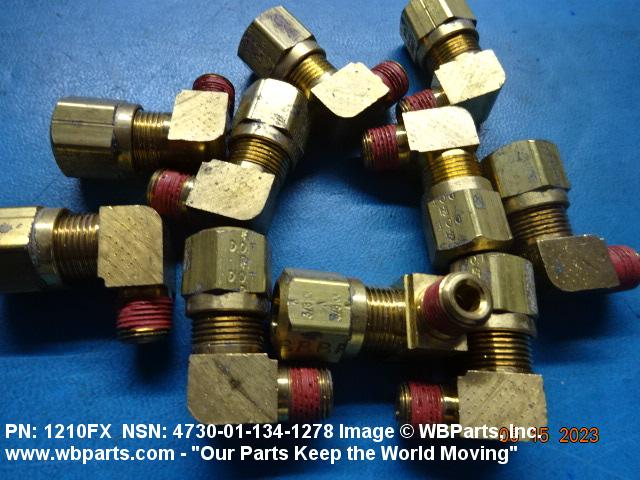

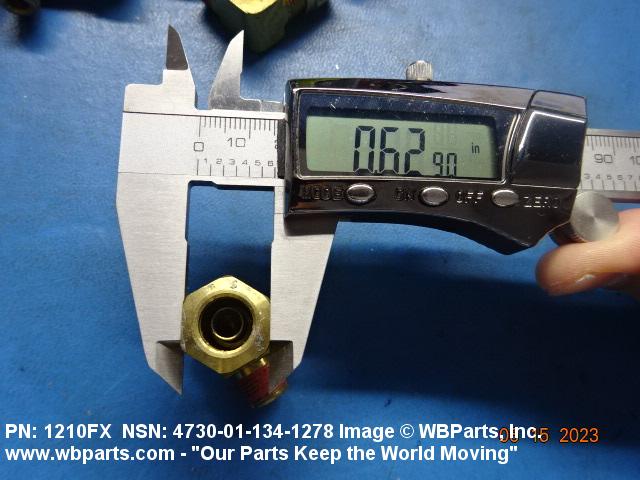

Drawings & Photos | NSN 4730-01-134-1278
Demand History | NSN 4730-01-134-1278
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-134-1278 | 2024-10-281 | 443 | DIBBS |
| 4730-01-134-1278 | 2023-05-124 | 10 | Turkey |
| 4730-01-134-1278 | 2023-05-123 | 10 | Oman |
| 4730-01-134-1278 | 2022-09-255 | 463 | DIBBS |
| 4730-01-134-1278 | 2013-07-197 | 5067 | DIBBS |
| 4730-01-134-1278 | 2013-03-78 | 3487 | DIBBS |
| 4730-01-134-1278 | 2011-12-362 | 1595 | DIBBS |
| 4730-01-134-1278 | 2010-12-335 | 1635 | DIBBS |
| 4730-01-134-1278 | 2010-01-15 | 576 | DIBBS |
Cross Reference | NSN 4730-01-134-1278
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1210FX | 45152 | OSHKOSH CORPORATION |
| 1210FX | 75Q65 | OSHKOSH DEFENSE, LLC |
| 1469X6X2 | 01276 | EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS |
| 1469X6X2 | 79470 | DANA CORP WEATHERHEAD DIV |
| 269NTA-6-2 | 93061 | PARKER-HANNIFIN, CORPORATION DBA BRASS PRODUCTS DIV |
| 4-469-F-06X02 | 09505 | DAYCO INDUSTRIAL |
| 4-469-F-06X02 | 30327 | IMPERIAL |
| 469F6-2 | 30327 | IMPERIAL |
| 56-0490-004 | 04664 | PIERCE MANUFACTURING, INC. |
| 6-2 100202BA | 0FW39 | BAE SYSTEMS TACTICAL VEHICLE SYSTEMS LP |
| 6-2 100202BA | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| 63AX51388R | Z4117 | VOLVO GROUP AUSTRALIA PTY LTD |
| 9032-1469X6X2 | Z4117 | VOLVO GROUP AUSTRALIA PTY LTD |
| 9032-WF1469X6X2 | Z4117 | VOLVO GROUP AUSTRALIA PTY LTD |
| FA90321469X6X2 | Z4117 | VOLVO GROUP AUSTRALIA PTY LTD |
| J246 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| WF1469X6X2 | Z0FG6 | DRIVETRAIN AUSTRALIA PTY LTD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-134-1278
Related Products | NSN 4730-01-134-1278
Technical Data | NSN 4730-01-134-1278
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| MAXIMUM OPERATING PRESSURE | 150.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 200.0 DEG FAHRENHEIT SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL PIPE 2ND END |
| CONNECTION STYLE | B66 FLARELESS 1ST END B67B PLAIN 2ND END |
| SEAT ANGLE | 20.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.375 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNS 1ST END NPTF 2ND END |
| NOMINAL THREAD SIZE | 0.532 INCHES 1ST END 0.125 INCHES 2ND END |
| THREAD QUANTITY PER INCH | 24 1ST END |
| THREAD CLASS | 2A 1ST END |
| LEG LENGTH | 0.730 INCHES NOMINAL 1ST END 0.750 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 90.0 DEGREES |
| FURNISHED ITEMS AND QUANTITY | 1 TUBE COUPLING NUT AND 1 COUPLING SLEEVE |
| SPECIAL FEATURES | TUBE SUPPORT |
| SPECIFICATION/STANDARD DATA | 81343-J246 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 7A FIGURE |
| III END ITEM IDENTIFICATION | NSN 4210-01-486-1035 TFFT (TACTICAL FIRE FIGHTING TRUCK) |
Restrictions/Controls & Freight Information | NSN 4730-01-134-1278
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052185 | PIPE,TUBING,OR PIPE OR TUBING FIT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
