NSN 4730-01-118-2566 MS219023R, MS21902-3R, MS219023S

Product Details | BOSS NIPPLE

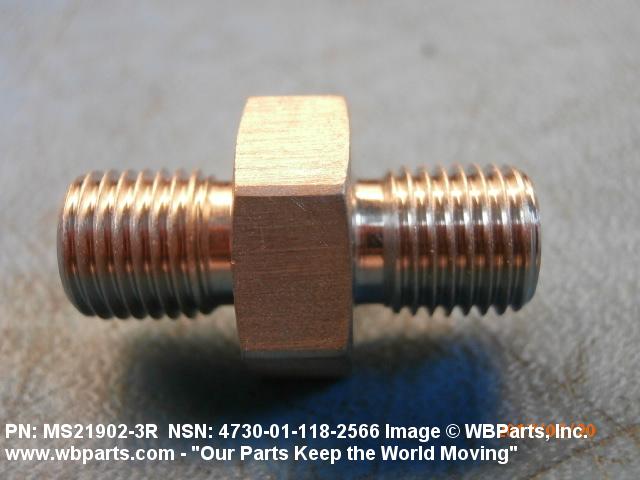

4730-01-118-2566 A straight, one-piece fitting used to join two bosses or boss fittings. Both ends are the same size and have external machine threads (straignt threads other than pipe or hose series). It is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. The center section may be suitably shaped to accommodate a wrench.

Part Alternates: MS219023R, MS21902-3R, MS219023S, MS21902-3S, AS21902, 4730-01-118-2566, 01-118-2566, 4730011182566, 011182566

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	30 AUG 1981	01-118-2566	26952 ( NIPPLE, BOSS )

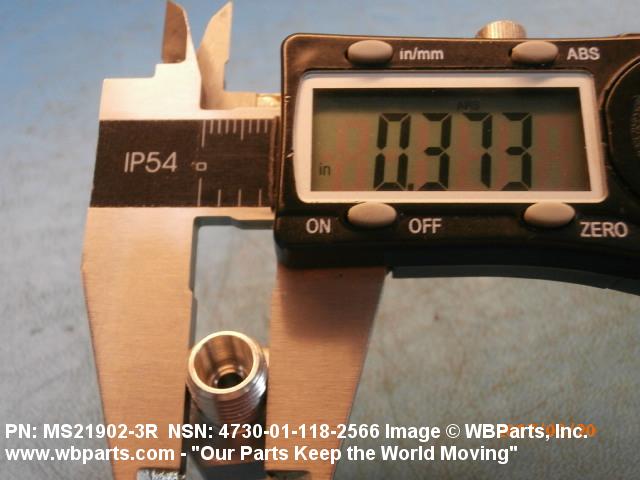

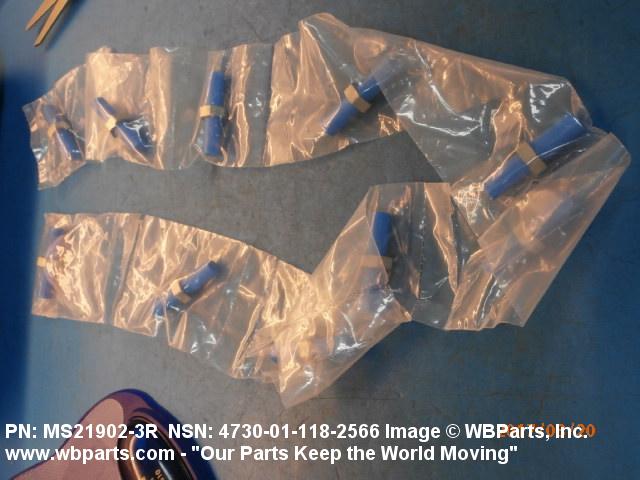

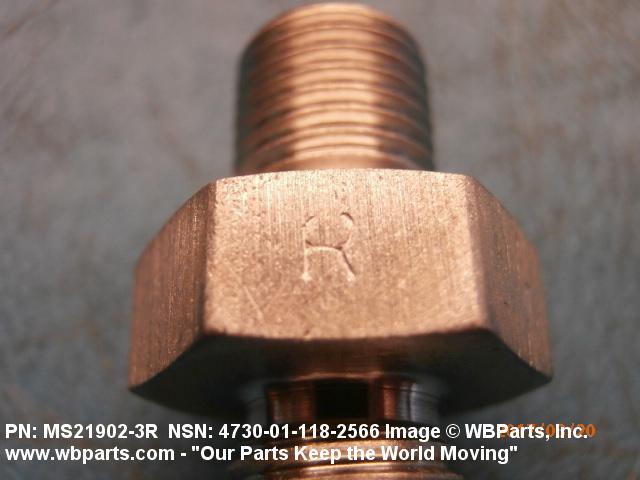

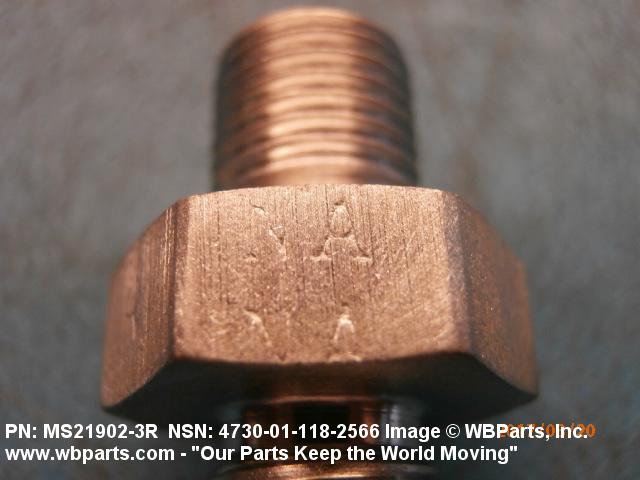

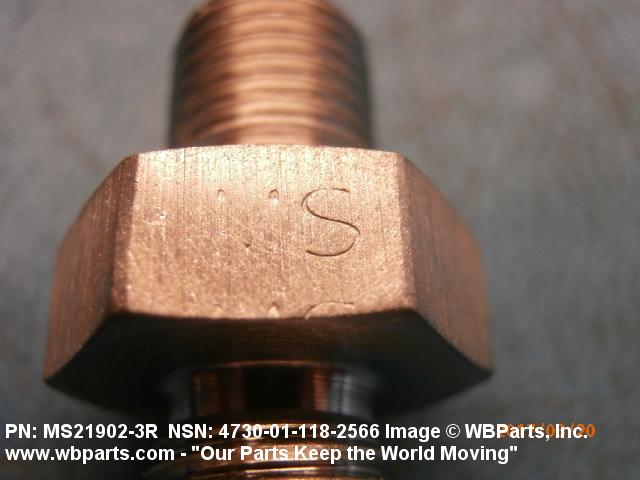

Drawings & Photos | NSN 4730-01-118-2566

Part Number	Request Date	QTY	Origin
4730-01-118-2566	2019-12-336	155	DIBBS
4730-01-118-2566	2019-11-325	155	DIBBS
4730-01-118-2566	2017-03-64	250	DIBBS
4730-01-118-2566	2017-02-54	10	United States
4730-01-118-2566	2014-12-342	302	DIBBS
4730-01-118-2566	2014-07-202	173	DIBBS
AS21902	2012-10-285	1	US
4730-01-118-2566	2011-09-245	195	DIBBS
4730-01-118-2566	2011-06-158	169	DIBBS

Cross Reference | NSN 4730-01-118-2566

Part Number	Cage Code	Manufacturer
AS21902	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS21902-3R	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS21902-3R	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS21902-3S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-118-2566

Compare

Related Products | NSN 4730-01-118-2566

4730-01-118-2568, 4730-01-118-2570, 4730-01-118-2594, 4730-01-118-2652, 4730-01-118-2653

Technical Data | NSN 4730-01-118-2566

Characteristic	Specifications
MATERIAL	STEEL COMP 347 OR STEEL COMP 316 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	66,300 SERIES FED STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
MEDIA FOR WHICH DESIGNED	AERONAUTICAL FLUID 1ST RESPONSE OXYGEN, GASEOUS 2ND RESPONSE
MAXIMUM OPERATING PRESSURE	3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
MAXIMUM OPERATING TEMP	275.0 DEG FAHRENHEIT SINGLE RESPONSE
STYLE DESIGNATOR	A66 FLARELESS W/CENTER WRENCHING FACILITY
CONNECTION TYPE	THREADED EXTERNAL BOSS ALL ENDS
CONNECTION STYLE	B71A EXTERNAL SEAT FOR GASKET SEAL 1ST END
THREAD SERIES DESIGNATOR	UNJF 1ST END
NOMINAL THREAD SIZE	0.375 INCHES ALL ENDS
THREAD CLASS	3A ALL ENDS

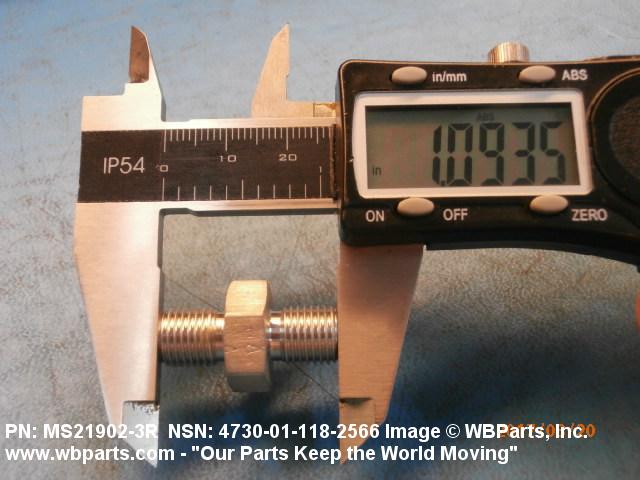

NOMINAL OVERALL LENGTH	1.094 INCHES
SPECIFICATION/STANDARD DATA	96906-MS21902 GOVERNMENT STANDARD

Restrictions/Controls & Freight Information | NSN 4730-01-118-2566

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4730-01-118-2566

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
