NSN 4730-01-113-9256 2601081, 01-113-9256, 011139256
Product Details | SEDIMENT STRAINER ELEMENT
4730-01-113-9256 A replaceable device designed to remove solid particles from flowing liquids. The removal of particles is accomplished by porous material (metallic or non-metallic), wire mesh, perforated metal, or the like, constructed so the liquid can flow through the device while the solid particles are retained. It is designed to fit into a STRAINER, SEDIMENT (or similar cavity). It may have a reinforcement to prevent collapsing, distorting or rupturing. The degree of particles removed must be nominally rated at 50 microns, or more, or absolutely rated at 75 microns, or more. See also FILTER ELEMENT, FLUID.
Part Alternates: 2601081, 4730-01-113-9256, 01-113-9256, 4730011139256, 011139256
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 06 JUN 1981 | 01-113-9256 | 18347 ( STRAINER ELEMENT, SEDIMENT ) |

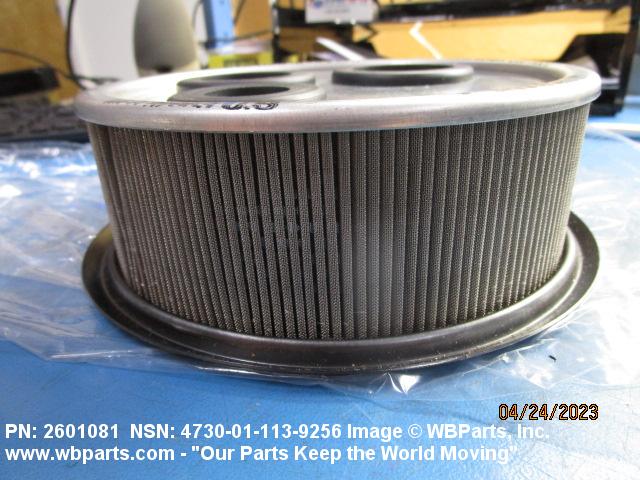

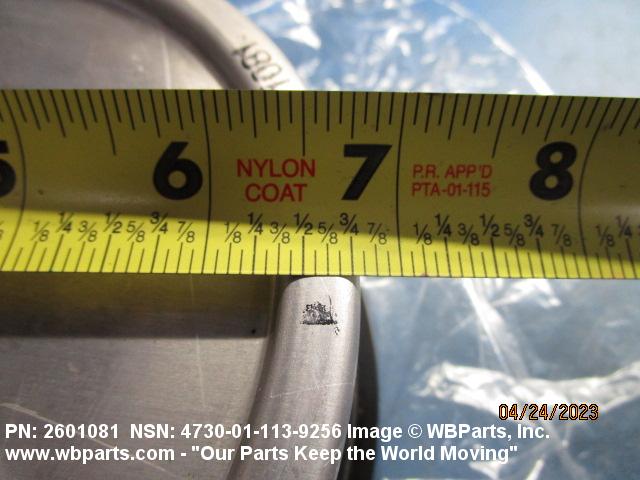

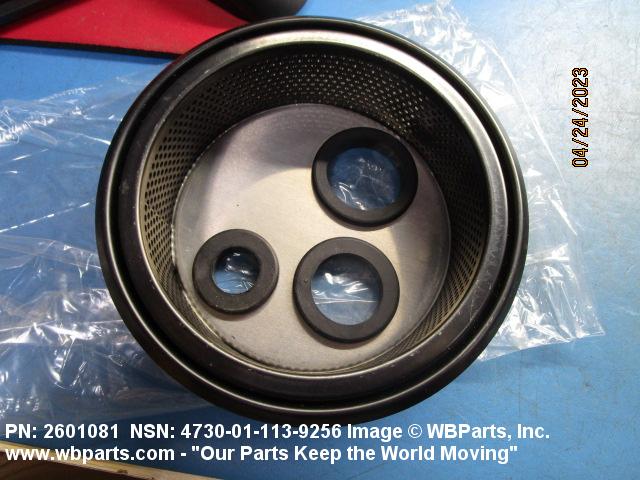

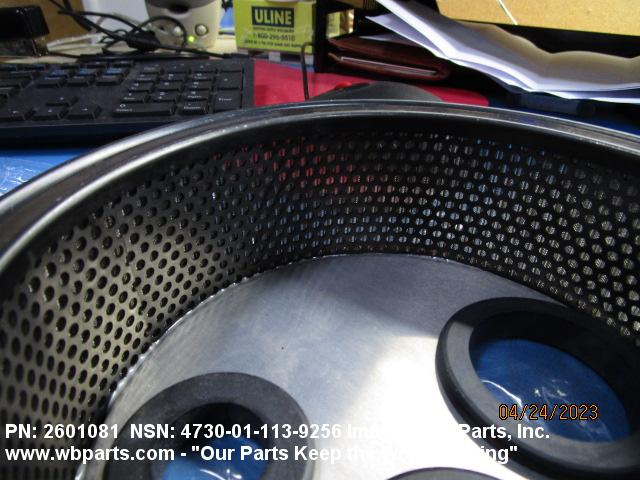

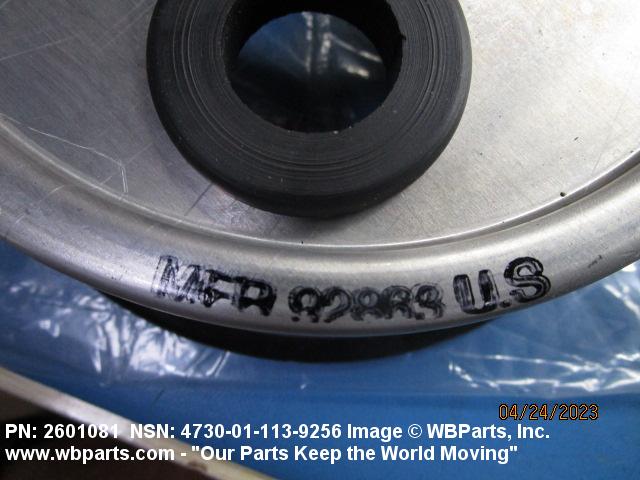

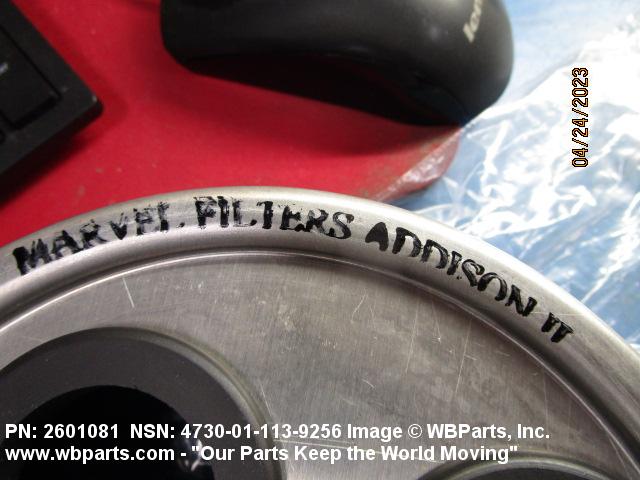

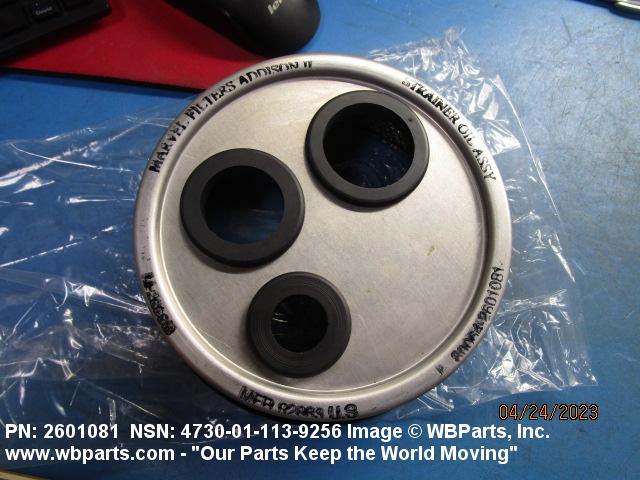

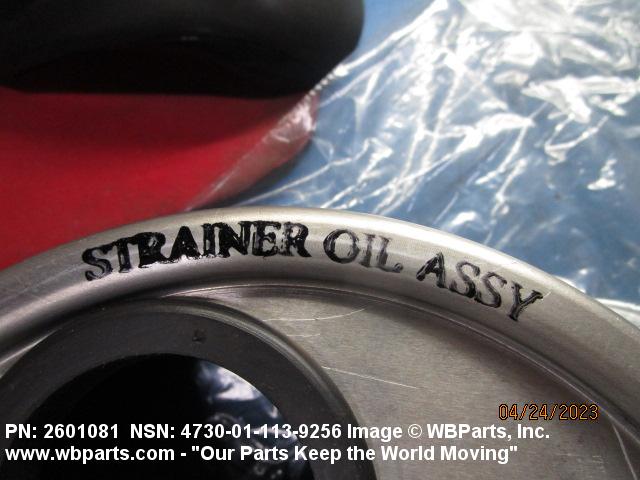

Drawings & Photos | NSN 4730-01-113-9256
Demand History | NSN 4730-01-113-9256
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-113-9256 | 2023-04-116 | 25 | DIBBS |
| 4730-01-113-9256 | 2023-03-76 | 15 | United States |
| 4730-01-113-9256 | 2023-03-69 | 15 | United States |
| 4730-01-113-9256 | 2022-10-293 | 32 | DIBBS |
| 4730-01-113-9256 | 2022-10-290 | 90 | DIBBS |
| 4730-01-113-9256 | 2022-01-02 | 61 | DIBBS |
| 4730-01-113-9256 | 2021-03-63 | 88 | DIBBS |
| 4730-01-113-9256 | 2020-03-72 | 69 | DIBBS |
| 4730-01-113-9256 | 2019-12-336 | 81 | DIBBS |
| 4730-01-113-9256 | 2019-07-210 | 65 | DIBBS |
| 4730-01-113-9256 | 2019-03-66 | 69 | DIBBS |
| 4730-01-113-9256 | 2018-10-274 | 100 | DIBBS |
| 4730-01-113-9256 | 2018-09-263 | 100 | DIBBS |
| 4730-01-113-9256 | 2018-09-250 | 95 | DIBBS |
| 4730-01-113-9256 | 2018-08-239 | 95 | DIBBS |
| 4730-01-113-9256 | 2018-08-228 | 95 | DIBBS |
| 4730-01-113-9256 | 2017-12-356 | 63 | DIBBS |
| 4730-01-113-9256 | 2017-12-355 | 63 | DIBBS |
| 4730-01-113-9256 | 2017-01-25 | 100 | DIBBS |
| 4730-01-113-9256 | 2015-06-152 | 148 | DIBBS |
| 4730-01-113-9256 | 2014-11-327 | 105 | DIBBS |
| 4730-01-113-9256 | 2014-02-49 | 87 | DIBBS |
| 4730-01-113-9256 | 2014-02-34 | 87 | DIBBS |
| 4730-01-113-9256 | 2013-12-359 | 78 | DIBBS |
| 4730-01-113-9256 | 2013-04-105 | 203 | DIBBS |
| 4730-01-113-9256 | 2011-02-38 | 85 | DIBBS |
| 4730-01-113-9256 | 2010-01-26 | 373 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-113-9256
Related Products | NSN 4730-01-113-9256
Technical Data | NSN 4730-01-113-9256
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| FILTERING MEDIA DESIGN | MESH |
| MESH SIZE | 60.0 |
| WIRE DIAMETER | 0.00750 INCHES NOMINAL |
| STYLE DESIGNATOR | A1 CYLINDRICAL |
| FIRST END FLANGE THICKNESS | 0.062 INCHES NOMINAL |
| SECOND END FLANGE THICKNESS | 0.026 INCHES MINIMUM AND 0.034 INCHES MAXIMUM |
| LENGTH | 2.468 INCHES NOMINAL |
| ELEMENT OUTSIDE DIAMETER | 6.718 INCHES NOMINAL |
| END CONNECTION TYPE | FLANGED ALL ENDS |
Restrictions/Controls & Freight Information | NSN 4730-01-113-9256
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | Q | 36 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069100 | FILTERS:CARTRIDGES/ELEMENTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-113-9256
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | T | |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Q | 36 months |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Q | 36 months |
| Purchasing | QTY UOM |
1 EA : Each |
