NSN 4730-01-113-4565 MB238, T000312971, 01-113-4565
Product Details | FLANGE TO PIPE STRAIGHT ADAPTER
4730-01-113-4565 An adapter having a flange connection on one end designed to connect with another flange connection or a compression type mounting pad. The other end has standard pipe threads or is unthreaded and designed to accommodate a pipe. It is designed to join a flange or flange fitting to a pipe or pipe fitting in a straight line.
Part Alternates: MB238, T000312971, 4730-01-113-4565, 01-113-4565, 4730011134565, 011134565
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 27 MAY 1981 | 01-113-4565 | 29656 ( ADAPTER, STRAIGHT, FLANGE TO PIPE ) |

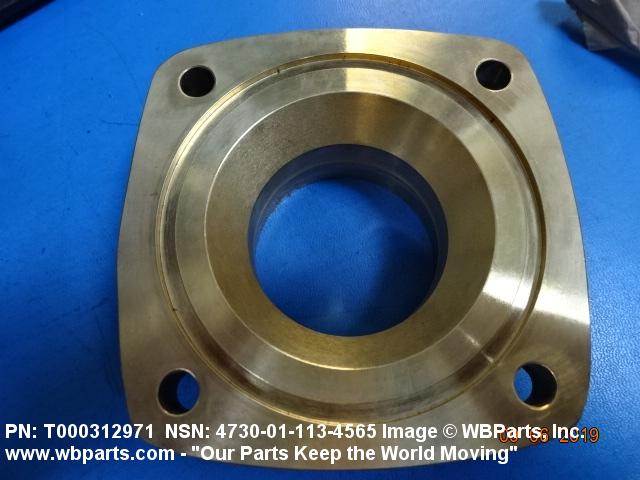

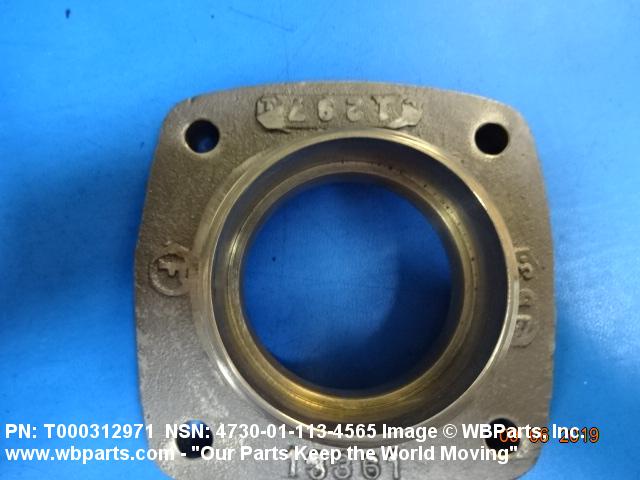

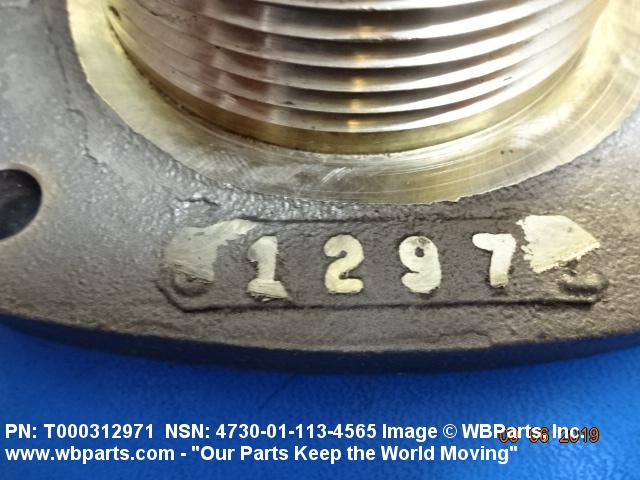

Drawings & Photos | NSN 4730-01-113-4565
Demand History | NSN 4730-01-113-4565
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MB238 | 2022-03-90 | 6 | DIBBS |
| T000312971SF | 2022-03-90 | 6 | DIBBS |
| MB238 | 2020-10-303 | 14 | DIBBS |
| T000312971SF | 2020-10-303 | 14 | DIBBS |
| MB238 | 2019-11-329 | 15 | DIBBS |
| T000312971 | 2019-11-329 | 15 | DIBBS |
| MB238 | 2019-11-317 | 15 | DIBBS |
| T000312971 | 2019-11-317 | 15 | DIBBS |
| T000312971 | 2019-08-240 | 1 | United States |
| MB238 | 2019-07-192 | 14 | DIBBS |
| T000312971 | 2019-07-192 | 14 | DIBBS |
| 4730-01-113-4565 | 2013-03-71 | 69 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-113-4565
Technical Data | NSN 4730-01-113-4565
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL PIPE 1ST END FLANGE 2ND END |
| CONNECTION STYLE | B67B PLAIN 1ST END |
| FLANGE SHAPE | ROUND WITH HOLES 2ND END |
| NOMINAL OUTSIDE DIAMETER | 4.878 INCHES 2ND END |
| NOMINAL THICKNESS | 0.560 INCHES 2ND END |
| BOLT HOLE QUANTITY | 4 2ND END |
| BOLT HOLE NOMINAL DIAMETER | 0.386 INCHES 2ND END |
| BOLT CIRCLE NOMINAL DIAMETER | 3.400 INCHES 2ND END |
| FLANGE FACE DESIGN | RECESSED WITH GASKET GROOVE 2ND END |
| RECESS NOMINAL DIAMETER | 3.790 INCHES 2ND END |
| RECESS NOMINAL DEPTH | 0.106 INCHES 2ND END |
| THREAD SERIES DESIGNATOR | NPT 1ST END |
| NOMINAL THREAD SIZE | 2.500 INCHES 1ST END |
| NOMINAL OVERALL LENGTH | 1.870 INCHES |
Restrictions/Controls & Freight Information | NSN 4730-01-113-4565
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052185 | PIPE,TUBING,OR PIPE OR TUBING FIT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-113-4565
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
