NSN 4730-01-102-8742 7030703018, 70307-03018, 70307-03018-102
Product Details | FLANGE TO HOSE STRAIGHT ADAPTER
4730-01-102-8742 An adapter having a flange connection on one end designed to connect with another flange connection or a compression type mounting pad. The other end has standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed to accommodate a hose. It is designed to join a flange or flange fitting to a hose or hose fitting in a straight line.
Part Alternates: 7030703018, 70307-03018, 70307-03018-102, 971C21, 971C-21, 4730-01-102-8742, 01-102-8742, 4730011028742, 7030703018102, 011028742
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 30 OCT 1980 | 01-102-8742 | 29655 ( ADAPTER, STRAIGHT, FLANGE TO HOSE ) |

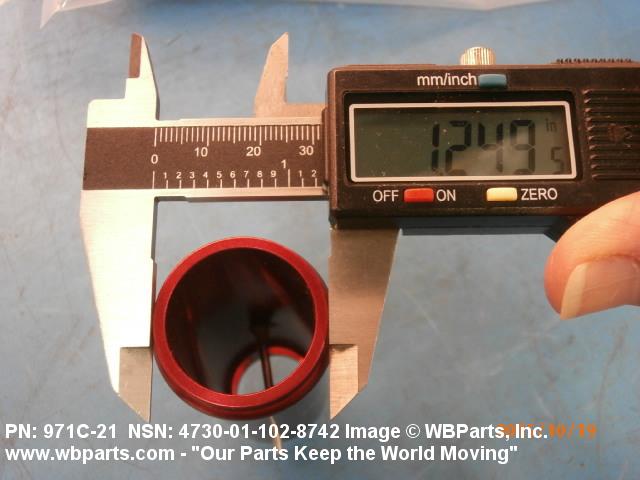

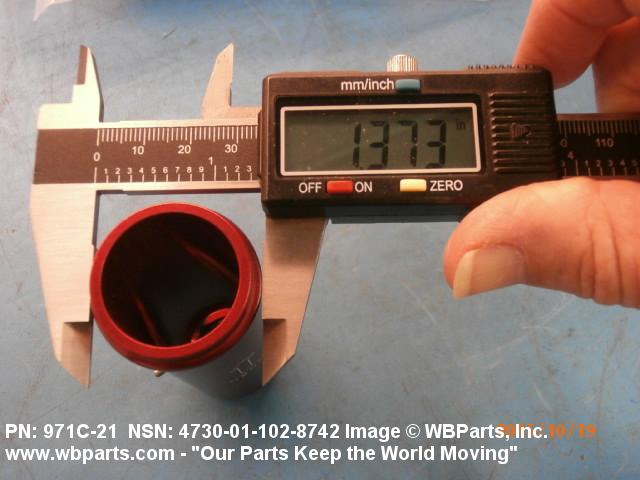

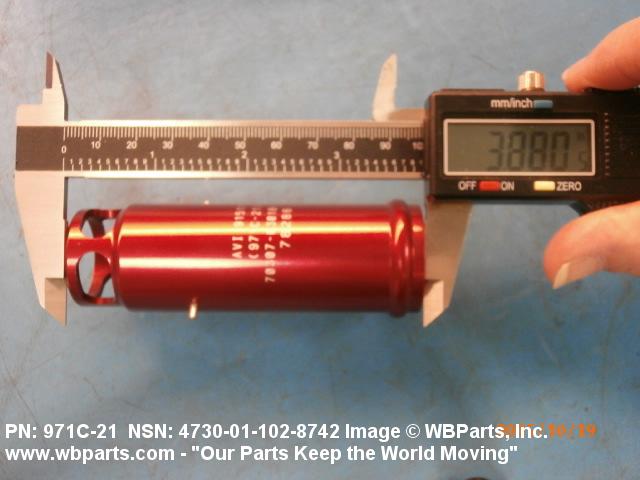

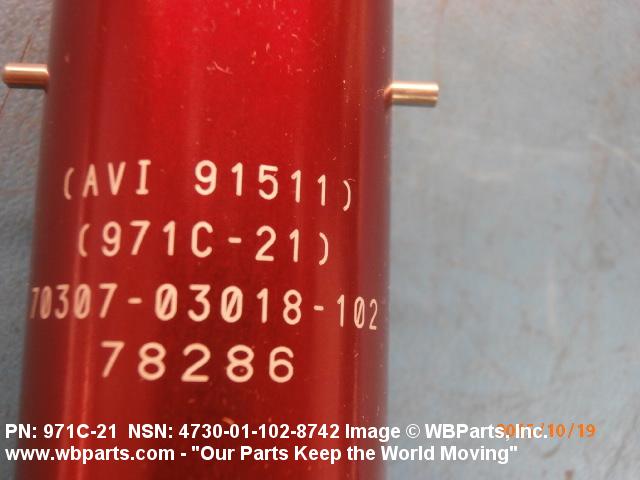

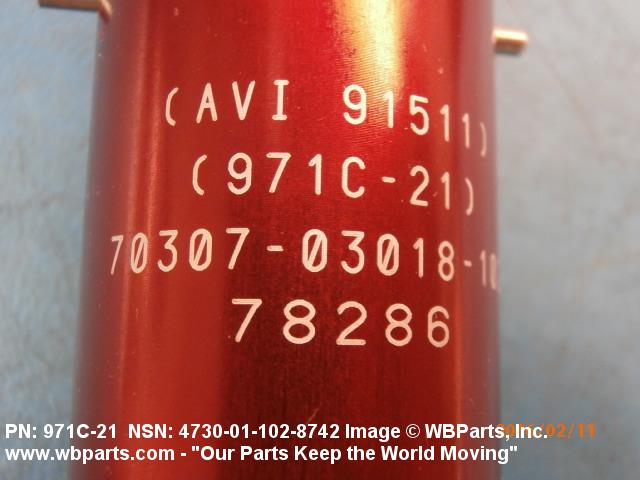

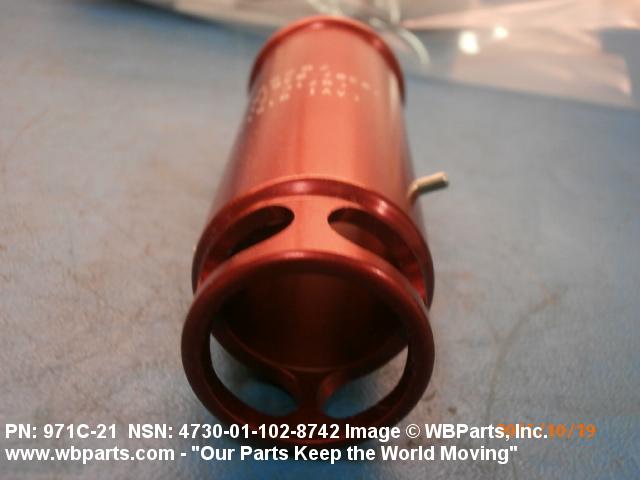

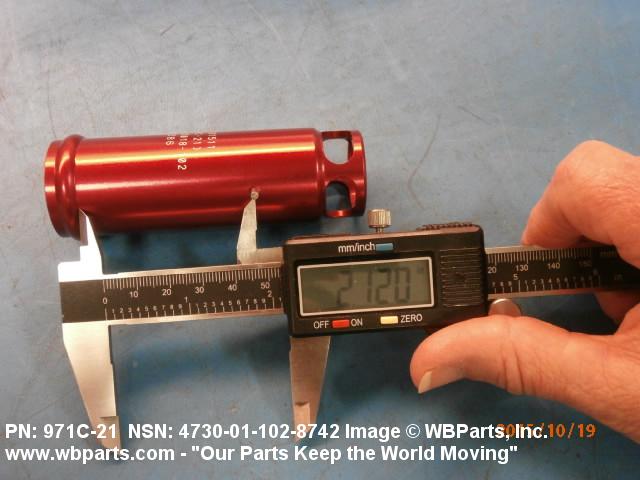

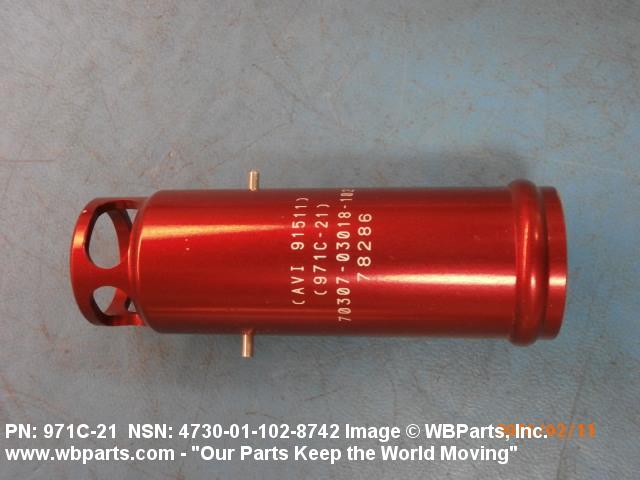

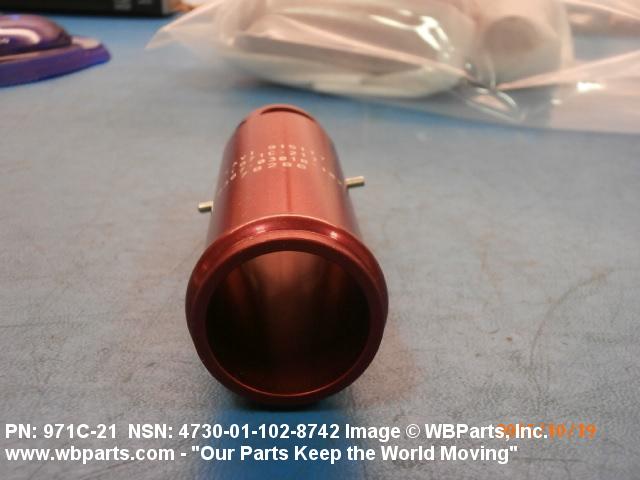

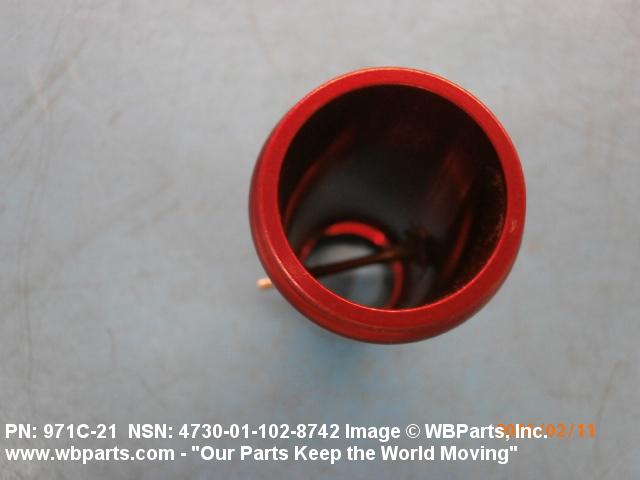

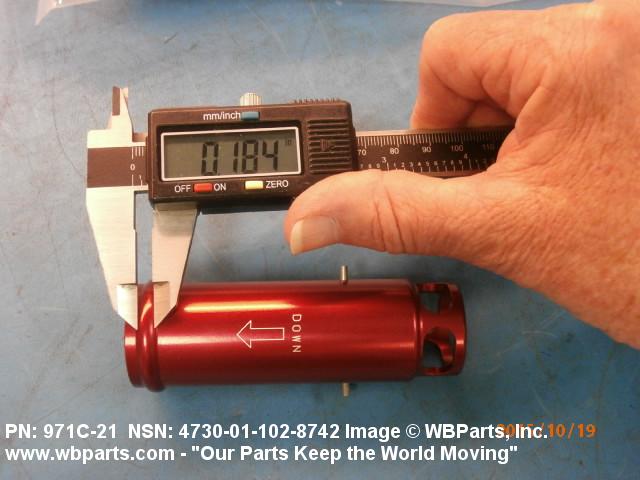

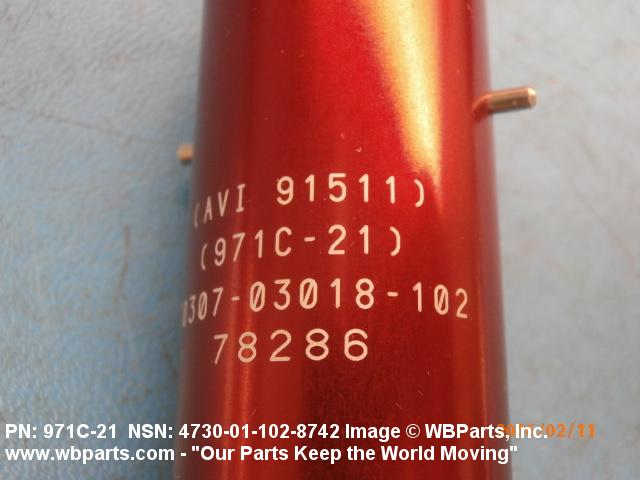

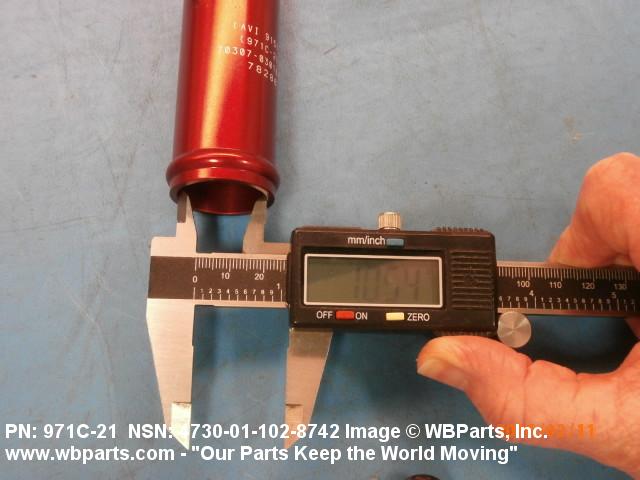

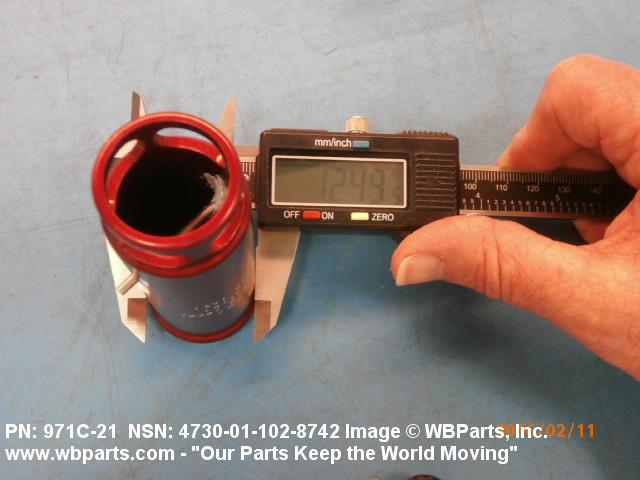

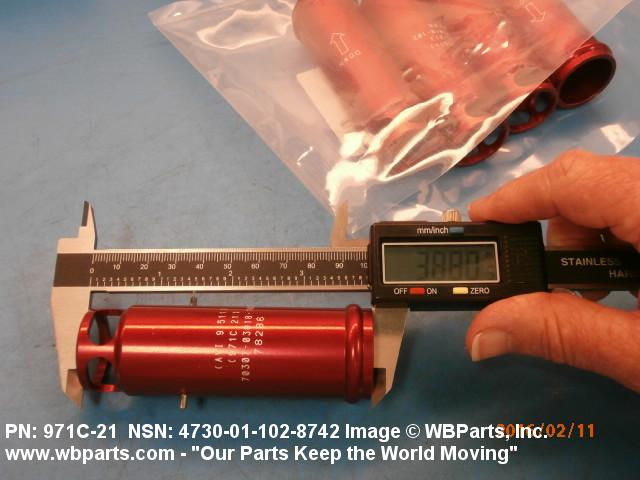

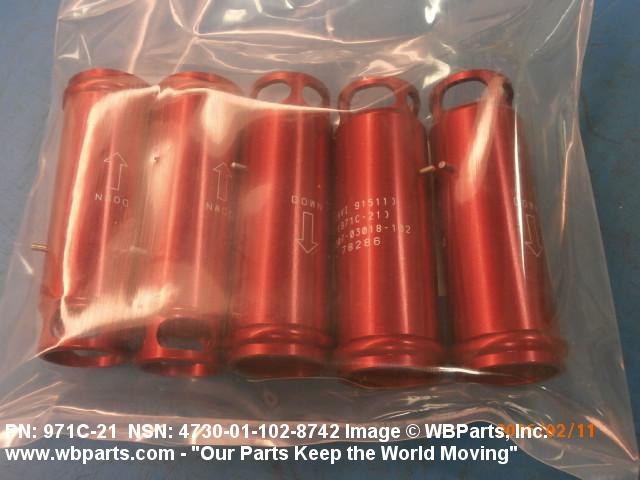

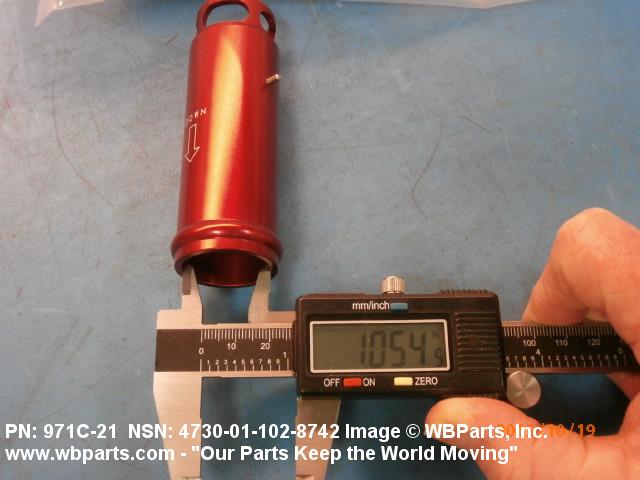

Drawings & Photos | NSN 4730-01-102-8742
Demand History | NSN 4730-01-102-8742
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 971C-21 | 2024-09-266 | 214 | DIBBS |
| 971C-21 | 2024-08-221 | 88 | DIBBS |
| 4730-01-102-8742 | 2024-07-190 | 1 | US |
| 971C-21 | 2024-05-130 | 71 | DIBBS |
| 971C-21 | 2023-12-355 | 74 | DIBBS |
| 7030-70-301-8102 | 2023-09-263 | 11 | United States |
| 971C-21 | 2023-07-183 | 204 | DIBBS |
| 971C-21 | 2023-04-96 | 112 | DIBBS |
| 4730-01-102-8742 | 2023-03-61 | 1 | United States |
| 4730-01-102-8742 | 2023-02-41 | 1 | US |
| 4730-01-102-8742 | 2023-02-38 | 1 | United States |
| 971C-21 | 2023-01-26 | 92 | DIBBS |
| 971C-21 | 2022-11-329 | 58 | DIBBS |
| 971C-21 | 2022-11-317 | 58 | DIBBS |
| 971C-21 | 2022-03-76 | 116 | DIBBS |
| 971C-21 | 2021-05-147 | 38 | DIBBS |
| 971C-21 | 2021-05-136 | 38 | DIBBS |
| 7030-70-301-8102 | 2021-04-110 | 2 | United States |
| 7030-70-301-8102 | 2021-03-68 | 4 | US |
| 7030-70-301-8102 | 2020-11-309 | 1 | US |
| 4730-01-102-8742 | 2020-09-253 | 1 | United States |
| 4730-01-102-8742 | 2018-08-213 | 5 | US |
| 7030-70-301-8102 | 2018-07-204 | 2 | US |
| 971C21 | 2018-01-29 | 4 | US |
| 4730-01-102-8742 | 2018-01-23 | 1 | US |
| 7030-70-301-8102 | 2018-01-02 | 1 | United States |
| 7030-70-301-8102 | 2017-04-100 | 2 | US |
| 4730-01-102-8742 | 2017-03-68 | 2 | United States |
| 4730-01-102-8742 | 2016-09-257 | 2 | US |
| 4730-01-102-8742 | 2016-09-251 | 1 | US |
| 4730-01-102-8742 | 2015-12-349 | 1 | DIBBS-RFPs |
| 4730-01-102-8742 | 2015-10-274 | 2 | United States |
| 4730-01-102-8742 | 2015-08-230 | 2 | US |
| 4730-01-102-8742 | 2015-08-230 | 5 | US |
| 971C21 | 2015-06-177 | 4 | United States |
| 971C21 | 2015-06-177 | 4 | United States |
| 4730-01-102-8742 | 2015-06-174 | 2 | United States |
| 4730-01-102-8742 | 2015-05-139 | 1 | US |
| 7030-70-301-8102 | 2014-09-253 | 4 | United States |
| 7030-70-301-8102 | 2014-09-253 | 4 | United States |
| 4730-01-102-8742 | 2013-07-185 | 245 | DIBBS |
| 4730-01-102-8742 | 2013-06-153 | 163 | DIBBS |
| 4730-01-102-8742 | 2013-04-119 | 1 | US |
| 70307-03018-102 | 2013-02-46 | 4 | United States |
| 4730-01-102-8742 | 2012-06-159 | 72 | DIBBS |
| 4730-01-102-8742 | 2012-02-46 | 329 | DIBBS |
| 4730-01-102-8742 | 2011-11-325 | 1 | United States |
| 971C21 | 2011-11-305 | 1 | United States |
| 4730-01-102-8742 | 2011-09-266 | 243 | DIBBS |
| 4730-01-102-8742 | 2011-02-41 | 144 | DIBBS |
| 4730-01-102-8742 | 2010-12-348 | 133 | DIBBS |
| 4730-01-102-8742 | 2010-05-146 | 90 | DIBBS |
| 971C21 | 2009-02-35 | 17 | US |
| 4730-01-102-8742 | 2008-10-288 | 27 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-102-8742
Related Products | NSN 4730-01-102-8742
Technical Data | NSN 4730-01-102-8742
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OR COPPER ALLOY OVERALL |
| MEDIA FOR WHICH DESIGNED | FUEL SINGLE RESPONSE |
| CONNECTION TYPE | FLANGE 1ST END UNTHREADED INTERNAL HOSE 2ND END |
| CONNECTION STYLE | B102A BEADED 2ND END |
| FLANGE SHAPE | RECTANGULAR WITH HOLES 1ST END |
| NOMINAL THICKNESS | 0.230 INCHES 1ST END |
| NOMINAL LENGTH | 3.000 INCHES 1ST END |
| NOMINAL WIDTH | 3.000 INCHES 1ST END |
| BOLT HOLE QUANTITY | 4 1ST END |
| BOLT HOLE NOMINAL DIAMETER | 0.267 INCHES 1ST END |
| CENTER TO CENTER NOMINAL DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 2.120 INCHES 1ST END |
| CENTER TO CENTER NOMINAL DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 2.120 INCHES 1ST END |
| FLANGE FACE DESIGN | RAISED STRAIGHT 1ST END |
| RAISED FACE NOMINAL HEIGHT | 0.170 INCHES 1ST END |
| RAISED FACE NOMINAL DIAMETER | 1.990 INCHES 1ST END |
| NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED | 1.076 INCHES 2ND END |
| NOMINAL OUTSIDE DIAMETER HOSE ACCOMMODATED | 1.250 INCHES 2ND END |
| NOMINAL OVERALL LENGTH | 4.000 INCHES |
| SPECIAL FEATURES | E/I SIKORSKY AIRCRAFT P/N 70307-03018 VALVE,SUMP/TANK DRAIN,FUSELAGE AFT LOWER,FUEL SYSTEM |
| MANUFACTURERS CODE | 78286 |
| MFR SOURCE CONTROLLING REFERENCE | 70307-03018 |
Restrictions/Controls & Freight Information | NSN 4730-01-102-8742
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-102-8742
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
