NSN 4730-01-101-3582 0989-042-2000SPECIAL PIECE 1, 09890422000SPECIALPIECE1, 01-101-3582
Product Details | PIPE FLANGE
4730-01-101-3582 An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified).
Part Alternates: 0989-042-2000SPECIAL PIECE 1, 09890422000SPECIALPIECE1, 4730-01-101-3582, 01-101-3582, 4730011013582, 011013582
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 27 SEP 1980 | 01-101-3582 | 03798 ( FLANGE, PIPE ) |
Drawings & Photos | NSN 4730-01-101-3582
Cross Reference | NSN 4730-01-101-3582
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0989-042-2000SPECIAL PIECE 1 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-101-3582
Technical Data | NSN 4730-01-101-3582
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-C-15726 MIL SPEC SINGLE MATERIAL RESPONSE |

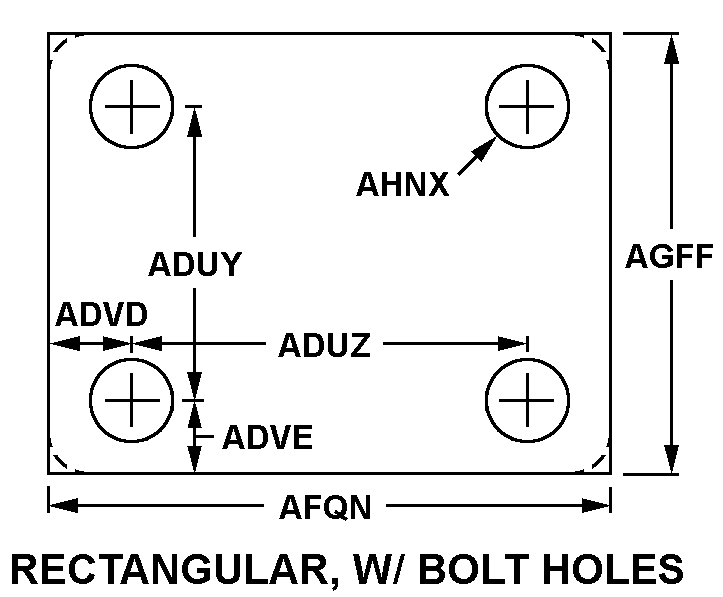

| STYLE DESIGNATOR | 9 RECTANGULAR, WITH BOLT HOLES |
| FLANGE LENGTH | 6.687 INCHES MINIMUM AND 6.812 INCHES MAXIMUM |
| FLANGE WIDTH | 6.312 INCHES MINIMUM AND 6.637 INCHES MAXIMUM |
| BOLT HOLE QUANTITY | 4 |
| FLANGE SECTION STYLE | 5 PLAIN FACE |
| THICKNESS | 0.984 INCHES MINIMUM AND 1.016 INCHES MAXIMUM |
| NOMINAL PIPE SIZE FOR WHICH DESIGNED | 3.000 INCHES |
| FACE SEATING SURFACE CONDITION | MACHINED |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | MATERIAL WILL BE IN ACCORDANCE WITH SHIPS PARTS CONTROL CENTER ACTIVITY HX QUALITY CONTROL,MANUFACTURING AND TESTING SPECIFICATIONS |
| CRITICALITY CODE JUSTIFICATION | ZZZY |
| MANUFACTURERS CODE | 53711 |
| DESIGN CONTROL REFERENCE | 0989-042-2000SPECIAL PIECE 1 |
