Product Details | PIPE FLANGE

4730-01-090-7737 An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified).

Part Alternates: XM66818, 12282988, 4730-01-090-7737, 01-090-7737, 4730010907737, 010907737

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG) NSN Assign. NIIN
47 24 FEB 1980 01-090-7737

Drawings & Photos | NSN 4730-01-090-7737


Demand History | NSN 4730-01-090-7737

Part Number Request Date QTY Origin
4730-01-090-7737 2021-04-109 197 DIBBS
4730-01-090-7737 2021-04-98 197 DIBBS
4730-01-090-7737 2020-12-363 137 DIBBS
4730-01-090-7737 2020-12-352 137 DIBBS
4730-01-090-7737 2018-05-135 203 DIBBS
4730-01-090-7737 2014-10-296 295 US
4730-01-090-7737 2014-10-293 295 DIBBS
4730-01-090-7737 2010-02-36 214 DIBBS
4730-01-090-7737 2009-08-215 34 DIBBS

Cross Reference | NSN 4730-01-090-7737

Part Number Cage Code Manufacturer
12282988 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
XM66818 01417 GENERAL DYNAMICS LAND SYSTEMS INC. DBA GENERAL DYNAMICS LAND SYSTEMS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-090-7737

Technical Data | NSN 4730-01-090-7737

Characteristic Specifications
MATERIAL STEEL COMP 321
MATERIAL DOCUMENT AND CLASSIFICATION MIL-T-8606 MIL SPEC SINGLE MATERIAL RESPONSE OR QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE

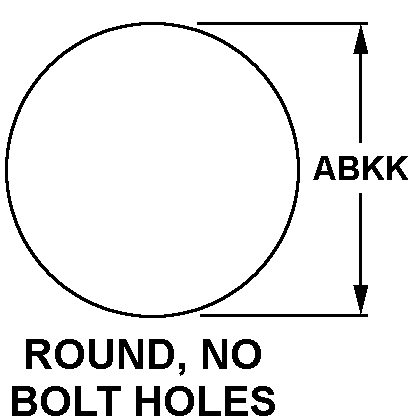

STYLE DESIGNATOR 10 ROUND, NO BOLT HOLES
FLANGE DIAMETER 3.120 INCHES NOMINAL

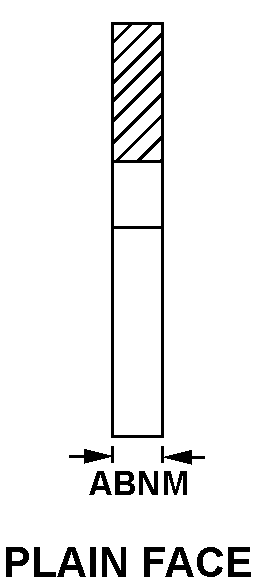

FLANGE SECTION STYLE 5 PLAIN FACE
THICKNESS 0.620 INCHES NOMINAL
FACE SEATING SURFACE CONDITION MACHINED

Restrictions/Controls & Freight Information | NSN 4730-01-090-7737

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 052190 PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating U 50
Less than truck load rating W Rating Variable
Water commodity Code 576 unknown
Originating Activity Code AZ U.S. Army Tank-Automotive and Armaments
Command
Warren, MI 48397-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
