Product Details | PIPE FLANGE
4730-01-089-9393 An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified).
Part Alternates: 7551749, 4730-01-089-9393, 01-089-9393, 4730010899393, 010899393
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 10 FEB 1980 | 01-089-9393 | 03798 ( FLANGE, PIPE ) |
Drawings & Photos | NSN 4730-01-089-9393
Cross Reference | NSN 4730-01-089-9393
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7551749 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-089-9393
Related Products | NSN 4730-01-089-9393
Technical Data | NSN 4730-01-089-9393
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1020 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-635 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | OXIDE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-13924 FED STD SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | 10 ROUND, NO BOLT HOLES |
| FLANGE DIAMETER | 3.000 INCHES NOMINAL |

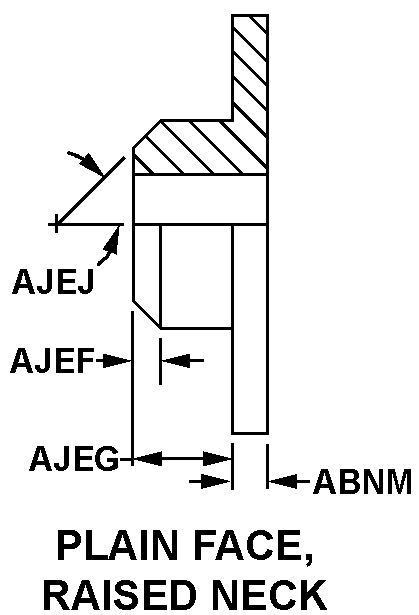

| FLANGE SECTION STYLE | 42 PLAIN FACE, RAISED NECK |
| THICKNESS | 1.950 INCHES NOMINAL |
| BEVEL DEPTH | 0.060 INCHES NOMINAL |
| NECK HEIGHT | 0.750 INCHES NOMINAL |
| REDUCER FLANGE HOLE TYPE | CONCENTRIC |
| SPECIAL FEATURES | COLOR: BLACK; 2 KEYWAYS: ONE 0.2520 IN WIDE AND ONE 0.3760 IN WIDE |
| III END ITEM IDENTIFICATION | 4910-01-037-9417 |
| MANUFACTURERS CODE | 19204 |
| DESIGN CONTROL REFERENCE | 7551749 |
