Product Details | BLIND PIPE FLANGE
4730-01-077-7575 An item used for covering or closing the end of a flanged pipe fitting. The face may be drilled for connecting bolts or studs. Excludes FLANGE, PIPE.
Part Alternates: 1854776, 4730-01-077-7575, 01-077-7575, 4730010777575, 010777575
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 31 MAY 1979 | 01-077-7575 | 03793 ( FLANGE, PIPE, BLIND ) |
Drawings & Photos | NSN 4730-01-077-7575
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-077-7575
Related Products | NSN 4730-01-077-7575
Technical Data | NSN 4730-01-077-7575
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRASS ROD,QQ-B-626,COM 24,1/2 |
| SURFACE TREATMENT | PAINT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | SPERRY NO.436 M6951295-2 MFR REF SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | 1 ROUND, ONE BOLT HOLE CIRCLE |
| BOLT CIRCLE DIAMETER | 1.781 INCHES NOMINAL |
| FLANGE DIAMETER | 2.031 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.144 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 4 |

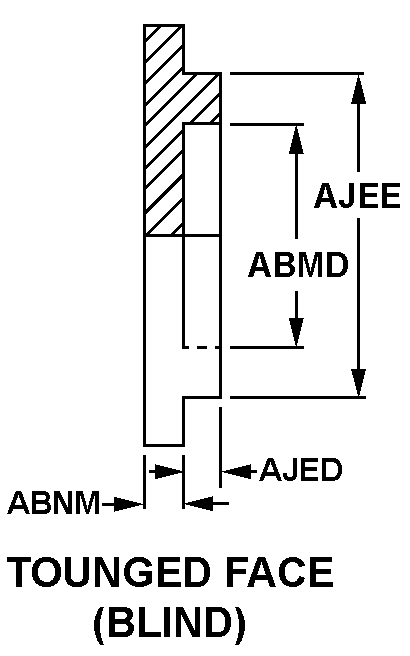

| FLANGE SECTION STYLE | 27 TONGUED FACE |
| RECESS DIAMETER | 1.260 INCHES NOMINAL |
| THICKNESS | 0.125 INCHES NOMINAL |
| RAISED FACE HEIGHT | 0.031 INCHES NOMINAL |
| RAISED FACE DIAMETER | 1.447 INCHES NOMINAL |
| FACE SEATING SURFACE CONDITION | GROUND |
