NSN 4730-01-056-9586 M2406327, M24063-27, BG380026510ITEM6

Product Details | SOUND ISOLATION INSERT SET

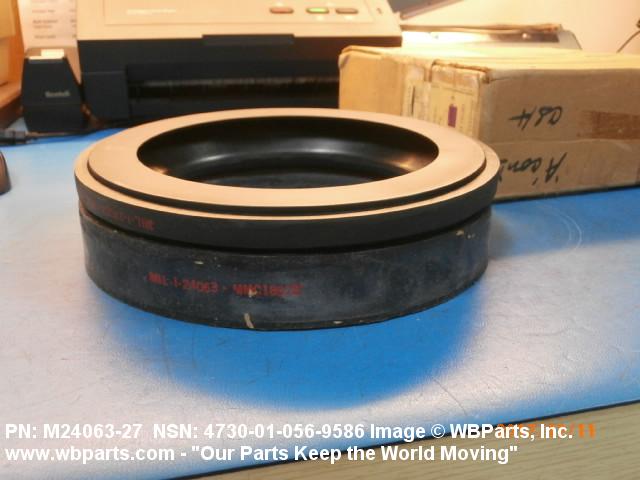

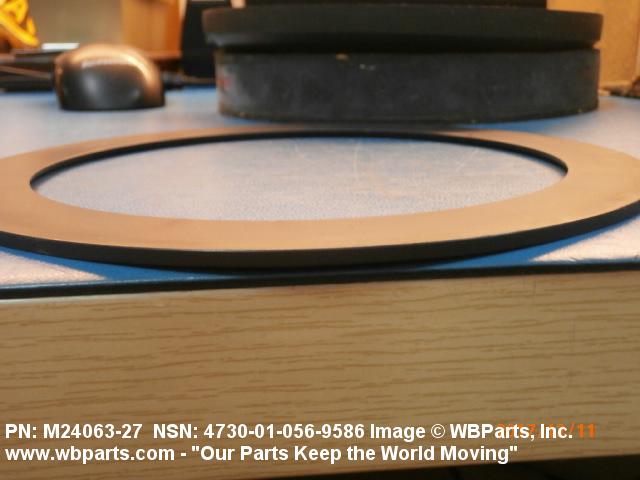

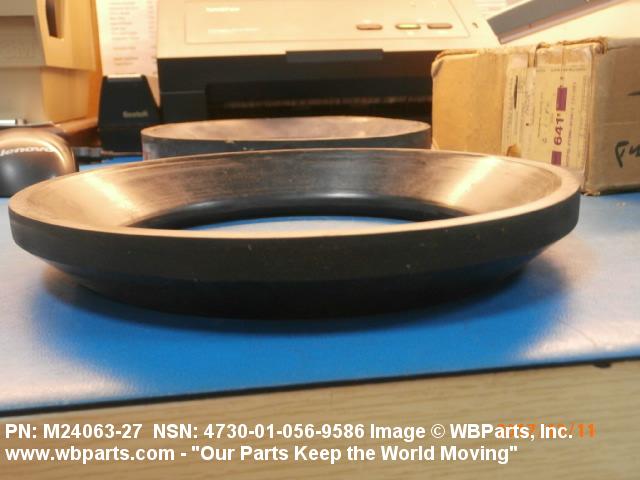

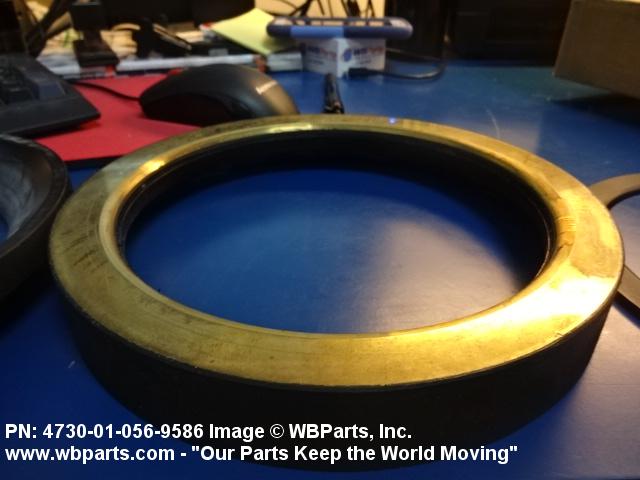

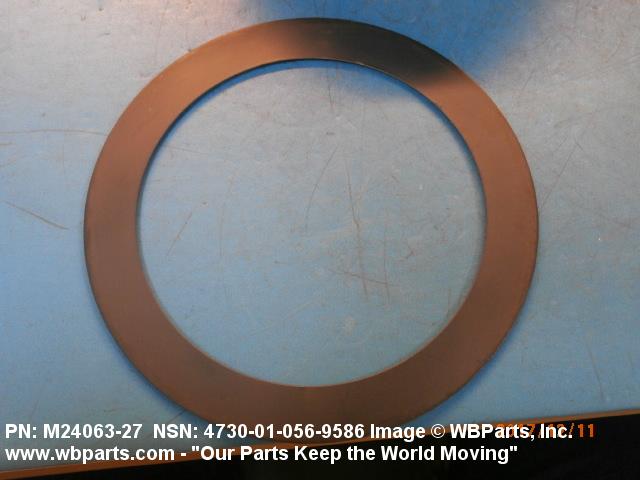

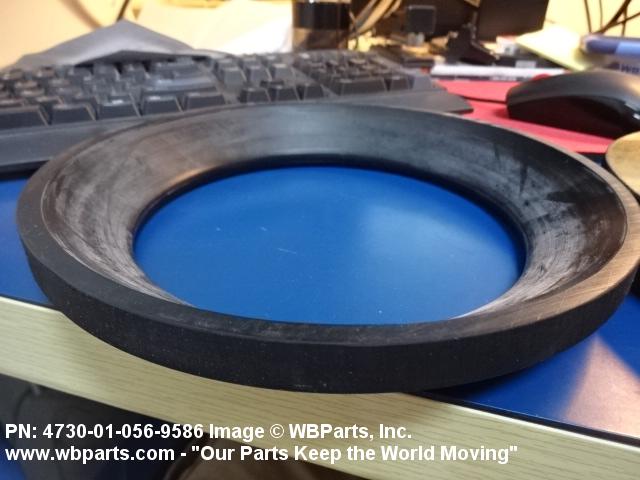

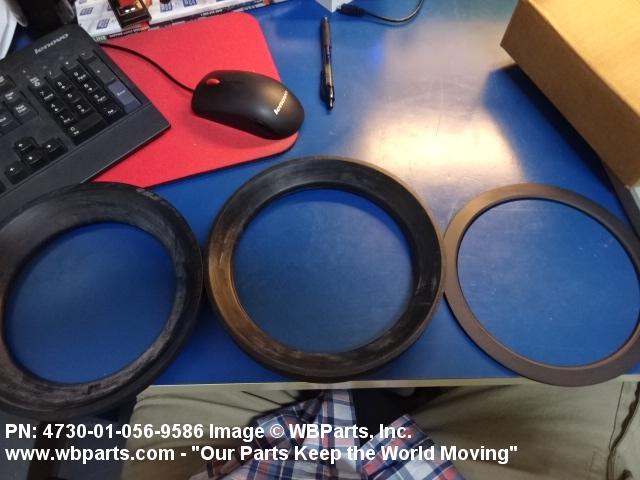

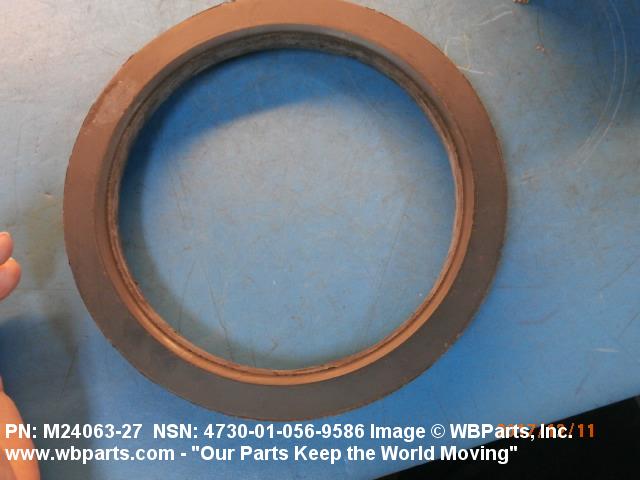

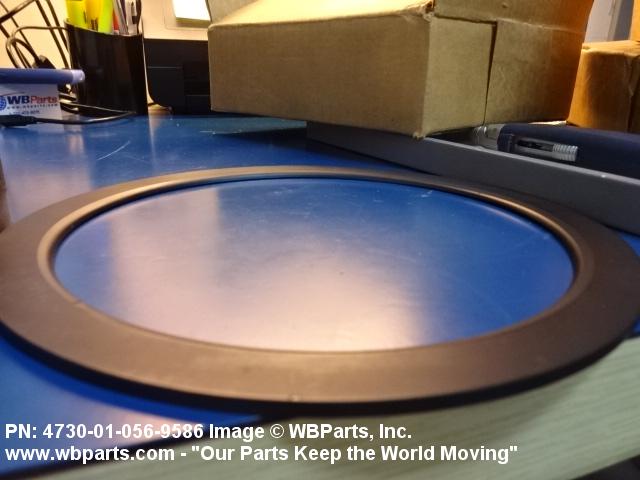

4730-01-056-9586 A multipiece item consisting of a nonmetallic positioning insert, thrust insert with a bonded washer and a metallic backup washer. It is specifically designed for use in a piping system sound isolation coupling flexible connector for the purpose of isolating sound.

Part Alternates: M2406327, M24063-27, BG380026510ITEM6, BG38002-65-10ITEM6, MILI24063, MIL-I-24063, 01-31672-00, 76696-16X3 PIEC, 7669616X3PIEC, 4730-01-056-9586, 01-056-9586, 4730010569586, 013167200, 010569586

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	03 MAR 1978	01-056-9586	33462 ( INSERT SET, SOUND ISOLATION )

Drawings & Photos | NSN 4730-01-056-9586

Part Number	Request Date	QTY	Origin
M2406327	2020-02-37	4	United States
M2406327	2019-07-191	6	United States
4730-01-056-9586	2019-06-178	1	US
M2406327	2019-05-140	4	United States
4730-01-056-9586	2018-12-352	2	United States
M2406327	2018-07-211	4	United States
4730-01-056-9586	2017-11-325	4	United States

Cross Reference | NSN 4730-01-056-9586

Part Number	Cage Code	Manufacturer
01-31672-00	70709	MARISON INDUSTRIES INC BARCO DIV
76696-16X3 PIEC	96169	ELECTRIC BOAT CORPORATION
BG38002-65-10ITEM6	70709	MARISON INDUSTRIES INC BARCO DIV
M24063-27	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-I-24063	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-056-9586

Compare

Related Products | NSN 4730-01-056-9586

4730-01-056-9661, 4730-01-056-9724, 4730-01-056-9952, 4730-01-056-9954, 4730-01-056-9955

Technical Data | NSN 4730-01-056-9586

Characteristic	Specifications
COMPONENT QUANTITY	3
NONSUPPLY ITEMS AND QUANTITIES	POSITIONING INSERT 1; THRUST INSERT 1;THRUST WASHER 1
END ITEM NAME	SOUND ISOLATION COUPLING FLEXIBLE CONNECTOR
END ITEM SOURCE	81349
END ITEM IDENTIFICATION	RISIC-1
SPECIAL FEATURES	80 DUROMETER HARDNESS,THRUST WASHER TETRAFLOUROETHYLENE COATED
SPECIFICATION/STANDARD DATA	81349-MIL-I-24063B(SH) GOVERNMENT SPECIFICATION

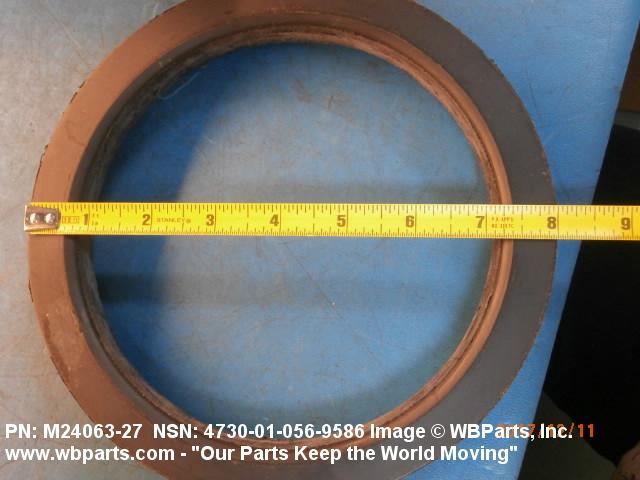

NONDEFINITIVE SPEC/STD DATA	A STYLE AND 5IN. SIZE
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M24063-27

Restrictions/Controls & Freight Information | NSN 4730-01-056-9586

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	052190	PIPE,TUBING,OR PIPE OR TUBING FITTI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
