NSN 4730-01-054-3760 MS183010511, MS1830105X110, MS18301-05X11-0
Product Details | FLUID FLOW RESTRICTOR UNIT
4730-01-054-3760 An assembly consisting of an orifice in a fixed plate, disk, or tube with screens or filters on one or both sides, depending on the direction of filtered flow. See RESTRICTOR, FLUID FLOW.
Part Alternates: MS183010511, MS1830105X110, MS18301-05X11-0, 4730-01-054-3760, 01-054-3760, 4730010543760, 010543760
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 18 JAN 1978 | 01-054-3760 | 20933 ( RESTRICTOR UNIT, FLUID FLOW ) |

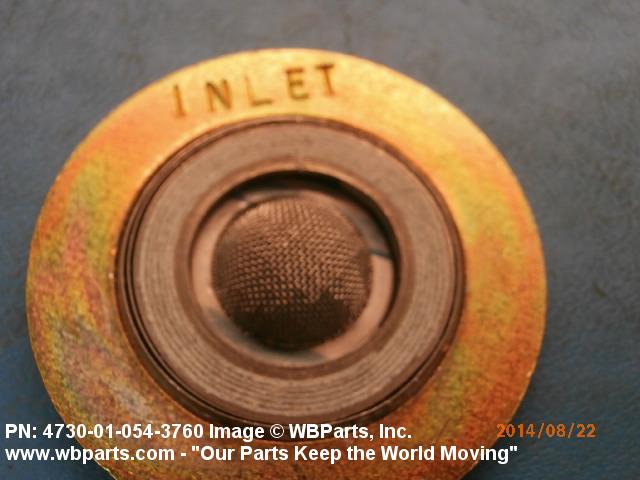

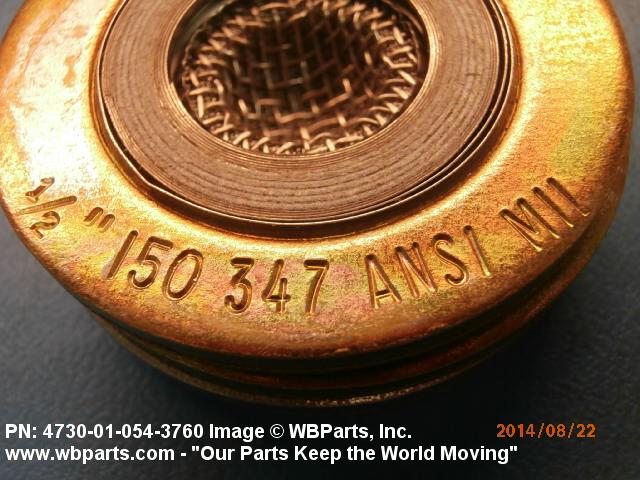

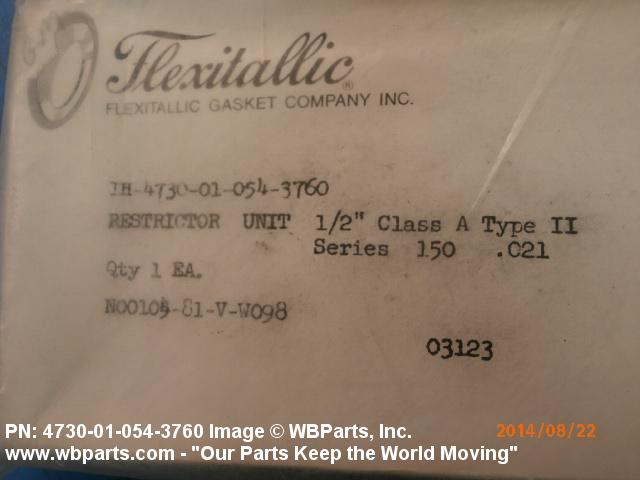

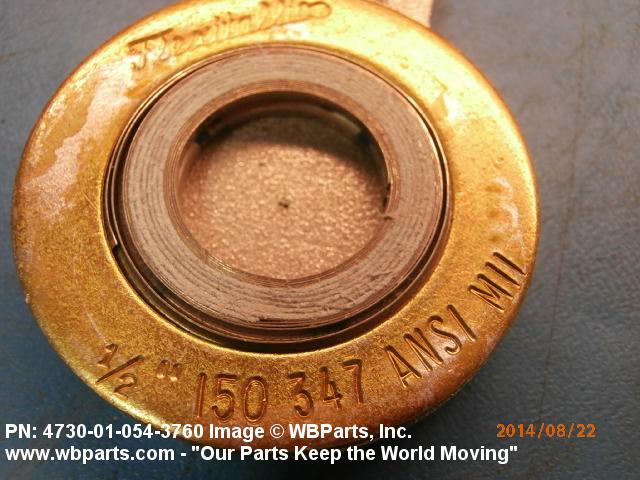

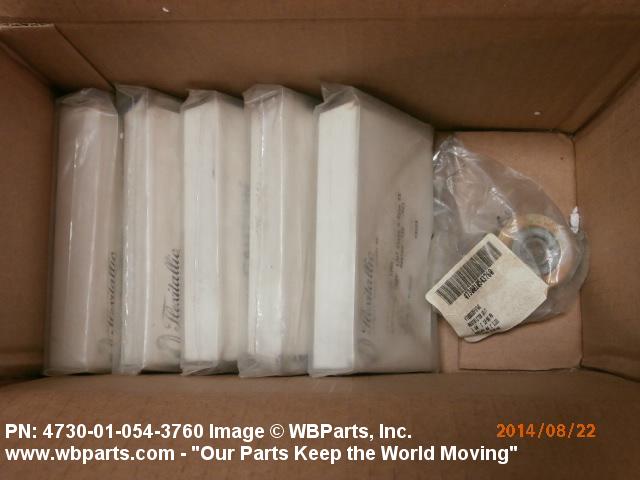

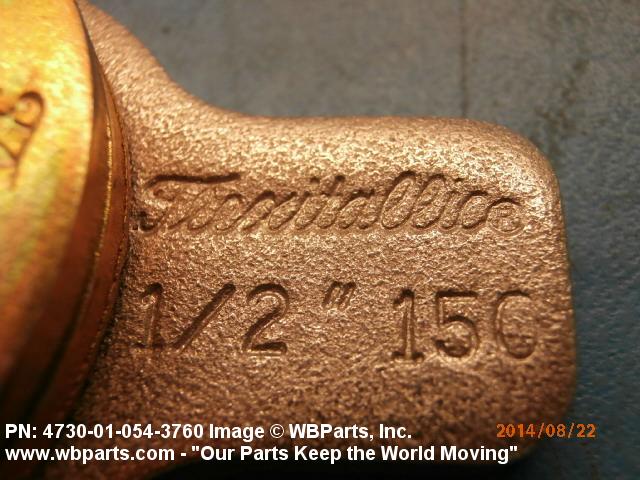

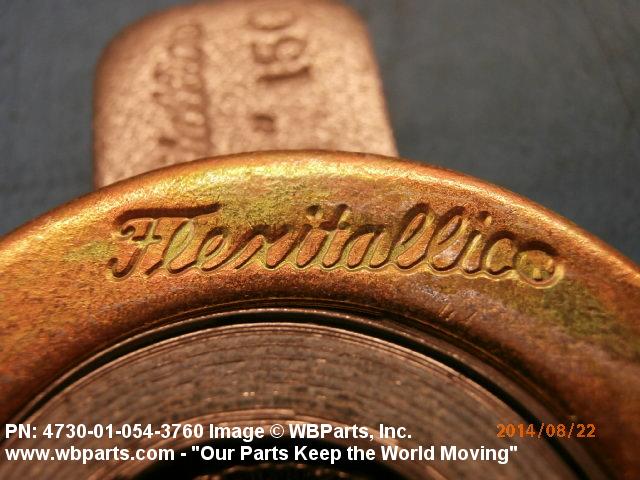

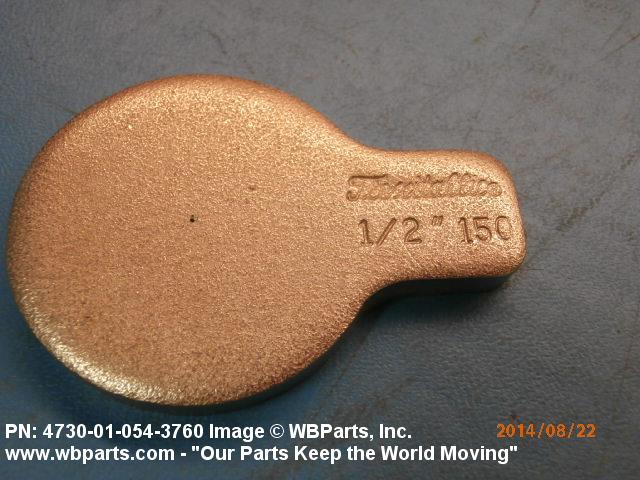

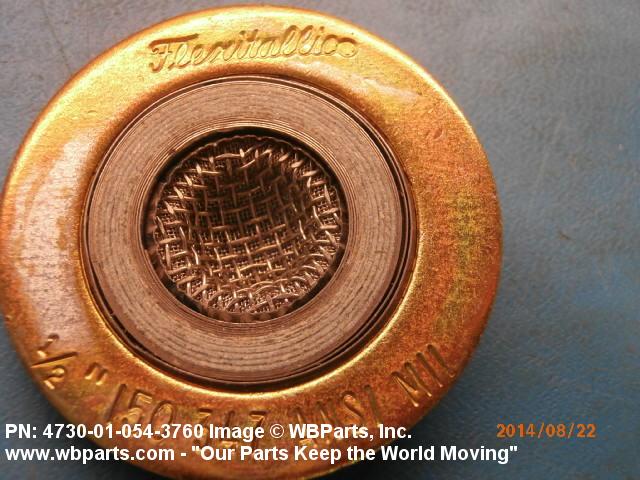

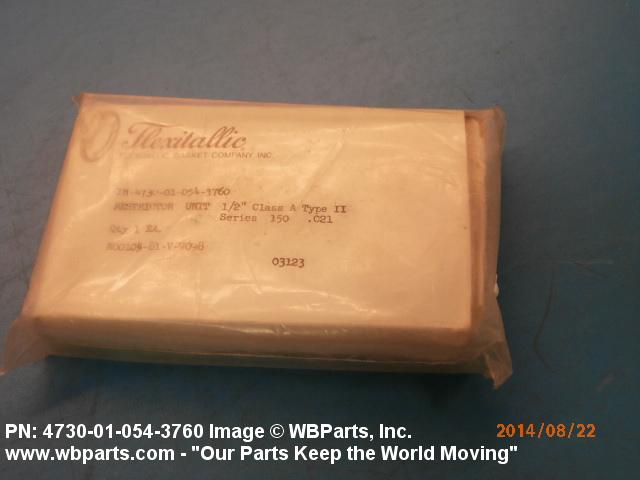

Drawings & Photos | NSN 4730-01-054-3760
Demand History | NSN 4730-01-054-3760
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 11 | 2024-11-324 | 1 | us |
| 4730-01-054-3760 | 2024-03-80 | 16 | US |
| 4730-01-054-3760 | 2023-12-362 | 5 | DIBBS |
| 4730-01-054-3760 | 2023-05-124 | 5 | DIBBS |
| 4730-01-054-3760 | 2023-04-114 | 5 | DIBBS |
| 4730-01-054-3760 | 2023-02-32 | 11 | United States |
| 4730-01-054-3760 | 2022-09-263 | 11 | DIBBS |
| 4730-01-054-3760 | 2015-03-72 | 6 | DIBBS |
| 4730-01-054-3760 | 2015-03-61 | 6 | DIBBS |
| 4730-01-054-3760 | 2015-02-50 | 1 | DIBBS |
| 4730-01-054-3760 | 2014-08-216 | 21 | United States |
| 4730-01-054-3760 | 2014-07-198 | 21 | DIBBS |
| 4730-01-054-3760 | 2014-07-187 | 21 | DIBBS |
| 4730-01-054-3760 | 2014-02-37 | 59 | DIBBS |
| 4730-01-054-3760 | 2014-01-22 | 59 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-054-3760
Related Products | NSN 4730-01-054-3760
Technical Data | NSN 4730-01-054-3760
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | STRAIGHT |
| BODY MATERIAL | STEEL,CORROSION RESISTING,TYPE 304 |
| STRAINER TYPE AND QUANTITY | 1 SCREEN |
| SCREENING MATERIAL | STEEL,CORROSION RESISTING,TYPE 18-8 |
| VALVE SIZE | 0.500 INCHES |
| ORIFICE DIAMETER | 0.0210 INCHES NOMINAL |
| PRESSURE RATING | 150.0 POUNDS PER SQUARE INCH NOMINAL |
| END CONNECTION COMPONENT TYPE AND SIZE FOR WHICH DESIGNED | 1/2 IN. PIPE |
| DEPARTURE FROM CITED DOCUMENT | AS MODIFIED BY ORIFICE SIZE |
| III END ITEM IDENTIFICATION | FAN VIRGINIA CLASS CGN (CGN-41). |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS18301-05,11 |
Restrictions/Controls & Freight Information | NSN 4730-01-054-3760
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-054-3760
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
