NSN 4730-01-054-1700 C7551216, C7551-2-16, W90216D

Product Details | TUBE OUTLET

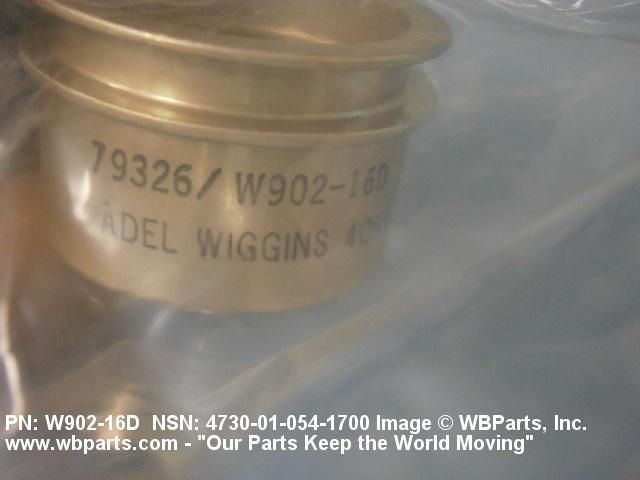

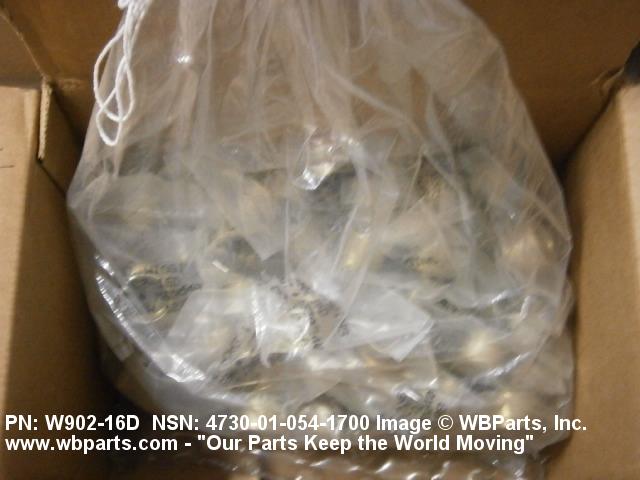

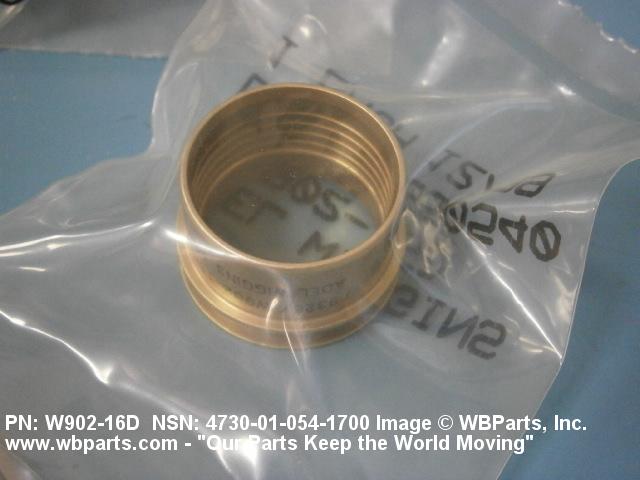

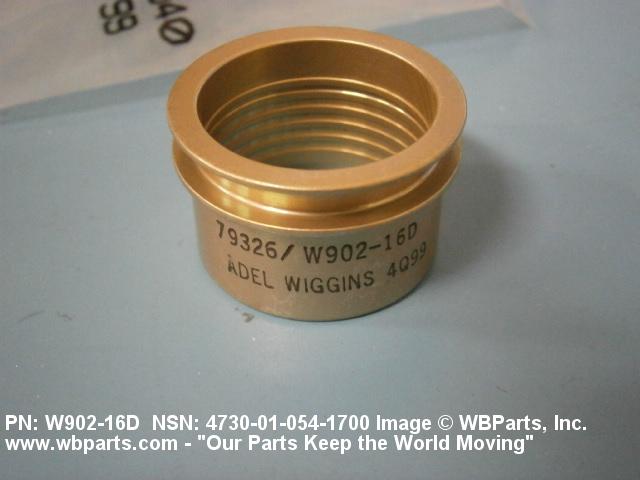

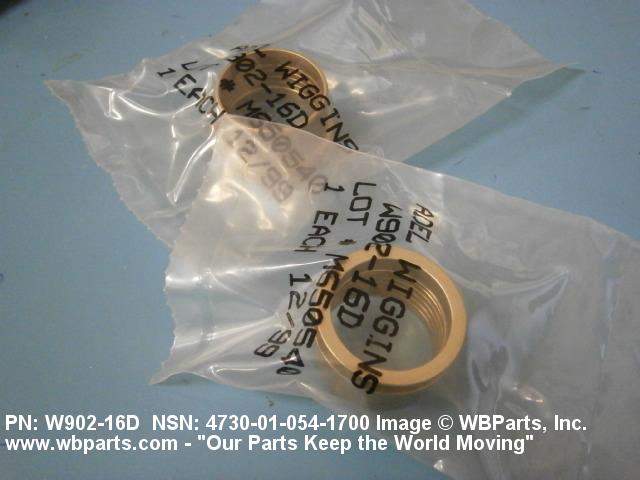

4730-01-054-1700 A fitting having one end connection designed to accommodate tubing. The other end is designed to be attached to a flat surface or the external contour of a tube, pipe or fitting by welding, brazing, soldering, or the like. It is used to fabricate tube outlets in a pipe or tubing line.

Part Alternates: C7551216, C7551-2-16, W90216D, W902-16D, 07A06116A, 07A061-16A, 14F3216A, 14F32-16A, 4730-01-054-1700, 01-054-1700, 4730010541700, 010541700

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	16 JAN 1978	01-054-1700	28336 ( OUTLET, TUBE )

Drawings & Photos | NSN 4730-01-054-1700

Part Number	Request Date	QTY	Origin
W90216D	2020-11-328	80	DE
07A061-16A	2020-10-303	92	DIBBS
14F32-16A	2020-10-303	92	DIBBS
W902-16D	2020-10-303	92	DIBBS
07A061-16A	2020-08-233	30	DIBBS
14F32-16A	2020-08-233	30	DIBBS
W902-16D	2020-08-233	30	DIBBS
4730-01-054-1700	2016-02-32	40	DIBBS
4730-01-054-1700	2016-01-19	40	DIBBS
4730-01-054-1700	2014-11-326	75	United States
4730-01-054-1700	2014-11-321	75	DIBBS
4730-01-054-1700	2014-11-310	75	DIBBS
W90216D	2012-03-83	30	Canada
C7551216	2009-06-153	14	United States

Cross Reference | NSN 4730-01-054-1700

Part Number	Cage Code	Manufacturer
07A061-16A	1W025	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
14F32-16A	24984	HYDRAFLOW
C7551-2-16	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
W902-16D	79326	TRANSDIGM INC DBA ADEL WIGGINS GROUP- MILITARY
