NSN 4730-01-052-3460 MR54040T08W, MR54040T-08W, MR54041T08W
Product Details | TUBE COUPLING
4730-01-052-3460 A straight fitting 12 inches (304 mm) long or under having the same or different type of connection of the same size on both ends. It is designed to join a tube or tube fitting to another tube or tube fitting. Excludes fittings with threaded external connections on both ends. Excludes NIPPLE, PIPE.
Part Alternates: MR54040T08W, MR54040T-08W, MR54041T08W, MR54041T-08W, MR54044T08W, MR54044T-08W, AE166608W, AE16660-8W, C756708L, C7567-08L, 4730-01-052-3460, 01-052-3460, 4730010523460, 010523460
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 13 DEC 1977 | 01-052-3460 | 06078 ( COUPLING, TUBE ) |
Drawings & Photos | NSN 4730-01-052-3460
Demand History | NSN 4730-01-052-3460
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MR54040T-08W | 2024-08-214 | 55 | DIBBS |
| MR54041T-08W | 2024-08-214 | 55 | DIBBS |
| MR54044T-08W | 2024-08-214 | 55 | DIBBS |
| MR54040T-08W | 2024-05-141 | 105 | DIBBS |
| MR54041T-08W | 2024-05-141 | 105 | DIBBS |
| MR54044T-08W | 2024-05-141 | 105 | DIBBS |
| MR54040T-08W | 2024-05-130 | 105 | DIBBS |
| MR54041T-08W | 2024-05-130 | 105 | DIBBS |
| MR54044T-08W | 2024-05-130 | 105 | DIBBS |
| MR54040T-08W | 2024-02-53 | 38 | DIBBS |
| MR54041T-08W | 2024-02-53 | 38 | DIBBS |
| MR54044T-08W | 2024-02-53 | 38 | DIBBS |
| MR54040T-08W | 2023-11-320 | 48 | DIBBS |
| MR54041T-08W | 2023-11-320 | 48 | DIBBS |
| MR54044T-08W | 2023-11-320 | 48 | DIBBS |
| 4730-01-052-3460 | 2018-01-12 | 141 | DIBBS |
| 4730-01-052-3460 | 2018-01-01 | 141 | DIBBS |
| 4730-01-052-3460 | 2008-11-318 | 47 | DIBBS |
Cross Reference | NSN 4730-01-052-3460
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AE16660-8W | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| C7567-08L | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| MR54040T-08W | 50599 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION |
| MR54041T-08W | 50599 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION |
| MR54044T-08W | 50599 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-052-3460
Related Products | NSN 4730-01-052-3460
Technical Data | NSN 4730-01-052-3460
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY UNS R56400 BODY TITANIUM ALLOY UNS R56400 NUT STEEL COMP 302 RETAINER |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4965, 6AL-4V ASSN STD SINGLE MATERIAL RESPONSE BODY AMS 4965, 6AL-4V ASSN STD SINGLE MATERIAL RESPONSE NUT AMS 5637 COMP 302 ASSN STD SINGLE MATERIAL RESPONSE RETAINER AMS 4965 ASSN STD SINGLE MATERIAL RESPONSE OR MIL-T-9047 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |

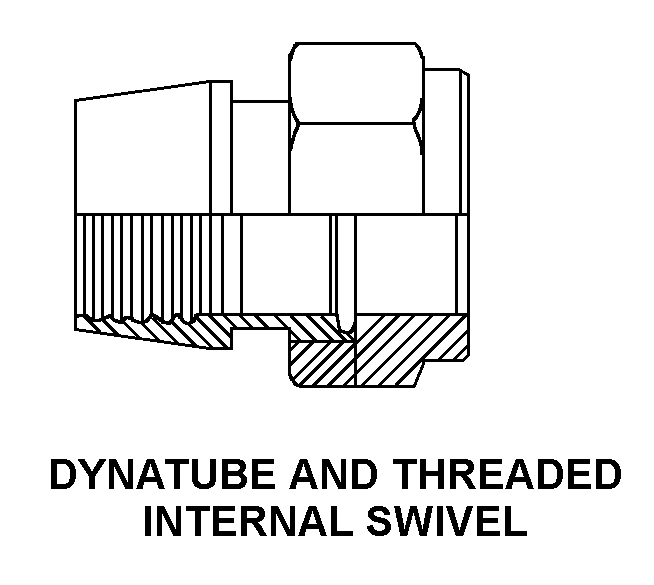

| STYLE DESIGNATOR | A38 DYNATUBE AND THREADED INTERNAL SWIVEL |
| CONNECTION TYPE | THREADED INTERNAL TUBE 1ST END UNTHREADED INTERNAL TUBE 2ND END |
| CONNECTION STYLE | B3 SWIVEL NUT, FLARE 1ST END B52 DYNATUBE MECHANICAL 2ND END |
| NOMINAL WIDTH ACROSS FLATS | 0.875 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNJS 1ST END |
| NOMINAL THREAD SIZE | 0.7188 INCHES 1ST END |
| THREAD QUANTITY PER INCH | 20 1ST END |
| THREAD CLASS | 3B 1ST END |
| NOMINAL OVERALL LENGTH | 1.167 INCHES |
| FURNISHED ITEMS AND QUANTITY | 1 RETAINING WIRE AND 1 TUBE COUPLING NUT AND 1 TUBE COUPLING |
| SPECIAL FEATURES | 2 LOCKWIRE HOLES; FIRST END CONNECTION IS A MODIFIED FLARE/COMPRESSION "DYNATUBE". |
| III END ITEM IDENTIFICATION | B-1B BOMBER |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | FITTING DYNATUBE MECHANICALLY ATTACHED |
Restrictions/Controls & Freight Information | NSN 4730-01-052-3460
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052185 | PIPE,TUBING,OR PIPE OR TUBING FIT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-052-3460
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Materiel Management Aggregation Code | WF | SU:F-16 AIR COMBAT FIGHTER |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
