Product Details | TUBE ELBOW

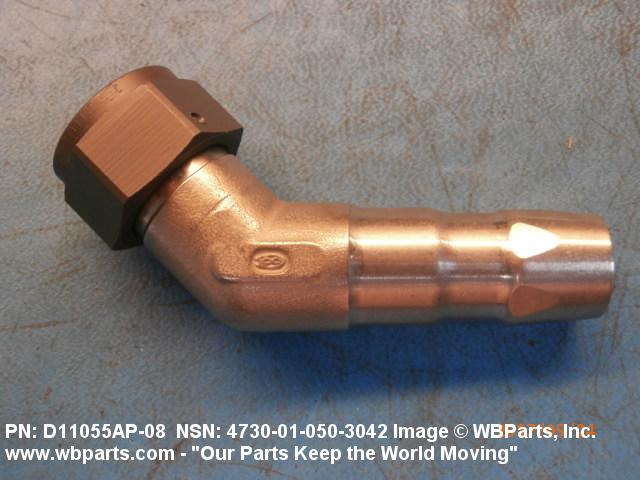

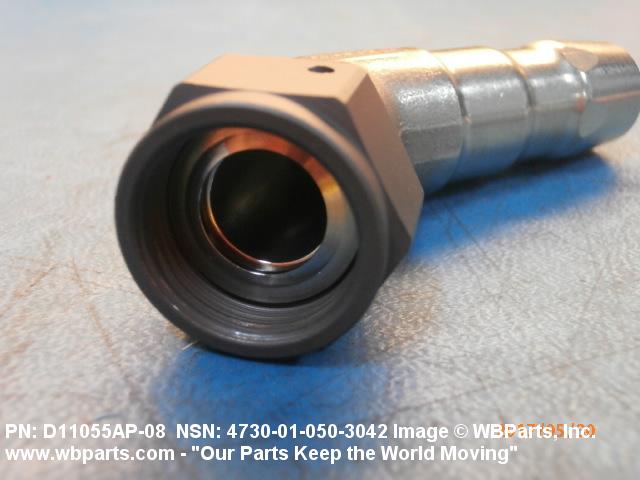

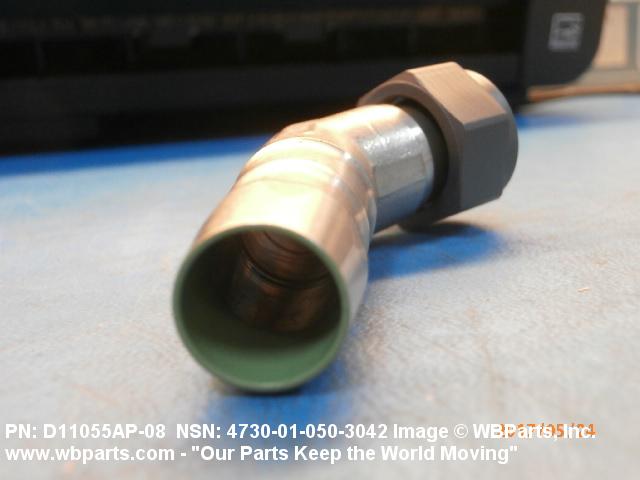

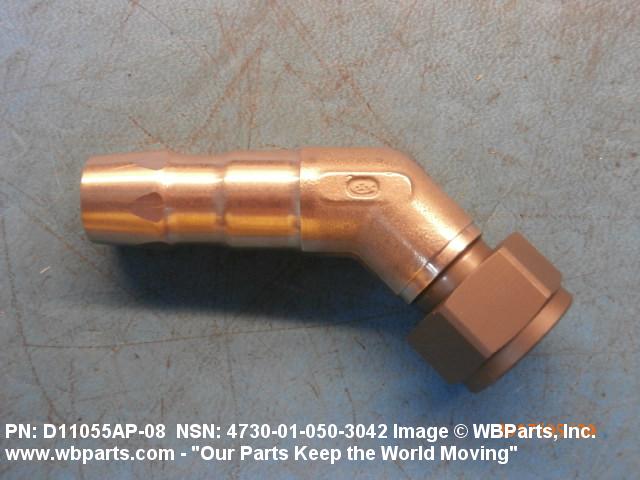

4730-01-050-3042 A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.

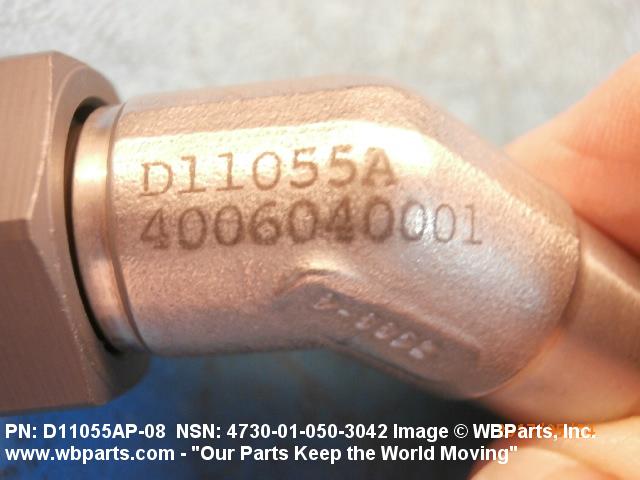

Part Alternates: C78698, C7869-8, D11055AP08, D11055AP-08, D11055T8, D11055T-8, 4730-01-050-3042, 01-050-3042, 4730010503042, 010503042
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 04 NOV 1977 | 01-050-3042 | 03771 ( ELBOW, TUBE ) |

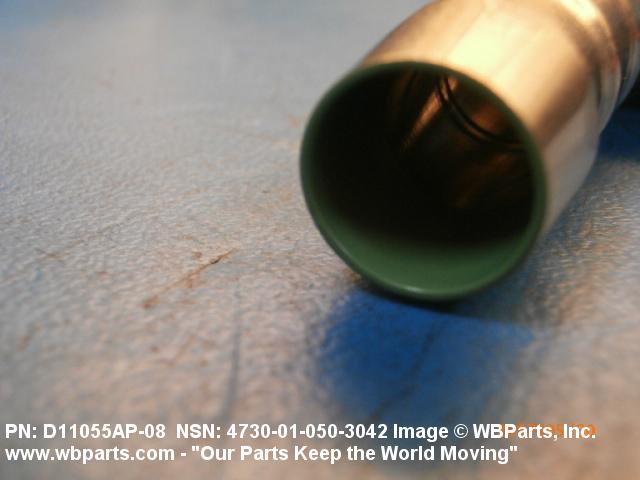

Drawings & Photos | NSN 4730-01-050-3042
Demand History | NSN 4730-01-050-3042
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| D11055AP-08 | 2024-08-225 | 74 | DIBBS |
| D11055AP-08 | 2024-08-214 | 74 | DIBBS |
| D11055AP-08 | 2024-02-51 | 35 | DIBBS |
| D11055AP-08 | 2024-02-39 | 35 | DIBBS |
| D11055AP-08 | 2022-04-111 | 34 | DIBBS |
| D11055AP-08 | 2021-11-319 | 33 | DIBBS |
| D11055AP-08 | 2020-03-86 | 106 | DIBBS |
| D11055AP08 | 2017-05-137 | 5 | United States |
| D11055AP08 | 2017-05-129 | 10 | United States |
| 4730-01-050-3042 | 2014-07-198 | 80 | DIBBS |
| 4730-01-050-3042 | 2014-07-187 | 80 | DIBBS |
| 4730-01-050-3042 | 2010-02-36 | 23 | DIBBS |
| 4730-01-050-3042 | 2009-10-292 | 149 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-050-3042
Related Products | NSN 4730-01-050-3042
Technical Data | NSN 4730-01-050-3042
| Characteristic | Specifications |
|---|---|
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5656 ASSN STD SINGLE MATERIAL RESPONSE BODY AMS4939 ASSN STD SINGLE MATERIAL RESPONSE NUT |

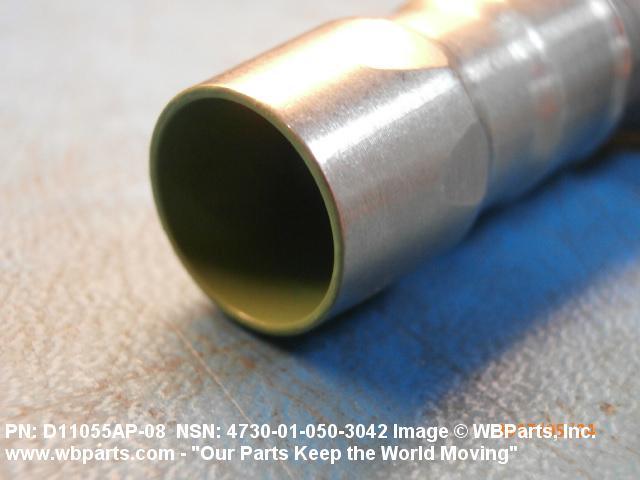

| CONNECTION TYPE | UNTHREADED INTERNAL TUBE 2ND END |
| THREAD SERIES DESIGNATOR | UNJS 1ST END |

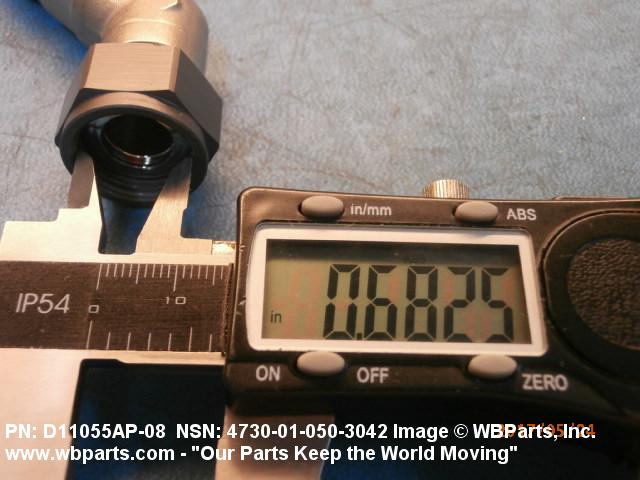

| NOMINAL THREAD SIZE | 0.719 INCHES 1ST END |
| THREAD QUANTITY PER INCH | 20 1ST END |
| THREAD CLASS | 3B 1ST END |

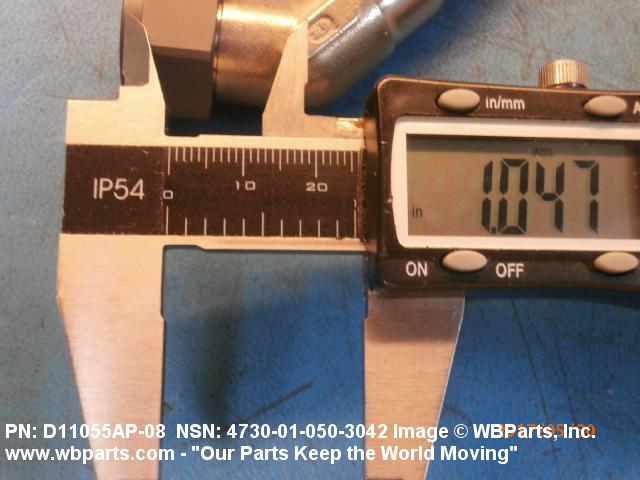

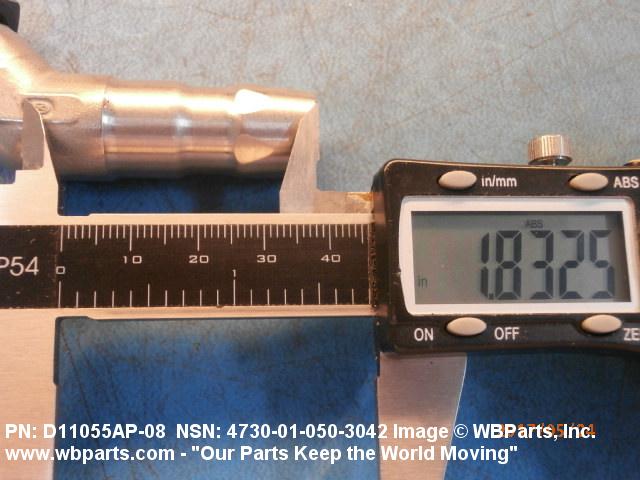

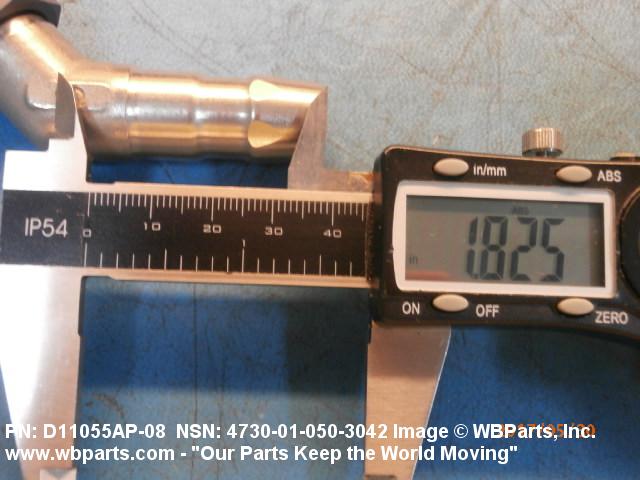

| LEG LENGTH | 1.050 INCHES NOMINAL 1ST END 1.827 INCHES NOMINAL 2ND END |
| FLOW ANGLE | 45.0 DEGREES |
Restrictions/Controls & Freight Information | NSN 4730-01-050-3042
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
