Product Details | PIPE FLANGE

4730-01-050-1654 An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified).

Part Alternates: ANSI B16.5 CL1500 SW 1/4IN, ANSI B16.5 CL1500 SW 1/4INS1, ANSIB165CL1500SW14IN, ANSIB165CL1500SW14INS1, 4730-01-050-1654, 01-050-1654, 4730010501654, 010501654

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG) NSN Assign. NIIN
47 01 NOV 1977 01-050-1654

Drawings & Photos | NSN 4730-01-050-1654


Cross Reference | NSN 4730-01-050-1654

Part Number Cage Code Manufacturer
ANSI B16.5 CL1500 SW 1/4IN 80204 AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
ANSI B16.5 CL1500 SW 1/4INS1 03950 NAVAL INVENTORY CONTROL POINT MECHANICSBURG

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4730-01-050-1654

Technical Data | NSN 4730-01-050-1654

Characteristic Specifications
MATERIAL STEEL
MATERIAL DOCUMENT AND CLASSIFICATION ASTM-A182,GRADE F-11 ASSN STD SINGLE MATERIAL RESPONSE

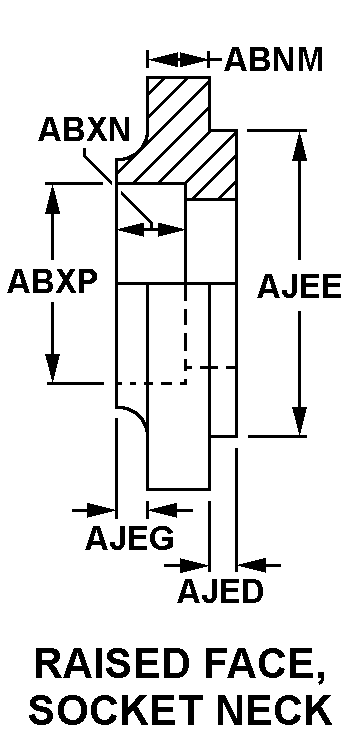

FLANGE SECTION STYLE 18 RAISED FACE, SOCKET NECK
NOMINAL PIPE SIZE FOR WHICH DESIGNED 0.250 INCHES
DEPARTURE FROM CITED DOCUMENT QUALITY CONTROLLED IN ACCORDANCE WITH NAVSUP CONTROL INSTRUCTIONS FOR SURF LEVEL 1 ITEMS
