NSN 4730-01-049-0805 C5196182, C5-19-6182, 01-049-0805
Product Details | AIR DUCT COUPLING
4730-01-049-0805
Part Alternates: C5196182, C5-19-6182, 4730-01-049-0805, 01-049-0805, 4730010490805, 010490805
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 10 OCT 1977 | 01-049-0805 | 77777 ( ) |

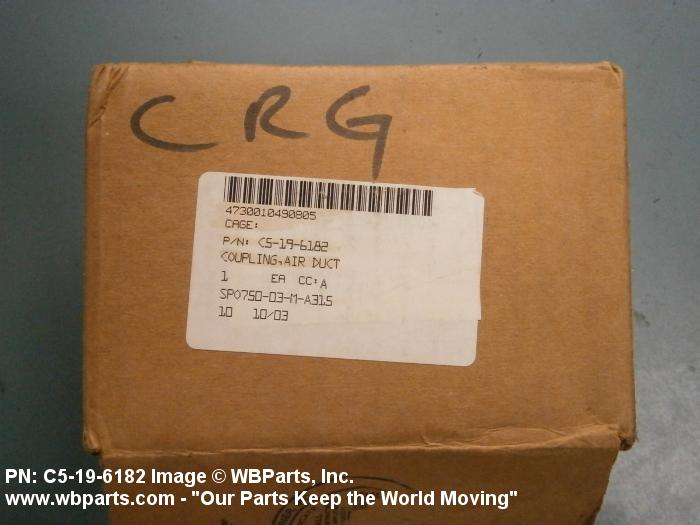

Drawings & Photos | NSN 4730-01-049-0805
Demand History | NSN 4730-01-049-0805
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-049-0805 | 2023-04-120 | 40 | DIBBS |
| 4730-01-049-0805 | 2021-05-137 | 46 | DIBBS |
| 4730-01-049-0805 | 2021-04-115 | 46 | DIBBS |
| 4730-01-049-0805 | 2014-01-13 | 91 | DIBBS |
| 4730-01-049-0805 | 2013-06-176 | 1 | United States |
| 4730-01-049-0805 | 2013-06-176 | 120 | DIBBS |
| 4730-01-049-0805 | 2012-10-279 | 176 | DIBBS |
| 4730-01-049-0805 | 2012-07-187 | 208 | DIBBS |
| 4730-01-049-0805 | 2011-11-312 | 105 | DIBBS |
| 4730-01-049-0805 | 2011-11-312 | 252 | DIBBS |
| 4730-01-049-0805 | 2010-11-326 | 213 | DIBBS |
| 4730-01-049-0805 | 2009-12-348 | 245 | DIBBS |
Cross Reference | NSN 4730-01-049-0805
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C5-19-6182 | 81361 | EDGEWOOD CHEMICAL BIOLOGICAL CENTER ECBC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-01-049-0805
Related Products | NSN 4730-01-049-0805
Technical Data | NSN 4730-01-049-0805
| Characteristic | Specifications |
|---|---|

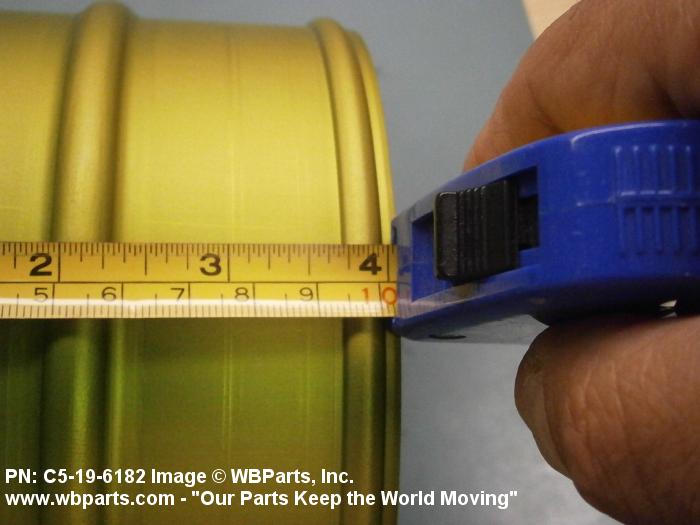

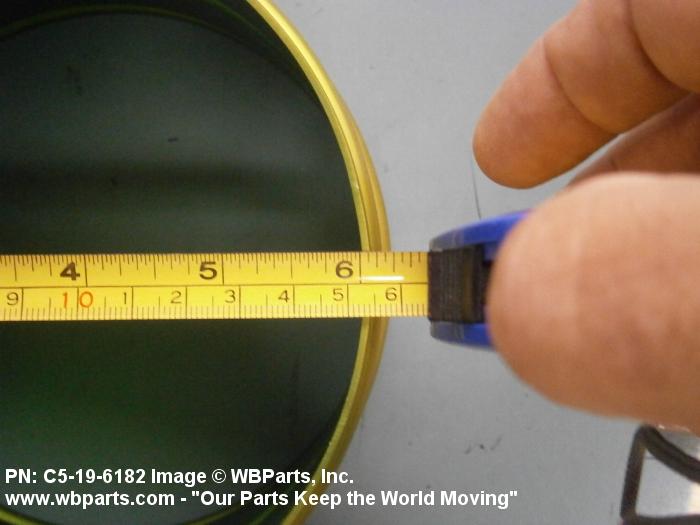

| GENERAL CHARACTERISTICS ITEM DESCRIPTION | AL ALY TUBING(6063-76),4 IN.LONG,6 IN.OUTSIDE DIA.,.058 IN.WALL THK,2 BEADS 1 EA END PER MS33660-96 6.25 IN OVER ALL DIA.,1 CENTER OUTSIDE RIDGE 6.360 OVER ALL DIA.,SURFACE TREATMENT FINISH ANODIC FILM SULFURIC ACID TYPE 2 CLASS 2 OLIVE DRAB |
| MANUFACTURERS CODE | 81361 |
| DESIGN CONTROL REFERENCE | C5-19-6182 |
Restrictions/Controls & Freight Information | NSN 4730-01-049-0805
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-049-0805
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
